Here you will find all available parts and drawings of the 'Bosch 3601M45000 ( GTS254 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

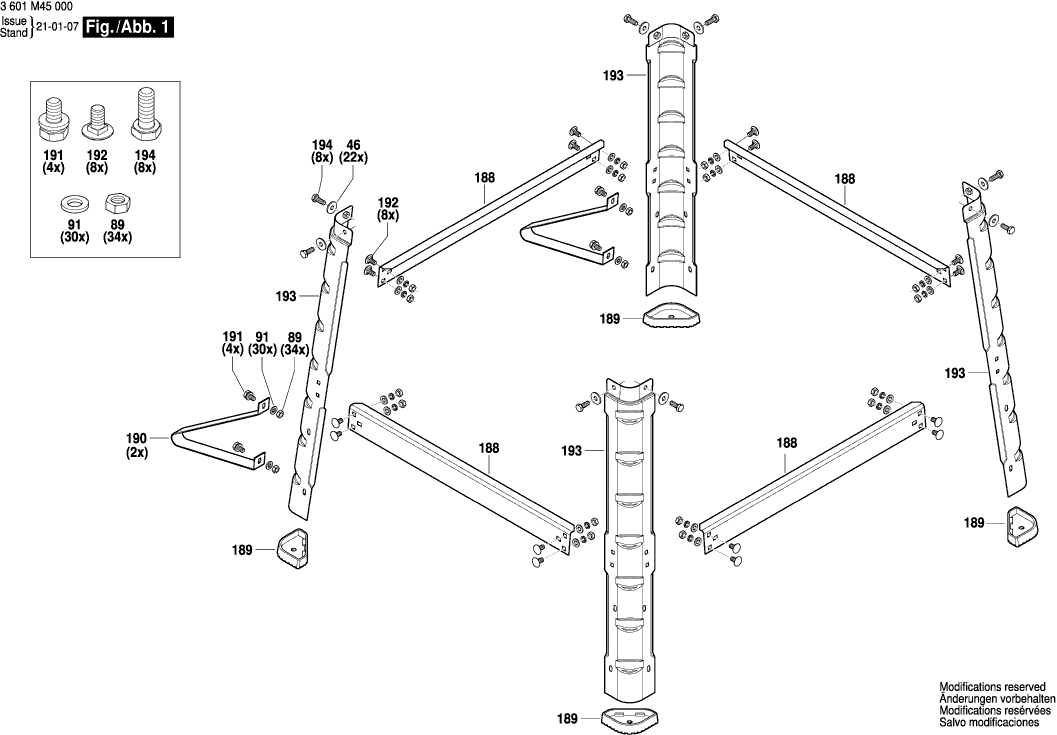

Technical drawing of model Bosch 3601M45000 ( GTS254 )

Spare parts list of model Bosch 3601M45000 ( GTS254 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field
2 160422058V 26.84 32.48
Switch
4 160720037L 12.41 15.02
Power supply cord CN
5 1619PB6263 8.45 10.22
Grommet
6 160070305B 0.83 1.00
Clamp
7 1600A022BY 0.83 1.00
Nameplate
8 160111A8G9 1.94 2.35
Sticker
9 160111C3WM 1.94 2.35
Suppression Capacitor
12 1619PB6256 1.70 2.06
groove ball bearing
13 160090009G 4.10 4.96
Screw
19 160343008V 0.83 1.00
Nut
23 1600A022CF 0.83 1.00
Plug
27 1600A022DZ 0.83 1.00
End stop
28 1600A022EG 5.83 7.05
Bolt
32 1600A022CM 0.83 1.00
Plug
33 1600A022E0 0.83 1.00
Knob
34 1600A022C0 0.83 1.00
Screw
35 160343008W 0.83 1.00
Locking Pin
43 1600A022BT 0.83 1.00
Clamping Lever
44 1600A022FM 1.18 1.43
Wheel
45 1600A022FN 0.83 1.00
Gasket
46 1600A022CC 0.83 1.00
Screw
47 160343009P 0.83 1.00
Bracket
48 1600A022ES 1.18 1.43
Screw
49 160343008Y 0.83 1.00
Plate
50 1600A022DV 0.83 1.00
Screw
51 1600A022C9 0.83 1.00
Locking Lever
54 1600A022CX 1.94 2.35
Guard
55 1600A022CY 4.10 4.96
Riving Knife
57 1600A022F1 5.33 6.45
Bolt
58 1600A022CN 0.83 1.00
Stop Plate
67 1600A022DM 0.83 1.00
Stop Plate
68 1600A022DN 0.83 1.00
Insert
69 1619PB7208 6.54 7.91
Clip
70 1600A022F2 1.70 2.06
Screw
71 160343008Z 0.83 1.00
Cover
72 16055002HL 0.83 1.00
Table top
73 1600A022F5 10.73 12.98
Base
74 1600A022ET 4.10 4.96
Screw
75 1603430090 0.83 1.00
Plug
76 1600A022E1 0.83 1.00
Screw
77 1603430091 0.83 1.00
Table top
78 1600A022F6 49.56 59.97
Handle
79 1600A022ED 0.83 1.00
Seat
80 1600A022DD 2.71 3.28
Screw
81 1603430092 0.83 1.00
Seat
82 1600A022DE 0.83 1.00
Screw
83 1603430093 0.83 1.00
Torsion Spring
84 1600A022C3 0.83 1.00
Guard
85 1600A022CZ 2.71 3.28
Guard
86 1600A022D0 0.83 1.00
Shim
87 1600A022F7 0.83 1.00
Seat
88 1600A022DF 4.10 4.96
Nut
89 1600A022CG 0.83 1.00
Spring Washer
90 160015003M 0.83 1.00
Washer
91 1600A022BM 0.83 1.00
Scale Wheel
92 1600A022F8 0.83 1.00
Indicator
93 1600A022F9 0.83 1.00
mounting plate
94 1600A022DP 0.83 1.00
Bolt
95 1600A022CP 0.83 1.00
Plug
96 1600A022E2 0.83 1.00
Scale
97 1600A022EP 1.18 1.43
Base
98 1600A022EU 10.73 12.98
Scale
99 1600A022ER 0.83 1.00
Plug
100 1600A022E3 0.83 1.00
Gasket
101 1600A022CD 0.83 1.00
Cover
102 16055002HM 6.54 7.91
Screw
103 1603430094 1.18 1.43
Flange
105 1600A022FA 1.18 1.43
Flange
107 1619PB6279 2.71 3.28
Plate
108 1600A022DY 1.18 1.43
Screw
109 1603430095 0.83 1.00
Woodruff Key
112 1600A022FP 0.83 1.00
Output Shaft
113 1600A022FR 3.31 4.01
Screw
114 160343009R 0.83 1.00
Crown Gear
115 1600A022BL 11.88 14.37
Riving Knife
116 1600A022BK 1.18 1.43
Circlip
117 1600A022F4 0.83 1.00
Screw
119 1603430096 0.83 1.00
Seat
120 1600A022DG 4.10 4.96
pad
121 1600A022FS 0.83 1.00
Seat
122 1600A022DH 1.94 2.35
Plate
123 1600A022DU 13.93 16.86
Nut
124 1600A022CL 1.18 1.43
Screw
126 1603430097 0.83 1.00
Shroud
127 1600A022FT 1.18 1.43
Shroud
127 1619PB7258 1.10 1.33
Screw
128 1603430098 0.83 1.00
Washer
129 1600A022FU 0.83 1.00
Cap
130 1600A022E8 0.83 1.00
Cover
131 16055002HN 1.18 1.43
Connecting Wire
132 1600A022EL 1.18 1.43
Washer
133 1600A022BN 0.83 1.00
Screw
134 1603430099 0.83 1.00
Sleeve
135 1600A022EA 0.83 1.00
Rod
136 1600A022D8 4.10 4.96
Bevel Gear
137 16063332FF 0.83 1.00
Screw
138 160343009A 0.83 1.00
Sleeve
139 1600A022EB 0.83 1.00
Washer
140 1600A022BP 0.83 1.00
Equipment Holder
141 1600A022FY 1.18 1.43
Seat
142 1600A022DJ 0.83 1.00
Body
143 1600A022FZ 36.85 44.59
Cable
144 160440001P 0.83 1.00
Protection
145 1600A022G5 2.71 3.28
Screw
146 160343009B 0.83 1.00
Bracket
147 1600A022FD 0.83 1.00
Seat
148 1600A022DK 2.24 2.71
Switch Cover
149 1600A022D6 0.83 1.00
Pin
151 1600A022BW 0.83 1.00
Switch Spring
152 1600A022C4 0.83 1.00
Trigger
153 1600A022EZ 0.83 1.00
Screw
154 160343009C 0.83 1.00
Plate
155 1600A022DT 5.33 6.45
Nut
156 1600A022CH 0.83 1.00
Nut
157 1600A022CJ 0.83 1.00
Cap
158 1600A022E9 0.83 1.00
Handle
159 160513219G 0.83 1.00
Screw
160 160343009D 0.83 1.00
Wheel
161 1600A022FE 1.18 1.43
Washer
162 1600A022BR 0.83 1.00
Spring
163 1600A022C7 0.83 1.00
Lever
164 1600A022FF 1.18 1.43
Screw
165 160343009E 0.83 1.00
Nut
166 1600A022CK 1.18 1.43
Washer
167 1600A022BS 0.83 1.00
Pointer
168 1600A022D1 0.83 1.00
Shaft
169 1600A022FG 1.70 2.06
Screw
170 160343009F 0.83 1.00
Rod
171 1600A022DA 2.71 3.28
Sleeve
172 1600A022EC 0.83 1.00
Plate
173 1600A022DS 1.70 2.06
Seat
174 1600A022DL 1.94 2.35
Screw
175 160343009G 0.83 1.00
Plug
176 1600A022E4 0.83 1.00
Plate
177 1600A025F9 5.83 7.05
Plug
178 1600A022E5 0.83 1.00
Screw
179 160343009H 0.83 1.00
Frame
188 1600A022EX 10.73 12.98
Supporting foot
189 1600A022EY 0.83 1.00
Support
190 1600A022FK 4.10 4.96
Screw
191 160343009L 0.83 1.00
Screw
192 160343009M 0.83 1.00
Table Leg
193 1600A022FV 23.75 28.74
Screw
194 160343009N 0.83 1.00
Push rod
195 1600A022D7 1.18 1.43
Gripping Wedge
196 1600A022FW 1.18 1.43
Assembly Wrench
197 1600A022FX 1.18 1.43
Screw
198 16034300A7 0.83 1.00
Spring
199 1600A025FA 0.83 1.00
Inductor
200 1619PB6257 1.70 2.06
Tube
201 1600A025FB 1.18 1.43
Motor Housing
801 1619PB6273 11.88 14.37
Armature
803 1619PB6274 55.25 66.85
Armature
803 1619PB7256 52.03 62.96
Carbon-Brush Set
810 1619PB6280 5.33 6.45
Bearing cover
811 1619PB6276 4.10 4.96
Gear Housing
825 1619PB7259 13.93 16.86
No longer available, no replacement
830 1619PB6271
Pawl
861 1619PB6270 5.83 7.05
Mitre Fence
881 1619PB6272 9.53 11.53
