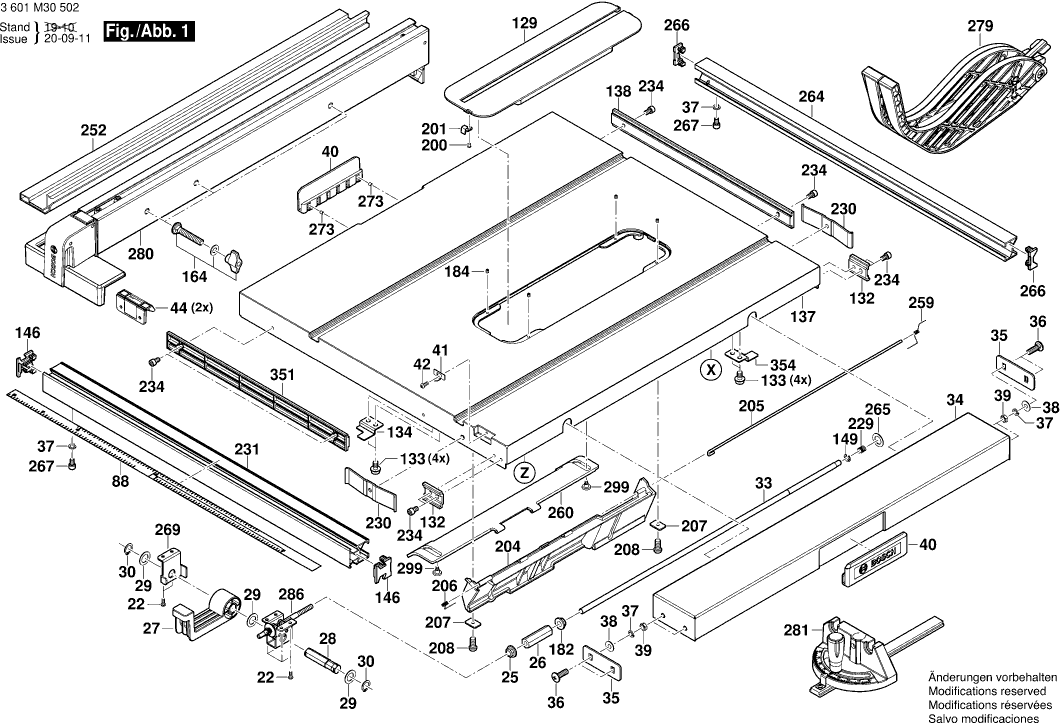

Technical drawing of model Bosch 3601M30502 (GTS10J)
Spare parts list of model Bosch 3601M30502 (GTS10J)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB2487 | 18.94 | 22.92 | |
| Field | ||||
| 2 | 1609203K86 | 64.67 | 78.25 | |
| Field 230-240 V | ||||
| 2 | 1609B07856 | 64.67 | 78.25 | |
| Armature | ||||
| 3 | 1619P03278 | 126.98 | 153.65 | |
| Switch | ||||
| 4 | 2610016997 | 39.14 | 47.36 | |
| Power supply cord | ||||
| 5 | 2610016998 | 31.42 | 38.02 | |
| Cable Clip | ||||
| 6 | 1609203K96 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2610014693 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 10 | 2610018332 | 21.30 | 25.77 | |
| Ball Bearing | ||||
| 13 | 2610004595 | 11.37 | 13.76 | |
| Ball Bearing | ||||
| 14 | 2610911927 | 23.90 | 28.92 | |
| No information available, not orderable | ||||
| 16 | 2610013003 | |||
| Screw | ||||
| 18 | 2610015078 | 1.00 | 1.21 | |
| Screw | ||||
| 19 | 2610017002 | 1.00 | 1.21 | |
| Screw | ||||
| 22 | 2610014697 | 1.00 | 1.21 | |
| Nut | ||||
| 25 | 2610014698 | 1.00 | 1.21 | |
| Connecting Nut | ||||
| 26 | 2610996920 | 5.81 | 7.03 | |
| Handle | ||||
| 27 | 2610014699 | 6.73 | 8.14 | |
| Cam | ||||
| 28 | 2610015000 | 10.90 | 13.19 | |
| Washer | ||||
| 29 | 2610015001 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 30 | 2610015002 | 1.00 | 1.21 | |
| Pin | ||||
| 32 | 2610017003 | 1.00 | 1.21 | |
| Rod | ||||
| 33 | 2610017004 | 7.46 | 9.03 | |
| Sliding Table | ||||
| 34 | 1600A01D8S | 27.81 | 33.65 | |
| Fixing plate | ||||
| 35 | 1600A01D8T | 1.49 | 1.80 | |
| Collar bolt | ||||
| 36 | 2610910015 | 2.86 | 3.46 | |
| Spring Washer | ||||
| 37 | 2610355325 | 1.00 | 1.21 | |
| Washer | ||||
| 38 | 2610910013 | 2.08 | 2.52 | |
| Nut | ||||
| 39 | 2610015008 | 1.00 | 1.21 | |
| Handle | ||||
| 40 | 2610015009 | 5.81 | 7.03 | |
| Pointer | ||||
| 41 | 2610015010 | 1.49 | 1.80 | |
| Screw | ||||
| 42 | 2610950077 | 1.00 | 1.21 | |
| Pad | ||||
| 44 | 2610023173 | 2.08 | 2.52 | |
| Screw | ||||
| 72 | 2610950069 | 1.00 | 1.21 | |
| Washer | ||||
| 73 | 2610015011 | 1.00 | 1.21 | |
| Bolt | ||||
| 74 | 2610015012 | 1.00 | 1.21 | |
| Washer | ||||
| 75 | 2610925438 | 1.00 | 1.21 | |
| Supporting foot | ||||
| 76 | 2610015014 | 4.94 | 5.98 | |
| Screw | ||||
| 77 | 2610015015 | 1.00 | 1.21 | |
| Handle | ||||
| 78 | 2610015016 | 11.37 | 13.76 | |
| Holding Plate | ||||
| 79 | 2610015017 | 12.82 | 15.51 | |
| Screw | ||||
| 80 | 2610015018 | 1.00 | 1.21 | |
| Key | ||||
| 81 | 2610015019 | 8.35 | 10.10 | |
| Bearing cover | ||||
| 82 | 2610911566 | 2.86 | 3.46 | |
| Nut | ||||
| 83 | 2610015021 | 1.49 | 1.80 | |
| Workpiece Pusher | ||||
| 84 | 2610015022 | 6.73 | 8.14 | |
| Support bracket | ||||
| 86 | 2610017007 | 2.40 | 2.90 | |
| Screw | ||||
| 87 | 2610010404 | 1.00 | 1.21 | |
| Tape Measure | ||||
| 88 | 1600A01D8X | 2.08 | 2.52 | |
| Screw | ||||
| 102 | 1609902670 | 1.00 | 1.21 | |
| Nut | ||||
| 103 | 2610327868 | 1.00 | 1.21 | |
| Screw | ||||
| 109 | 2610998587 | 1.00 | 1.21 | |
| End cap | ||||
| 112 | 2610017013 | 8.35 | 10.10 | |
| Connector | ||||
| 113 | 2610911933 | 1.00 | 1.21 | |
| Screw NEU | ||||
| 117 | 2610018983 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 118 | 2610950042 | 1.00 | 1.21 | |
| Cover | ||||
| 119 | 1600A01D91 | 16.79 | 20.32 | |
| Screw | ||||
| 120 | 2610950044 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 121 | 2610996949 | 13.13 | 15.89 | |
| Filter | ||||
| 122 | 2610017015 | 11.37 | 13.76 | |
| Spring retaining ring | ||||
| 123 | 2610997281 | 1.00 | 1.21 | |
| Screw | ||||
| 124 | 2610998572 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 125 | 2610996875 | 1.49 | 1.80 | |
| Locking Lever | ||||
| 126 | 2610996874 | 10.90 | 13.19 | |
| Shoulder Screw | ||||
| 127 | 2610996876 | 1.49 | 1.80 | |
| Screw | ||||
| 128 | 2610998588 | 1.49 | 1.80 | |
| Insert | ||||
| 129 | 1600A01D8R | 23.90 | 28.92 | |
| Gear Housing | ||||
| 130 | 2610017017 | 64.67 | 78.25 | |
| Retaining ring | ||||
| 131 | 2610937293 | 1.00 | 1.21 | |
| Sliding Plate | ||||
| 132 | 1600A00726 | 1.00 | 1.21 | |
| Screw | ||||
| 133 | 2610950108 | 1.00 | 1.21 | |
| Stop block | ||||
| 134 | 1600A01D8Y | 1.00 | 1.21 | |
| Retaining clip | ||||
| 136 | 2610017008 | 3.44 | 4.16 | |
| Table | ||||
| 137 | 1600A01D8P | 219.55 | 265.66 | |
| Mounting Rail | ||||
| 138 | 1600A00724 | 2.08 | 2.52 | |
| Set screw | ||||
| 140 | 1609902054 | 1.00 | 1.21 | |
| Screw | ||||
| 141 | 2610911929 | 1.00 | 1.21 | |
| Self-locking nut | ||||
| 142 | 2610911901 | 1.49 | 1.80 | |
| Insert | ||||
| 143 | 2610911569 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 144 | 2610996948 | 1.49 | 1.80 | |
| Screw | ||||
| 145 | 2610950071 | 1.00 | 1.21 | |
| End cap | ||||
| 146 | 2610015030 | 1.49 | 1.80 | |
| brush holder assembly | ||||
| 147 | 1609B07133 | 9.67 | 11.70 | |
| Spring retaining ring | ||||
| 149 | 2610015031 | 1.00 | 1.21 | |
| Bearing Sleeve | ||||
| 150 | 2610996932 | 2.40 | 2.90 | |
| Vacuum Connection | ||||
| 151 | 2610017001 | 5.81 | 7.03 | |
| Ball Bearing | ||||
| 152 | 2610997210 | 13.13 | 15.89 | |
| Spring retaining ring | ||||
| 153 | 2610997282 | 1.00 | 1.21 | |
| Spindle | ||||
| 154 | 2610017021 | 31.42 | 38.02 | |
| Woodruff Key | ||||
| 155 | 2610012984 | 1.00 | 1.21 | |
| Toothed Gear | ||||
| 156 | 2610997208 | 39.14 | 47.36 | |
| Bushing | ||||
| 157 | 2610017018 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 158 | 2610998573 | 1.00 | 1.21 | |
| Set screw | ||||
| 159 | 2610950427 | 1.00 | 1.21 | |
| Chain | ||||
| 160 | 2610017022 | 1.00 | 1.21 | |
| Mounting Bracket | ||||
| 161 | 2610950126 | 8.35 | 10.10 | |
| Bushing | ||||
| 162 | 2610950070 | 1.00 | 1.21 | |
| Support bracket | ||||
| 163 | 2610015035 | 8.35 | 10.10 | |
| Fastening parts kit | ||||
| 164 | 2610017023 | 13.13 | 15.89 | |
| Holding Plate | ||||
| 165 | 2610017024 | 80.26 | 97.11 | |
| Rod | ||||
| 166 | 2610017025 | 12.82 | 15.51 | |
| Bolt | ||||
| 167 | 2610015038 | 1.49 | 1.80 | |
| Washer | ||||
| 168 | 2610015039 | 1.00 | 1.21 | |
| Support Plate | ||||
| 169 | 2610015040 | 4.18 | 5.06 | |
| Screw | ||||
| 170 | 2610950055 | 1.00 | 1.21 | |
| Rod | ||||
| 171 | 2610017026 | 8.35 | 10.10 | |
| Bevel Gear | ||||
| 172 | 2610015042 | 2.40 | 2.90 | |
| Washer | ||||
| 173 | 2610013162 | 1.00 | 1.21 | |
| Bushing | ||||
| 174 | 2610015043 | 1.00 | 1.21 | |
| Washer | ||||
| 175 | 2610015044 | 1.00 | 1.21 | |
| Screw | ||||
| 177 | 2610015045 | 1.00 | 1.21 | |
| Shaft | ||||
| 178 | 2610017027 | 8.35 | 10.10 | |
| Support Plate | ||||
| 179 | 2610015047 | 4.94 | 5.98 | |
| Bushing | ||||
| 180 | 2610015048 | 1.00 | 1.21 | |
| Washer | ||||
| 181 | 2610016557 | 1.00 | 1.21 | |
| Nut | ||||
| 182 | 2610016558 | 1.00 | 1.21 | |
| Bushing | ||||
| 183 | 2610015049 | 7.46 | 9.03 | |
| Set screw | ||||
| 184 | 2610013053 | 1.00 | 1.21 | |
| Screw | ||||
| 185 | 2610016559 | 1.00 | 1.21 | |
| Cover | ||||
| 186 | 2610015050 | 12.82 | 15.51 | |
| Screw | ||||
| 187 | 2610950049 | 1.00 | 1.21 | |
| Electronics Module | ||||
| 188 | 2610017037 | 64.67 | 78.25 | |
| Dust-Cover Holder | ||||
| 189 | 2610015051 | 9.67 | 11.70 | |
| Screw | ||||
| 190 | 2610015052 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 191 | 2610015053 | 1.00 | 1.21 | |
| Retaining clip | ||||
| 192 | 2610017028 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 193 | 2610016560 | 1.32 | 1.60 | |
| Screw | ||||
| 194 | 2610016561 | 1.00 | 1.21 | |
| Nut | ||||
| 195 | 2610925187 | 1.00 | 1.21 | |
| Guard Plate | ||||
| 196 | 2610015055 | 1.49 | 1.80 | |
| Screw | ||||
| 197 | 2610950132 | 1.00 | 1.21 | |
| Plate | ||||
| 198 | 2610015073 | 8.35 | 10.10 | |
| Screw | ||||
| 200 | 2610017029 | 1.00 | 1.21 | |
| Spring Clip | ||||
| 201 | 2610017030 | 1.00 | 1.21 | |
| Safety Guard | ||||
| 202 | 2610017033 | 3.44 | 4.16 | |
| Screw | ||||
| 203 | 2610950439 | 1.00 | 1.21 | |
| Guard Plate | ||||
| 204 | 2610015054 | 8.35 | 10.10 | |
| Rod | ||||
| 205 | 2610016562 | 1.00 | 1.21 | |
| Contact strap | ||||
| 206 | 2610016563 | 1.00 | 1.21 | |
| Plate | ||||
| 207 | 2610923830 | 1.00 | 1.21 | |
| Screw | ||||
| 208 | 2610010404 | 1.00 | 1.21 | |
| Screw | ||||
| 209 | 2610017031 | 1.00 | 1.21 | |
| Washer | ||||
| 210 | 2610015058 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 211 | 2610911920 | 1.00 | 1.21 | |
| Wrench Socket | ||||
| 212 | 2610015059 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 213 | 2610017032 | 43.12 | 52.18 | |
| Washer | ||||
| 214 | 2610017110 | 2.08 | 2.52 | |
| Plain Washer | ||||
| 215 | 2610347092 | 1.00 | 1.21 | |
| Insulator | ||||
| 216 | 2610017046 | 3.44 | 4.16 | |
| Bushing | ||||
| 217 | 2610015061 | 2.40 | 2.90 | |
| Handle | ||||
| 218 | 2610015062 | 7.46 | 9.03 | |
| Nut | ||||
| 219 | 2610924961 | 1.00 | 1.21 | |
| Screw | ||||
| 220 | 2610015359 | 1.00 | 1.21 | |
| Cam | ||||
| 221 | 1600A00725 | 1.00 | 1.21 | |
| Pointer | ||||
| 225 | 2610015064 | 2.08 | 2.52 | |
| Screw M5x8 | ||||
| 226 | 2610015065 | 1.00 | 1.21 | |
| Contact strap | ||||
| 227 | 2610013054 | 1.00 | 1.21 | |
| Switch Housing | ||||
| 228 | 2610015066 | 5.81 | 7.03 | |
| Spring | ||||
| 229 | 2610015067 | 1.00 | 1.21 | |
| Fixing Plate | ||||
| 230 | 2610996912 | 5.81 | 7.03 | |
| Rail | ||||
| 231 | 1600A01D8V | 27.81 | 33.65 | |
| Screw | ||||
| 234 | 2610951945 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 235 | 1609203K93 | 11.37 | 13.76 | |
| Clamping Flange | ||||
| 237 | 2610950046 | 11.37 | 13.76 | |
| Nut | ||||
| 238 | 2610358858 | 2.40 | 2.90 | |
| Handwheel | ||||
| 239 | 2610015069 | 9.67 | 11.70 | |
| Handle | ||||
| 242 | 2610950059 | 1.00 | 1.21 | |
| Screw | ||||
| 243 | 2610950060 | 1.00 | 1.21 | |
| Washer | ||||
| 244 | 2610950389 | 1.00 | 1.21 | |
| Safety Cover | ||||
| 248 | 2610017034 | 3.44 | 4.16 | |
| Mitre Fence | ||||
| 252 | 2610017035 | 23.90 | 28.92 | |
| Rod | ||||
| 253 | 2610017036 | 1.49 | 1.80 | |
| Screw | ||||
| 254 | 2610017052 | 1.00 | 1.21 | |
| Screw | ||||
| 256 | 2610998580 | 1.00 | 1.21 | |
| Nut | ||||
| 257 | 2610017038 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 258 | 2610015070 | |||
| Contact strap | ||||
| 259 | 2610016565 | 1.00 | 1.21 | |
| Safety Cover | ||||
| 260 | 2610017039 | 10.90 | 13.19 | |
| Switch Housing | ||||
| 261 | 2610015071 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 262 | 2610017040 | 6.73 | 8.14 | |
| Rail | ||||
| 264 | 1600A01D8U | 23.90 | 28.92 | |
| Washer | ||||
| 265 | 2610015075 | 1.00 | 1.21 | |
| Device cap | ||||
| 266 | 2610015076 | 1.00 | 1.21 | |
| Bolt | ||||
| 267 | 2610950134 | 1.00 | 1.21 | |
| Stop Block | ||||
| 269 | 1600A01D8Z | 1.49 | 1.80 | |
| Screw | ||||
| 270 | 2610950117 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 271 | 2610013365 | 1.00 | 1.21 | |
| Screw | ||||
| 273 | 2610015080 | 1.00 | 1.21 | |
| Washer | ||||
| 274 | 2610950135 | 1.00 | 1.21 | |
| Washer | ||||
| 275 | 2610016566 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 279 | 1600A01R18 | 27.81 | 33.65 | |
| Mitre Fence | ||||
| 280 | 2610017047 | 122.80 | 148.59 | |
| Mitre Gauge | ||||
| 281 | 2610015507 | 27.81 | 33.65 | |
| Hexagon Socket Wrench | ||||
| 283 | 2610016567 | 1.49 | 1.80 | |
| Serrated Lock-Washer | ||||
| 285 | 2610023174 | 1.00 | 1.21 | |
| Lock | ||||
| 286 | 2610015093 | 34.82 | 42.13 | |
| Frame | ||||
| 287 | 1600A01D8N | 173.95 | 210.48 | |
| Riving Knife | ||||
| 288 | 1600A01D8L | 31.42 | 38.02 | |
| Rod | ||||
| 289 | 2610017050 | 1.00 | 1.21 | |
| Washer | ||||
| 291 | 2610017051 | 1.00 | 1.21 | |
| Washer | ||||
| 292 | 2610950109 | 1.00 | 1.21 | |
| Screw | ||||
| 293 | 2610950108 | 1.00 | 1.21 | |
| Holder | ||||
| 294 | 2610017053 | 9.67 | 11.70 | |
| Holder | ||||
| 295 | 2610017054 | 9.67 | 11.70 | |
| Rod | ||||
| 298 | 2610017056 | 1.49 | 1.80 | |
| Screw | ||||
| 299 | 2610017057 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 300 | 2610017058 | 1.00 | 1.21 | |
| Safety Guard | ||||
| 302 | 2610017060 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 303 | 1609203K96 | 1.00 | 1.21 | |
| Baffle | ||||
| 305 | 2610020858 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 343 | 2610020856 | 1.00 | 1.21 | |
| Foot | ||||
| 346 | 1600A01D90 | 2.86 | 3.46 | |
| Holder | ||||
| 347 | 1600A01B74 | 2.08 | 2.52 | |
| Holder | ||||
| 347 | 1600A01B75 | 2.08 | 2.52 | |
| Holder | ||||
| 348 | 1600A01B75 | 2.08 | 2.52 | |
| Holder | ||||
| 348 | 1600A01B74 | 2.08 | 2.52 | |
| Hex Nut | ||||
| 349 | 2915011011 | 1.49 | 1.80 | |
| Cap Screw | ||||
| 350 | 1600A01TJ5 | 1.00 | 1.21 | |
| bushing | ||||
| 351 | 1600A01D8W | 2.86 | 3.46 | |
| Stop block | ||||
| 354 | 1600A01S0T | 1.49 | 1.80 | |
| Nameplate | ||||
| 808 | 160111A6WG | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 815 | 1609B08417 | |||
| brush holder assembly | ||||
| 816 | 1609B07133 | 9.67 | 11.70 | |
