Here you will find all available parts and drawings of the 'Bosch 3601GD4000 (GTR55-225)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

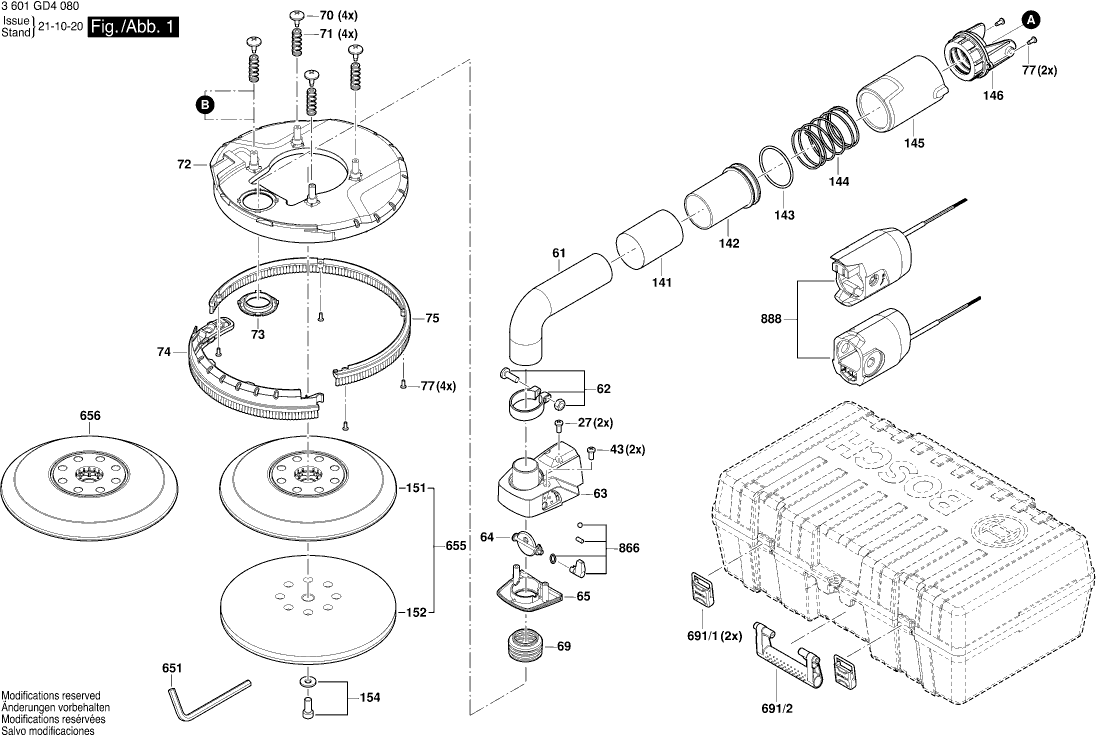

Technical drawing of model Bosch 3601GD4000 (GTR55-225)
Spare parts list of model Bosch 3601GD4000 (GTR55-225)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB5941 | 4.94 | 5.98 | |
| Field 220-240V | ||||
| 2 | 1619PB5942 | 16.79 | 20.32 | |
| Armature 220-240V | ||||
| 3 | 1619PB5943 | 27.81 | 33.65 | |
| Switch | ||||
| 4 | 1619PB5944 | 4.94 | 5.98 | |
| Power supply cord | ||||
| 5 | 160111AA6Z | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 1619PB5946 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1619PB6021 | 1.00 | 1.21 | |
| Nameplate EU 220V | ||||
| 8 | 1619PB8626 | 2.40 | 2.90 | |
| Manufacturer's nameplate GTR 550 | ||||
| 9 | 1619PB5948 | 2.40 | 2.90 | |
| groove ball bearing 607-2RS | ||||
| 13 | 1619PB5950 | 7.46 | 9.03 | |
| Fastening Clamp | ||||
| 19 | 1619PB5952 | 1.49 | 1.80 | |
| Tapping Screw ST4x45 | ||||
| 21 | 1619PB6082 | 1.00 | 1.21 | |
| Bearing Flange | ||||
| 22 | 1619PB5953 | 12.82 | 15.51 | |
| Magnet | ||||
| 23 | 1619PB5954 | 9.67 | 11.70 | |
| Mounting Sleeve | ||||
| 24 | 1619PB5955 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 25 | 1619PB5956 | 1.00 | 1.21 | |
| Grommet | ||||
| 26 | 1619PB5957 | 1.00 | 1.21 | |
| Tapping Screw ST4x16 | ||||
| 27 | 1619PB5958 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 28 | 1619PB5959 | 2.40 | 2.90 | |
| Electronic Assembly 220-240V | ||||
| 29 | 1619PB5960 | 23.90 | 28.92 | |
| Workpiece support | ||||
| 31 | 1619PB5962 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 32 | 1619PB5963 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 33 | 1619PB5964 | 1.49 | 1.80 | |
| Needle bearing HK1012 | ||||
| 34 | 1619PB5965 | 9.67 | 11.70 | |
| Gear Housing | ||||
| 35 | 1619PB5966 | 11.37 | 13.76 | |
| groove ball bearing 606-2Z | ||||
| 36 | 1619PB5967 | 3.44 | 4.16 | |
| Retaining ring | ||||
| 37 | 1619PB5968 | 1.00 | 1.21 | |
| Crown Gear | ||||
| 38 | 1619PB5969 | 8.35 | 10.10 | |
| Transmission Shaft | ||||
| 39 | 1619PB5970 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 40 | 1619PB5971 | 1.00 | 1.21 | |
| groove ball bearing 699 | ||||
| 41 | 1619PB5972 | 8.35 | 10.10 | |
| Bearing Flange | ||||
| 42 | 1619PB5973 | 2.86 | 3.46 | |
| Cross Recessed-Head Screw M4x16 | ||||
| 43 | 1619PB5974 | 1.00 | 1.21 | |
| Woodruff Key | ||||
| 44 | 1619PB5975 | 1.00 | 1.21 | |
| Retaining ring Ø10 | ||||
| 45 | 1619PB5976 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 46 | 1619PB5977 | 10.90 | 13.19 | |
| Sealing Disc | ||||
| 47 | 1619PB5978 | 1.00 | 1.21 | |
| Bearing Flange | ||||
| 48 | 1619PB5979 | 4.94 | 5.98 | |
| Sealing Plate | ||||
| 49 | 1619PB5980 | 1.49 | 1.80 | |
| Output Shaft | ||||
| 50 | 1619PB5981 | 4.18 | 5.06 | |
| groove ball bearing NSK 6900-2RS | ||||
| 51 | 1619PB5982 | 9.67 | 11.70 | |
| Retaining ring | ||||
| 52 | 1619PB5983 | 1.00 | 1.21 | |
| Dust seal | ||||
| 53 | 1619PB5984 | 1.49 | 1.80 | |
| Flat Key | ||||
| 54 | 1619PB5985 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 55 | 1619PB6017 | 1.00 | 1.21 | |
| Cross Recessed-Head Screw M4x25 | ||||
| 56 | 1619PB6018 | 1.00 | 1.21 | |
| Inductor | ||||
| 57 | 1619PB6084 | 2.08 | 2.52 | |
| Spring | ||||
| 58 | 1607000E8V | 1.00 | 1.21 | |
| Corrugated Pipe | ||||
| 61 | 1619PB5986 | 10.90 | 13.19 | |
| locking ring | ||||
| 62 | 1619PB5987 | 1.49 | 1.80 | |
| Control Housing | ||||
| 63 | 1619PB5988 | 2.40 | 2.90 | |
| Valve Insert | ||||
| 64 | 1619PB5989 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 65 | 1619PB5990 | 1.00 | 1.21 | |
| Corrugated Pipe | ||||
| 69 | 1619PB5994 | 1.49 | 1.80 | |
| Cross Recessed-Head Screw | ||||
| 70 | 1619PB5995 | 1.00 | 1.21 | |
| Spring | ||||
| 71 | 1619PB5996 | 1.00 | 1.21 | |
| Covering hood | ||||
| 72 | 1619PB5997 | 9.67 | 11.70 | |
| Pressure Plate | ||||
| 73 | 1619PB5998 | 1.00 | 1.21 | |
| Strip brush | ||||
| 74 | 1619PB5999 | 8.35 | 10.10 | |
| Strip brush | ||||
| 75 | 1619PB6000 | 11.37 | 13.76 | |
| Tapping Screw ST4x14 | ||||
| 77 | 1619PB6087 | 1.00 | 1.21 | |
| Support Frame | ||||
| 81 | 1619PB6001 | 18.94 | 22.92 | |
| Connection Cable H05RN-F, 0.75mm^2 x2 | ||||
| 82 | 1619PB6002 | 2.40 | 2.90 | |
| Aluminum Tubing | ||||
| 83 | 1619PB6003 | 7.46 | 9.03 | |
| plastic covering | ||||
| 84 | 1619PB6004 | 4.18 | 5.06 | |
| plug-in connector | ||||
| 88 | 1619PB6008 | 3.44 | 4.16 | |
| Cam | ||||
| 89 | 1619PB6009 | 3.44 | 4.16 | |
| hand lever | ||||
| 90 | 1619PB6010 | 2.08 | 2.52 | |
| Cross Recessed-Head Screw | ||||
| 91 | 1619PB6011 | 1.00 | 1.21 | |
| Mounting Bracket | ||||
| 92 | 1619PB6012 | 3.44 | 4.16 | |
| Screw | ||||
| 94 | 1619PB6083 | 1.00 | 1.21 | |
| Hook | ||||
| 95 | 1619PB6014 | 1.49 | 1.80 | |
| Connecting piece | ||||
| 96 | 1619PB6015 | 4.18 | 5.06 | |
| Countersunk-Head Screw | ||||
| 97 | 1619PB6016 | 1.00 | 1.21 | |
| Switch Button | ||||
| 101 | 1619PB6019 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 102 | 1619PB6020 | 1.49 | 1.80 | |
| Cantilever | ||||
| 104 | 1619PB6022 | 1.49 | 1.80 | |
| Handle | ||||
| 105 | 1619PB6023 | 9.67 | 11.70 | |
| Connection Cable H05RN-F, 0.75mm^2 x2 | ||||
| 106 | 1619PB6024 | 2.40 | 2.90 | |
| Speed governor 220-240V | ||||
| 107 | 1619PB6025 | 52.45 | 63.46 | |
| Flow Governor | ||||
| 109 | 1619PB6027 | 1.49 | 1.80 | |
| Intermediate housing | ||||
| 110 | 1619PB6028 | 1.49 | 1.80 | |
| Socket housing | ||||
| 111 | 1619PB6029 | 1.00 | 1.21 | |
| plastic covering | ||||
| 112 | 1619PB6030 | 1.00 | 1.21 | |
| Aluminum Tubing | ||||
| 113 | 1619PB6031 | 11.37 | 13.76 | |
| Hose Coupling | ||||
| 114 | 1619PB6032 | 2.40 | 2.90 | |
| Mounting Bracket | ||||
| 116 | 1619PB6034 | 4.94 | 5.98 | |
| Cam Shaft | ||||
| 117 | 1619PB6035 | 6.73 | 8.14 | |
| Cam | ||||
| 118 | 1619PB6036 | 4.94 | 5.98 | |
| plastic covering | ||||
| 120 | 1619PB6037 | 4.18 | 5.06 | |
| Shim ring | ||||
| 121 | 1619PB6038 | 1.00 | 1.21 | |
| Felt Pad | ||||
| 122 | 1619PB6039 | 1.00 | 1.21 | |
| Aluminum Tubing | ||||
| 123 | 1619PB6006 | 23.90 | 28.92 | |
| Connection Cable H05RN-F, 0.75mm^2 x2 | ||||
| 124 | 1619PB6007 | 2.86 | 3.46 | |
| Connection Cable PVC, 0.5mm^2, | ||||
| 125 | 1607000EH5 | 2.40 | 2.90 | |
| Rubber Buffer | ||||
| 131 | 1619PB6040 | 1.00 | 1.21 | |
| bushing | ||||
| 132 | 1619PB6041 | 1.00 | 1.21 | |
| knob sleeve | ||||
| 133 | 1619PB6042 | 4.18 | 5.06 | |
| Straight Pin | ||||
| 134 | 1619PB6043 | 1.49 | 1.80 | |
| Spring | ||||
| 135 | 1619PB6086 | 1.00 | 1.21 | |
| Switch Button | ||||
| 141 | 1619PB6044 | 5.81 | 7.03 | |
| Threaded Bushing | ||||
| 142 | 1619PB6045 | 3.44 | 4.16 | |
| Seal Ring | ||||
| 143 | 1619PB6046 | 1.00 | 1.21 | |
| Spring | ||||
| 144 | 1619PB6047 | 1.49 | 1.80 | |
| Glide Bushing | ||||
| 145 | 1619PB6048 | 1.49 | 1.80 | |
| Hose Coupling | ||||
| 146 | 1619PB6049 | 1.49 | 1.80 | |
| Corrugated Pipe | ||||
| 147 | 1619PB6050 | 10.90 | 13.19 | |
| Hose Coupling | ||||
| 148 | 1619PB6051 | 1.49 | 1.80 | |
| Backing Pad | ||||
| 151 | 1619PB6052 | 23.90 | 28.92 | |
| Intermediate Layer | ||||
| 152 | 1619PB6053 | 23.90 | 28.92 | |
| Socket head cap screw M6x14 | ||||
| 154 | 1619PB6055 | 1.00 | 1.21 | |
| Handle Bar | ||||
| 156 | 1607000E57 | 47.53 | 57.51 | |
| Nameplate EU 220V | ||||
| 161 | 1619PB8632 | 2.40 | 2.90 | |
| Manufacturer's nameplate GTR 55-225 | ||||
| 162 | 1619PB8639 | 2.40 | 2.90 | |
| Hexagon Socket Screw Key | ||||
| 651 | 1619PB6075 | 2.08 | 2.52 | |
| Rubber Backing Pad | ||||
| 655 | 1607000E5X | 34.82 | 42.13 | |
| Backing Pad | ||||
| 656 | 1619PB6056 | 18.94 | 22.92 | |
| Clip | ||||
| 657 | 1619PB6088 | 1.49 | 1.80 | |
| Vacuum Adapter | ||||
| 658 | 1607000F2K | 6.73 | 8.14 | |
| Latch | ||||
| 691/1 | 1619PB6089 | 2.40 | 2.90 | |
| Handle | ||||
| 691/2 | 1619PB6090 | 2.86 | 3.46 | |
| Carbon-Brush Set Fuji GPA 418S2P | ||||
| 810 | 1607000E7H | 12.82 | 15.51 | |
| Pressure Plate | ||||
| 817 | 1619PB6081 | 1.00 | 1.21 | |
| operation button | ||||
| 866 | 1619PB6085 | 1.49 | 1.80 | |
| Connector GTR550 | ||||
| 888 | 1607000E8U | 13.13 | 15.89 | |
