Here you will find all available parts and drawings of the 'Bosch 3601M15001 (GTM12JL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

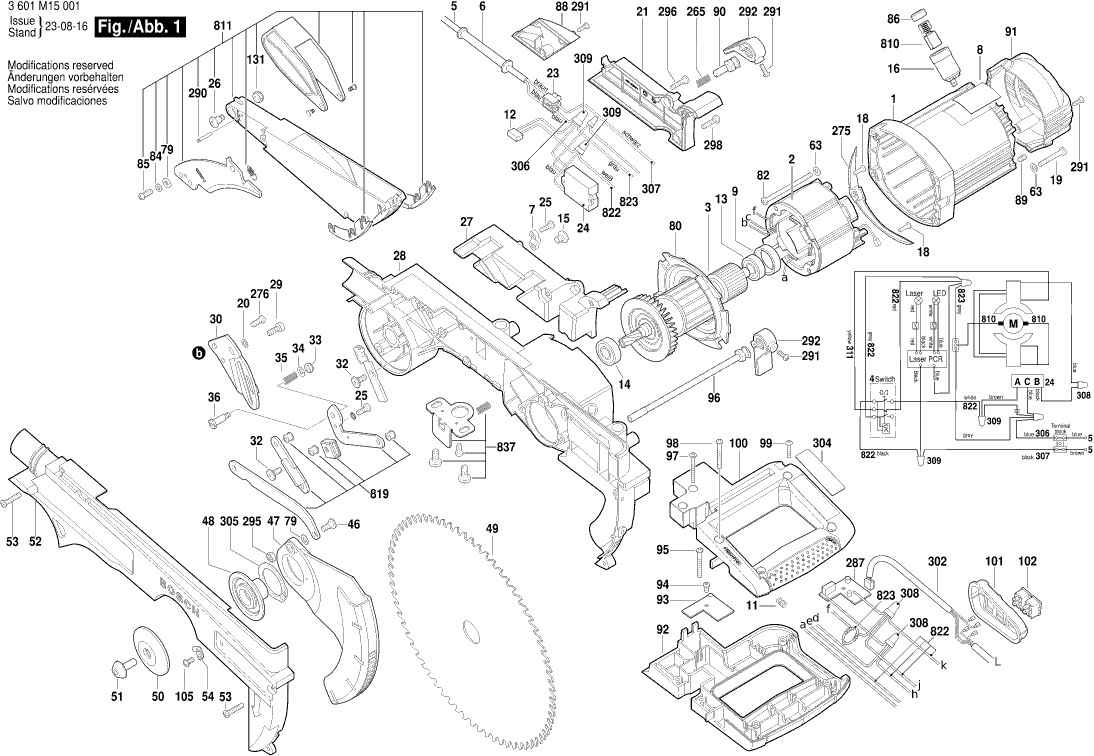

Technical drawing of model Bosch 3601M15001 (GTM12JL)
Spare parts list of model Bosch 3601M15001 (GTM12JL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PA4304 | 23.90 | 28.92 | |
| Field 230V | ||||
| 2 | 1619PA4305 | 80.26 | 97.11 | |
| Armature 230V | ||||
| 3 | 1619PA4307 | 71.68 | 86.73 | |
| Switch | ||||
| 4 | 1619PA4309 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 5 | 1619PA3779 | 21.30 | 25.77 | |
| Grommet | ||||
| 6 | 1619PA4314 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 1619PA4315 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619PA4316 | 2.40 | 2.90 | |
| Mounting Ring | ||||
| 9 | 1619PA8129 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 11 | 1619PA4319 | |||
| Condenser | ||||
| 12 | 1619PA4320 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 13 | 1619PA4321 | 6.73 | 8.14 | |
| Ball Bearing | ||||
| 14 | 1619PA4322 | 7.46 | 9.03 | |
| Cover | ||||
| 15 | 1619PA6339 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 16 | 1619PA4323 | 10.90 | 13.19 | |
| Screw | ||||
| 18 | 1619PA8128 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 19 | 1619PA4324 | 1.00 | 1.21 | |
| Adjustment washer | ||||
| 20 | 1619PA8126 | 1.00 | 1.21 | |
| Cover | ||||
| 21 | 1619PA4325 | 7.46 | 9.03 | |
| Connection | ||||
| 23 | 1619PA4327 | 2.40 | 2.90 | |
| Soft Start-Up Module | ||||
| 24 | 1619PA3393 | 52.45 | 63.46 | |
| Thread-forming tap. Screw | ||||
| 25 | 1619PA4328 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 26 | 1619PA4329 | 1.00 | 1.21 | |
| Box | ||||
| 27 | 1619PA4330 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 28 | 1619PA4331 | 88.83 | 107.48 | |
| Thread-forming tap. Screw | ||||
| 29 | 1619PA4332 | 1.00 | 1.21 | |
| Plate | ||||
| 30 | 1619PA4333 | 2.40 | 2.90 | |
| Thread-forming tap. Screw | ||||
| 32 | 1619PA4335 | 1.00 | 1.21 | |
| Nut | ||||
| 33 | 1619PA4336 | 1.00 | 1.21 | |
| Washer | ||||
| 34 | 1619PA4337 | 1.00 | 1.21 | |
| Spring | ||||
| 35 | 1619PA4338 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 36 | 1619PA4339 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 46 | 1619PA4349 | 1.49 | 1.80 | |
| Lower guard | ||||
| 47 | 1619PA4350 | 10.90 | 13.19 | |
| Flange | ||||
| 48 | 1619PA4351 | 8.35 | 10.10 | |
| Blade | ||||
| 49 | 1619PA4352 | 110.30 | 133.46 | |
| Flange | ||||
| 50 | 1619PA4353 | 7.46 | 9.03 | |
| Thread-forming tap. Screw | ||||
| 51 | 1619PA4354 | 1.49 | 1.80 | |
| Cover | ||||
| 52 | 1619PA4355 | 27.81 | 33.65 | |
| Thread-forming tap. Screw | ||||
| 53 | 1619PA4356 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 54 | 1619PA4357 | 1.00 | 1.21 | |
| Adjustment washer | ||||
| 55 | 1619PA8127 | 1.00 | 1.21 | |
| Box | ||||
| 57 | 1619PA4360 | 13.13 | 15.89 | |
| Cord guard | ||||
| 58 | 1619PA4361 | 1.00 | 1.21 | |
| Shaft | ||||
| 59 | 1619PA4362 | 1.00 | 1.21 | |
| Seal | ||||
| 60 | 1619PA4363 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 61 | 1619PA4364 | 1.00 | 1.21 | |
| Washer | ||||
| 63 | 1619PA4366 | 1.00 | 1.21 | |
| Lamp | ||||
| 69 | 1619PA8121 | 5.81 | 7.03 | |
| Cover | ||||
| 71 | 1619PA4373 | 1.00 | 1.21 | |
| Cover | ||||
| 72 | 1619PA4374 | 7.46 | 9.03 | |
| Seal | ||||
| 73 | 1619PA4375 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 74 | 1619PA4376 | 1.00 | 1.21 | |
| Knob | ||||
| 75 | 1619PA4377 | 1.49 | 1.80 | |
| Washer | ||||
| 79 | 1619PA4381 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 80 | 1619PA4382 | 3.44 | 4.16 | |
| Thread-forming tap. Screw | ||||
| 82 | 1619PA4384 | 1.00 | 1.21 | |
| Lens | ||||
| 83 | 1619PA8122 | 1.49 | 1.80 | |
| Washer | ||||
| 84 | 1619PA4385 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 85 | 1619PA4386 | 1.00 | 1.21 | |
| Brush-Cover | ||||
| 86 | 1619PA4387 | 1.00 | 1.21 | |
| Housing | ||||
| 88 | 1619PA4389 | 3.44 | 4.16 | |
| Thread-forming tap. Screw | ||||
| 89 | 1619PA4390 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 90 | 1619PA4391 | 2.08 | 2.52 | |
| Cover | ||||
| 91 | 1619PA4392 | 11.37 | 13.76 | |
| Handle | ||||
| 92 | 1619PA4393 | 58.03 | 70.22 | |
| Plate | ||||
| 93 | 1619PA4394 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 94 | 1619PA4395 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 95 | 1619PA4396 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 96 | 1619PA4397 | 3.44 | 4.16 | |
| Thread-forming tap. Screw | ||||
| 97 | 1619PA4398 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 98 | 1619PA4399 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 99 | 1619PA4400 | 1.00 | 1.21 | |
| Handle | ||||
| 100 | 1619PA4401 | 21.30 | 25.77 | |
| Cover | ||||
| 101 | 1619PA4402 | 1.00 | 1.21 | |
| Mains switch | ||||
| 102 | 1619P04129 | 10.90 | 13.19 | |
| Thread-forming tap. Screw | ||||
| 103 | 1619PA4403 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 105 | 1619PA4405 | 1.00 | 1.21 | |
| Washer | ||||
| 106 | 1619PA4406 | 1.00 | 1.21 | |
| Nut | ||||
| 108 | 1619PA4408 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 110 | 1619PA4410 | 1.00 | 1.21 | |
| Plate | ||||
| 111 | 1619PA4411 | 11.37 | 13.76 | |
| Washer | ||||
| 112 | 1619PA4412 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 115 | 1619PA4415 | 1.00 | 1.21 | |
| Shaft | ||||
| 116 | 1619PA4416 | 4.94 | 5.98 | |
| Plate | ||||
| 117 | 1619PA4417 | 16.79 | 20.32 | |
| Pin | ||||
| 119 | 1619PA4419 | 1.00 | 1.21 | |
| Spring | ||||
| 125 | 1619PA4425 | 2.08 | 2.52 | |
| Shaft | ||||
| 126 | 1619PA4426 | 4.94 | 5.98 | |
| Nut | ||||
| 131 | 1619PA4431 | 1.00 | 1.21 | |
| Lever | ||||
| 132 | 1619PA4432 | 1.00 | 1.21 | |
| Bolt | ||||
| 133 | 1619PA4433 | 3.44 | 4.16 | |
| Thread-forming tap. Screw | ||||
| 136 | 1619PA4436 | 1.49 | 1.80 | |
| Cover | ||||
| 137 | 1619PA4437 | 1.49 | 1.80 | |
| Spring | ||||
| 138 | 1619PA4438 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 139 | 1619PA4439 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 140 | 1619PA4440 | 1.00 | 1.21 | |
| Cover | ||||
| 141 | 1619PA4441 | 8.35 | 10.10 | |
| Thread-forming tap. Screw | ||||
| 142 | 1619PA4442 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 143 | 1619PA4443 | 4.94 | 5.98 | |
| Shaft | ||||
| 144 | 1619PA4444 | 14.94 | 18.08 | |
| Flat Key | ||||
| 145 | 1619PA4445 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 146 | 1619PA4446 | 1.00 | 1.21 | |
| Gear | ||||
| 147 | 1619PA4447 | 27.81 | 33.65 | |
| Ball Bearing | ||||
| 148 | 1619PA4448 | 6.73 | 8.14 | |
| Cover | ||||
| 153 | 1619PA4453 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 154 | 1619PA4454 | 1.00 | 1.21 | |
| Knob | ||||
| 155 | 1619PA4455 | 1.49 | 1.80 | |
| Spring | ||||
| 156 | 1619PA4456 | 1.00 | 1.21 | |
| Nut | ||||
| 157 | 1619PA4457 | 1.00 | 1.21 | |
| Bolt | ||||
| 158 | 1619PA4458 | 2.08 | 2.52 | |
| Washer | ||||
| 159 | 1619PA4459 | 1.00 | 1.21 | |
| Nut | ||||
| 160 | 1619PA4460 | 1.49 | 1.80 | |
| Shaft | ||||
| 161 | 1619PA4461 | 2.08 | 2.52 | |
| Knob | ||||
| 162 | 1619PA4462 | 1.49 | 1.80 | |
| O-Ring | ||||
| 163 | 1619PA4463 | 1.00 | 1.21 | |
| Pin | ||||
| 164 | 1619PA4464 | 3.44 | 4.16 | |
| Washer | ||||
| 165 | 1619PA4465 | 1.00 | 1.21 | |
| Nut | ||||
| 166 | 1619PA4466 | 1.49 | 1.80 | |
| Bolt | ||||
| 167 | 1619PA4467 | 1.00 | 1.21 | |
| Plate | ||||
| 168 | 1619PA4468 | 6.73 | 8.14 | |
| Guard | ||||
| 169 | 1619PA4469 | 10.90 | 13.19 | |
| Bracket | ||||
| 171 | 1619PA4470 | 64.67 | 78.25 | |
| Spring | ||||
| 172 | 1619PA4471 | 27.81 | 33.65 | |
| Bushing | ||||
| 173 | 1619PA4472 | 4.18 | 5.06 | |
| Shaft | ||||
| 174 | 1619PA4473 | 8.35 | 10.10 | |
| Slider | ||||
| 175 | 1619PA4474 | 31.42 | 38.02 | |
| Washer | ||||
| 176 | 1619PA4475 | 1.00 | 1.21 | |
| Bolt | ||||
| 177 | 1619PA4476 | 1.00 | 1.21 | |
| Bushing | ||||
| 178 | 1619PA4477 | 1.00 | 1.21 | |
| Dish | ||||
| 179 | 1619PA4478 | 2.08 | 2.52 | |
| Carrier | ||||
| 180 | 1619PA4479 | 8.35 | 10.10 | |
| Washer | ||||
| 181 | 1619PA4480 | 2.40 | 2.90 | |
| Pointer | ||||
| 182 | 1619PA4481 | 1.00 | 1.21 | |
| Bolt | ||||
| 183 | 1619PA4482 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 184 | 1619PA4483 | 1.00 | 1.21 | |
| Cursorelement | ||||
| 185 | 1619PA4484 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 186 | 1619PA4485 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 187 | 1619PA4167 | |||
| Knob | ||||
| 189 | 1619PA4486 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 190 | 1619PA4487 | 1.49 | 1.80 | |
| Bolt | ||||
| 192 | 1619PA4489 | 1.00 | 1.21 | |
| Nut | ||||
| 193 | 1619PA4490 | 1.00 | 1.21 | |
| Table | ||||
| 194 | 1619PA4491 | 98.18 | 118.80 | |
| Plate | ||||
| 195 | 1619PA4492 | 1.00 | 1.21 | |
| Base | ||||
| 196 | 1619PA4493 | 2.08 | 2.52 | |
| Plate | ||||
| 197 | 1619PA4494 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 199 | 1619PA4496 | 1.00 | 1.21 | |
| Knob | ||||
| 201 | 1619PA4498 | 5.81 | 7.03 | |
| Thread-forming tap. Screw | ||||
| 203 | 1619PA4500 | 1.00 | 1.21 | |
| Washer | ||||
| 204 | 1619PA4501 | 1.00 | 1.21 | |
| Label | ||||
| 205 | 1619PA4502 | 1.00 | 1.21 | |
| Base | ||||
| 206 | 1619PA4503 | 155.51 | 188.17 | |
| Plate | ||||
| 207 | 1619PA4504 | 2.40 | 2.90 | |
| Bolt | ||||
| 208 | 1619PA4505 | 1.00 | 1.21 | |
| Cushion | ||||
| 209 | 1619PA4506 | 2.08 | 2.52 | |
| Nut | ||||
| 210 | 1619PA4507 | 1.00 | 1.21 | |
| Plate | ||||
| 211 | 1619PA4508 | 1.00 | 1.21 | |
| Knob | ||||
| 213 | 1619PA4510 | 1.49 | 1.80 | |
| Plate | ||||
| 217 | 1619PA4514 | 1.00 | 1.21 | |
| Block | ||||
| 222 | 1619PA4519 | 2.40 | 2.90 | |
| Workpiece Pusher | ||||
| 253 | 1619PA4549 | 9.67 | 11.70 | |
| Spring | ||||
| 265 | 1619PA4561 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 266 | 1619PA4562 | 1.00 | 1.21 | |
| Washer | ||||
| 267 | 1619PA4563 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 268 | 1619PA4564 | 1.00 | 1.21 | |
| Washer | ||||
| 270 | 1619PA4566 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 271 | 1619PA4567 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 272 | 1619PA4568 | 1.00 | 1.21 | |
| Washer | ||||
| 273 | 1619PA4569 | 1.00 | 1.21 | |
| Cover | ||||
| 275 | 1619PA4571 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 276 | 1619PA4572 | 1.00 | 1.21 | |
| Cover | ||||
| 279 | 1619PA4575 | 1.00 | 1.21 | |
| Bushing | ||||
| 280 | 1619PA4576 | 27.81 | 33.65 | |
| O-Ring | ||||
| 281 | 1619PA4577 | 1.00 | 1.21 | |
| Seal | ||||
| 285 | 1619PA4581 | 1.00 | 1.21 | |
| Printed-Board Assembly | ||||
| 287 | 1619PA3508 | 39.14 | 47.36 | |
| Pin | ||||
| 290 | 1619PA4585 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 291 | 1619PA4586 | 1.00 | 1.21 | |
| Knob | ||||
| 292 | 1619PA4587 | 2.86 | 3.46 | |
| Nut | ||||
| 295 | 1619PA4590 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 296 | 1619PA4591 | 1.00 | 1.21 | |
| Washer | ||||
| 297 | 1619PA4592 | 1.00 | 1.21 | |
| Screw | ||||
| 298 | 1619PA8157 | 1.00 | 1.21 | |
| Screened Electric Cable | ||||
| 302 | 1619PA4765 | 7.46 | 9.03 | |
| Screened Electric Cable | ||||
| 303 | 1619PA4766 | 1.00 | 1.21 | |
| Warning Label | ||||
| 304 | 1619PA4763 | 1.00 | 1.21 | |
| O-Ring | ||||
| 305 | 1619PA4916 | 1.00 | 1.21 | |
| Cable BLUE | ||||
| 306 | 1619PA6340 | 1.49 | 1.80 | |
| Cable BLACK | ||||
| 307 | 1619PA6341 | 2.08 | 2.52 | |
| Connector | ||||
| 308 | 2610911933 | 1.00 | 1.21 | |
| Fastening Clamp | ||||
| 309 | 1609902275 | 1.00 | 1.21 | |
| Cable | ||||
| 310 | 1619PA6342 | 2.08 | 2.52 | |
| Cable | ||||
| 311 | 1619PA6343 | 2.40 | 2.90 | |
| Bolt | ||||
| 328 | 1619PA9304 | 1.00 | 1.21 | |
| Clamp | ||||
| 653 | 1619PA4166 | 16.79 | 20.32 | |
| Dust Bag | ||||
| 654 | 1619PA4560 | 7.46 | 9.03 | |
| Carbon Brush | ||||
| 810 | 1619PA4631 | 14.94 | 18.08 | |
| Lower guard | ||||
| 811 | 1619PA4632 | 43.12 | 52.18 | |
| Pin | ||||
| 812 | 1619PA4633 | 11.37 | 13.76 | |
| Table | ||||
| 813 | 1619PA4634 | 98.18 | 118.80 | |
| Laser | ||||
| 814 | 1619PA4635 | 12.82 | 15.51 | |
| Linkage | ||||
| 815 | 1619PA4636 | 16.79 | 20.32 | |
| Lower guard | ||||
| 816 | 1619PA4637 | 14.94 | 18.08 | |
| Light Unit | ||||
| 817 | 1619PA4638 | 16.79 | 20.32 | |
| Guide | ||||
| 818 | 1619PA4639 | 110.30 | 133.46 | |
| Linkage | ||||
| 819 | 1619PA4640 | 7.46 | 9.03 | |
| Linkage | ||||
| 820 | 1619PA4762 | 7.46 | 9.03 | |
| Button | ||||
| 821 | 1619PA5029 | 3.44 | 4.16 | |
| Cable | ||||
| 822 | 1619PA8131 | 2.86 | 3.46 | |
| Cable | ||||
| 823 | 1619PA8132 | 2.40 | 2.90 | |
| Guide | ||||
| 826 | 1619PA9308 | 52.45 | 63.46 | |
| Plate | ||||
| 837 | 1619PA5970 | 5.81 | 7.03 | |
