Here you will find all available parts and drawings of the 'Bosch 3601D91G00 (GTK40)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

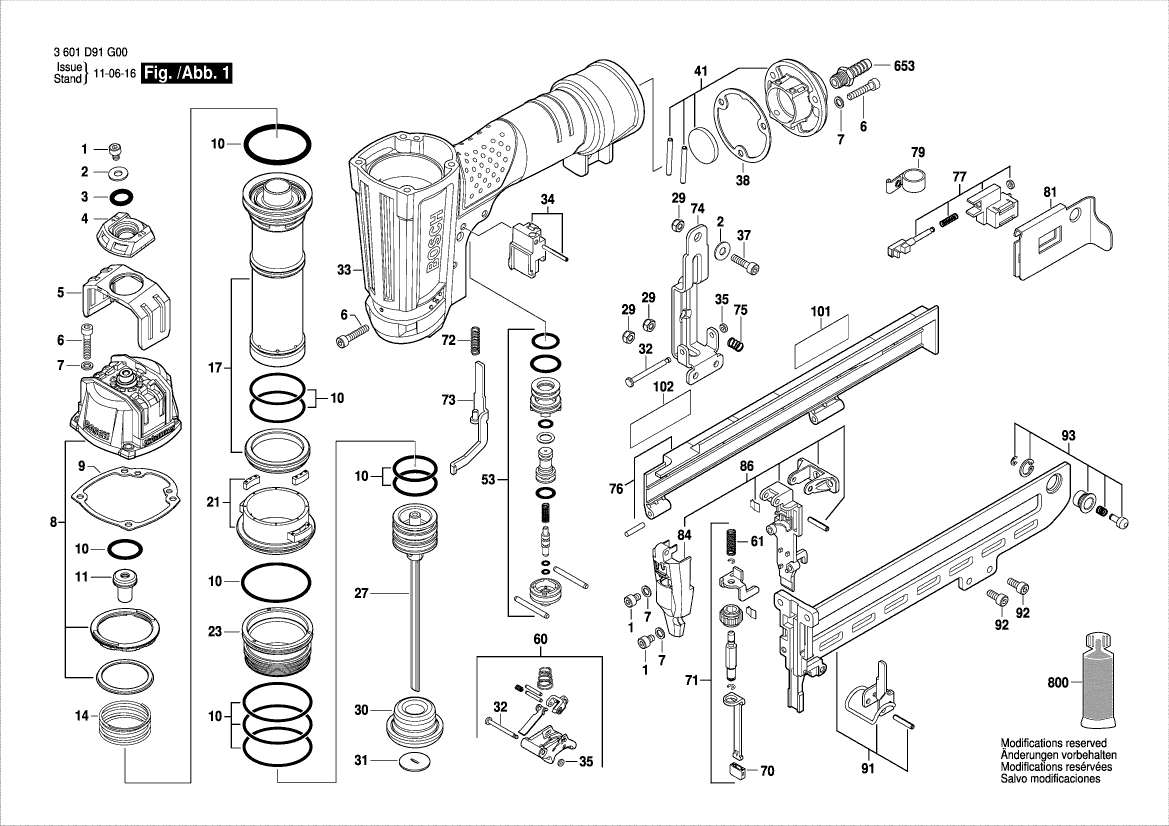

Technical drawing of model Bosch 3601D91G00 (GTK40)
Spare parts list of model Bosch 3601D91G00 (GTK40)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 2610006575 | 1.00 | 1.21 | |
| Washer | ||||
| 2 | 2610006576 | 1.32 | 1.60 | |
| O-Ring | ||||
| 3 | 2610006578 | 1.00 | 1.21 | |
| Cover | ||||
| 4 | 2610006577 | 2.18 | 2.64 | |
| Cover Plate | ||||
| 5 | 2610006579 | 1.94 | 2.35 | |
| Screw | ||||
| 6 | 2610006580 | 1.00 | 1.21 | |
| Washer | ||||
| 7 | 2610006581 | 1.00 | 1.21 | |
| Cylinder Cover | ||||
| 8 | 2610006582 | 26.62 | 32.21 | |
| mat seal | ||||
| 9 | 2610006583 | 4.58 | 5.54 | |
| O-Ring | ||||
| 10 | 2610006584 | 13.90 | 16.82 | |
| No longer available, no replacement | ||||
| 11 | 2610006585 | |||
| Coil Spring | ||||
| 14 | 2610006586 | 4.58 | 5.54 | |
| Piston Cylinder | ||||
| 17 | 2610006587 | 41.30 | 49.97 | |
| Cylinder Support | ||||
| 21 | 2610006588 | 5.96 | 7.21 | |
| Sleeve | ||||
| 23 | 2610006589 | 4.10 | 4.96 | |
| Piston | ||||
| 27 | 2610006635 | 15.61 | 18.89 | |
| Nut | ||||
| 29 | 2610006594 | 0.83 | 1.00 | |
| Shock Absorber | ||||
| 30 | 2610006591 | 11.02 | 13.33 | |
| Lead-Seal Plate | ||||
| 31 | 2610006614 | 1.00 | 1.21 | |
| Pin | ||||
| 32 | 2610005337 | 1.70 | 2.06 | |
| Housing | ||||
| 33 | 2610006595 | 91.33 | 110.51 | |
| Guide Block | ||||
| 34 | 2610006596 | 2.52 | 3.05 | |
| O-Ring | ||||
| 35 | 2610005338 | 1.00 | 1.21 | |
| Screw | ||||
| 37 | 2610005299 | 0.83 | 1.00 | |
| mat seal | ||||
| 38 | 2610006593 | 4.58 | 5.54 | |
| End cap | ||||
| 41 | 2610006598 | 15.61 | 18.89 | |
| Trigger | ||||
| 53 | 2610001706 | 14.94 | 18.08 | |
| Triggering Rod | ||||
| 60 | 2610005318 | 12.21 | 14.77 | |
| Coil Spring | ||||
| 61 | 2610006615 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 70 | 2610006606 | |||
| Safety Lever | ||||
| 71 | 2610006616 | 20.39 | 24.67 | |
| Coil Spring | ||||
| 72 | 2610006617 | 1.00 | 1.21 | |
| Stamped Part | ||||
| 73 | 2610006618 | 9.53 | 11.53 | |
| Stamped Part | ||||
| 74 | 2610006619 | 15.71 | 19.01 | |
| Coil Spring | ||||
| 75 | 2610006620 | 1.00 | 1.21 | |
| nail cartridge | ||||
| 76 | 2610006621 | 12.21 | 14.77 | |
| Locking Wedge | ||||
| 77 | 2610006622 | 17.60 | 21.30 | |
| Coil Spring | ||||
| 79 | 2610006623 | 6.53 | 7.90 | |
| Feeder Block | ||||
| 81 | 2610006624 | 9.47 | 11.46 | |
| Nose | ||||
| 84 | 2610006625 | 3.04 | 3.68 | |
| Nose | ||||
| 86 | 2610006626 | 41.30 | 49.97 | |
| nail cartridge | ||||
| 91 | 2610006627 | 55.56 | 67.23 | |
| Screw | ||||
| 92 | 2610006628 | 1.00 | 1.21 | |
| Locking Pin | ||||
| 93 | 2610006629 | 5.33 | 6.45 | |
| Warning Label | ||||
| 101 | 1601118S50 | 2.18 | 2.64 | |
| Nameplate | ||||
| 102 | 1601118S49 | 2.18 | 2.64 | |
| Nameplate | ||||
| 106 | 1601118S49 | 2.18 | 2.64 | |
| Warning Label | ||||
| 107 | 1601118S50 | 2.18 | 2.64 | |
| Fitting | ||||
| 653 | 1600A00079 | 6.53 | 7.90 | |
| Grease | ||||
| 800 | 2610005257 | 7.46 | 9.03 | |
