Here you will find all available parts and drawings of the 'Bosch 3601K83100 (GTC400C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

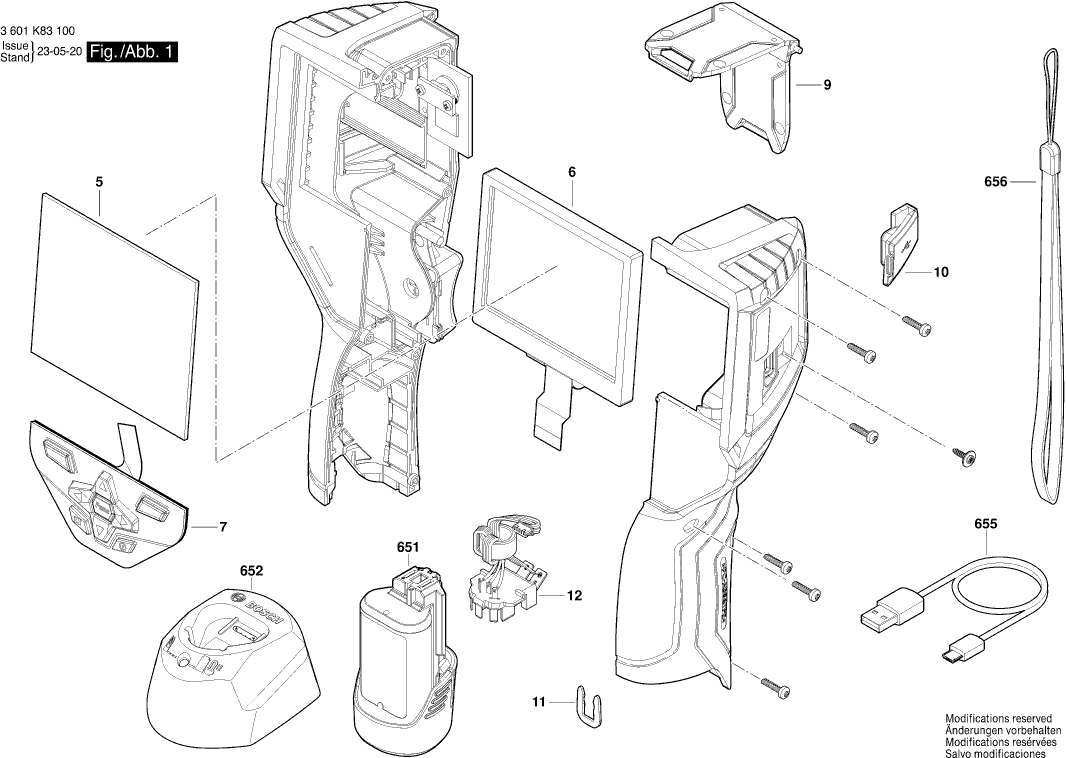

Technical drawing of model Bosch 3601K83100 (GTC400C)
Spare parts list of model Bosch 3601K83100 (GTC400C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Protective Glass | ||||
| 5 | 1600A00S47 | 7.46 | 9.03 | |
| Display | ||||
| 6 | 1600A00S48 | 64.67 | 78.25 | |
| Keyboard | ||||
| 7 | 1600A00S46 | 12.82 | 15.51 | |
| Cover | ||||
| 9 | 16055002CR | 1.49 | 1.80 | |
| Cover | ||||
| 10 | 1600A00Z77 | 1.49 | 1.80 | |
| Clip | ||||
| 11 | 2609110838 | 1.00 | 1.21 | |
| Cable Connector | ||||
| 12 | 1600A015X5 | 13.13 | 15.89 | |
| Cable Connector | ||||
| 12 | 2609199834 | 9.47 | 11.46 | |
| Battery Pack | ||||
| 651 | 1607A350C5 | 61.93 | 74.94 | |
| Battery Pack | ||||
| 651 | 1617S01Z8W | 52.45 | 63.46 | |
| Fast Charger | ||||
| 652 | 2607226219 | 70.20 | 84.94 | |
| Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A | ||||
| 652 | 2607226221 | 58.03 | 70.22 | |
| USB cable | ||||
| 655 | 2609120670 | 4.18 | 5.06 | |
| Carrying Loop | ||||
| 656 | 1600A014BT | 4.18 | 5.06 | |
