Here you will find all available parts and drawings of the 'Bosch 3601E8F001 (GST90BE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

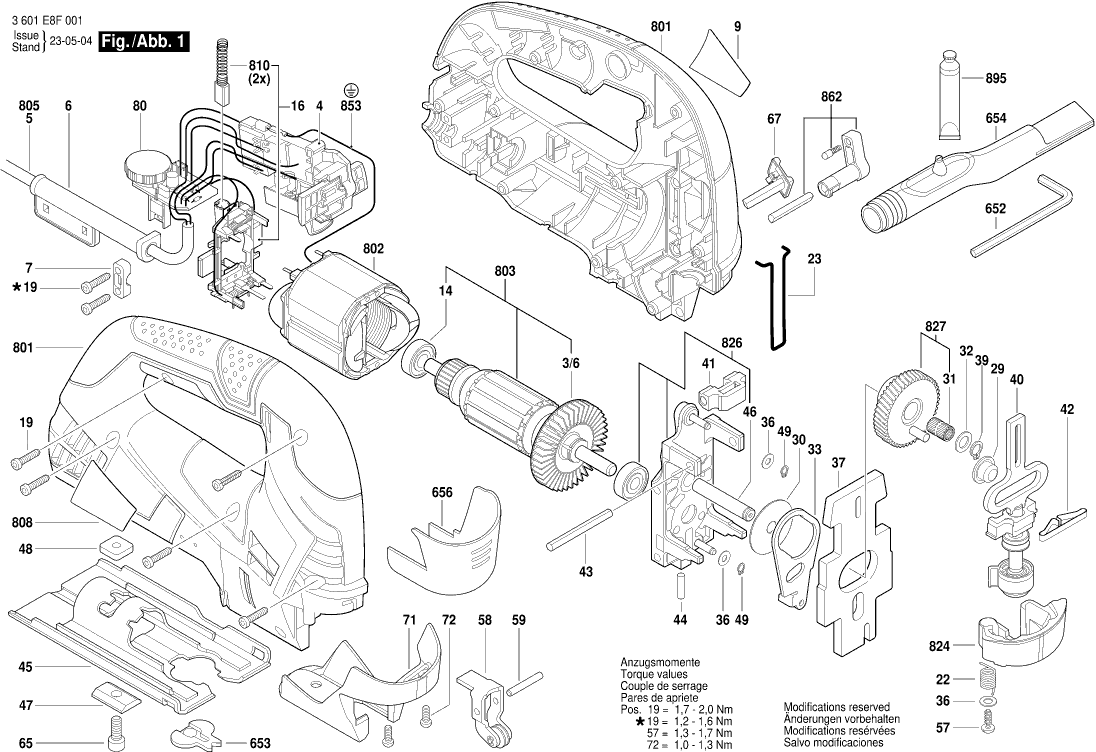

Technical drawing of model Bosch 3601E8F001 (GST90BE)
Spare parts list of model Bosch 3601E8F001 (GST90BE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fan | ||||
| 3/6 | 2606610123 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 2607200669 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 5 | 1604460399 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703027 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C114 | 2.86 | 3.46 | |
| Manufacturer's nameplate | ||||
| 9 | 1618B0002K | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 14 | 2609110491 | 4.94 | 5.98 | |
| Brush Plate | ||||
| 16 | 2609001621 | 12.82 | 15.51 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 22 | 1619P07152 | 1.00 | 1.21 | |
| Protecting Cover | ||||
| 23 | 1619P07128 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 29 | 2600914022 | 6.73 | 8.14 | |
| Shim | ||||
| 30 | 1619P07576 | 2.08 | 2.52 | |
| Needle-Roller Assembly | ||||
| 31 | 2600913040 | 5.81 | 7.03 | |
| Shim | ||||
| 32 | 2600101077 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 33 | 1619P07137 | 4.18 | 5.06 | |
| Shim | ||||
| 36 | 2600100588 | 1.49 | 1.80 | |
| Counterweight | ||||
| 37 | 1619P07133 | 10.90 | 13.19 | |
| Spring retaining ring | ||||
| 39 | 2916640905 | 1.49 | 1.80 | |
| Lifting Rod | ||||
| 40 | 1619P07147 | 43.12 | 52.18 | |
| Plain bearing | ||||
| 41 | 1619P08903 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 42 | 160461201E | 1.49 | 1.80 | |
| Compression Spring | ||||
| 42 | 2604613004 | 1.49 | 1.80 | |
| Needle Roller | ||||
| 43 | 1619P07139 | 2.08 | 2.52 | |
| Bearing bolt | ||||
| 44 | 1619P07143 | 1.00 | 1.21 | |
| base plate | ||||
| 45 | 1619P07162 | 10.90 | 13.19 | |
| Bearing bolt | ||||
| 46 | 1619P07138 | 2.40 | 2.90 | |
| Profile Beading | ||||
| 47 | 2601030019 | 2.40 | 2.90 | |
| fixing plate | ||||
| 48 | 1619P07163 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 49 | 2916640001 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 57 | 1619P02848 | 1.49 | 1.80 | |
| Roller Lever | ||||
| 58 | 1619P13426 | 7.46 | 9.03 | |
| Bearing bolt | ||||
| 59 | 1619P07159 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 65 | 2910141197 | 1.44 | 1.74 | |
| Switch Slide | ||||
| 67 | 1619P07158 | 2.86 | 3.46 | |
| Cover | ||||
| 71 | 1619P16199 | 14.94 | 18.08 | |
| Cover | ||||
| 71 | 16055002CJ | 8.35 | 10.10 | |
| Cross Recessed-Head Screw | ||||
| 72 | 2603435015 | 2.08 | 2.52 | |
| Speed governor | ||||
| 80 | 1619P16839 | 34.82 | 42.13 | |
| Offset Screwdriver | ||||
| 652 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 652 | 2610364015 | 3.44 | 4.16 | |
| Splintering Protector | ||||
| 653 | 2601016065 | 4.94 | 5.98 | |
| Suction Nozzle | ||||
| 654 | 1619P07167 | 6.73 | 8.14 | |
| Covering hood | ||||
| 656 | 1619P07166 | 2.40 | 2.90 | |
| Housing Section | ||||
| 801 | 1619P07126 | 23.90 | 28.92 | |
| Field | ||||
| 802 | 1619P09155 | 16.79 | 20.32 | |
| Armature | ||||
| 803 | 1619P09157 | 39.14 | 47.36 | |
| Nameplate | ||||
| 808 | 160111A4EV | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321925 | 8.35 | 10.10 | |
| Lever Switch | ||||
| 824 | 1619P07151 | 2.86 | 3.46 | |
| Bearing Bracket | ||||
| 826 | 1619P08888 | 18.94 | 22.92 | |
| Eccentric Cog Wheel | ||||
| 827 | 1619P08889 | 18.94 | 22.92 | |
| Earth Conductor | ||||
| 853 | 1619P09053 | 2.08 | 2.52 | |
| Change-Over Switch | ||||
| 862 | 1619P08890 | 3.44 | 4.16 | |
| Grease Tube | ||||
| 895 | 3605430003 | 27.81 | 33.65 | |
