Here you will find all available parts and drawings of the 'Bosch 3601E8H0N0 ( GST75E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

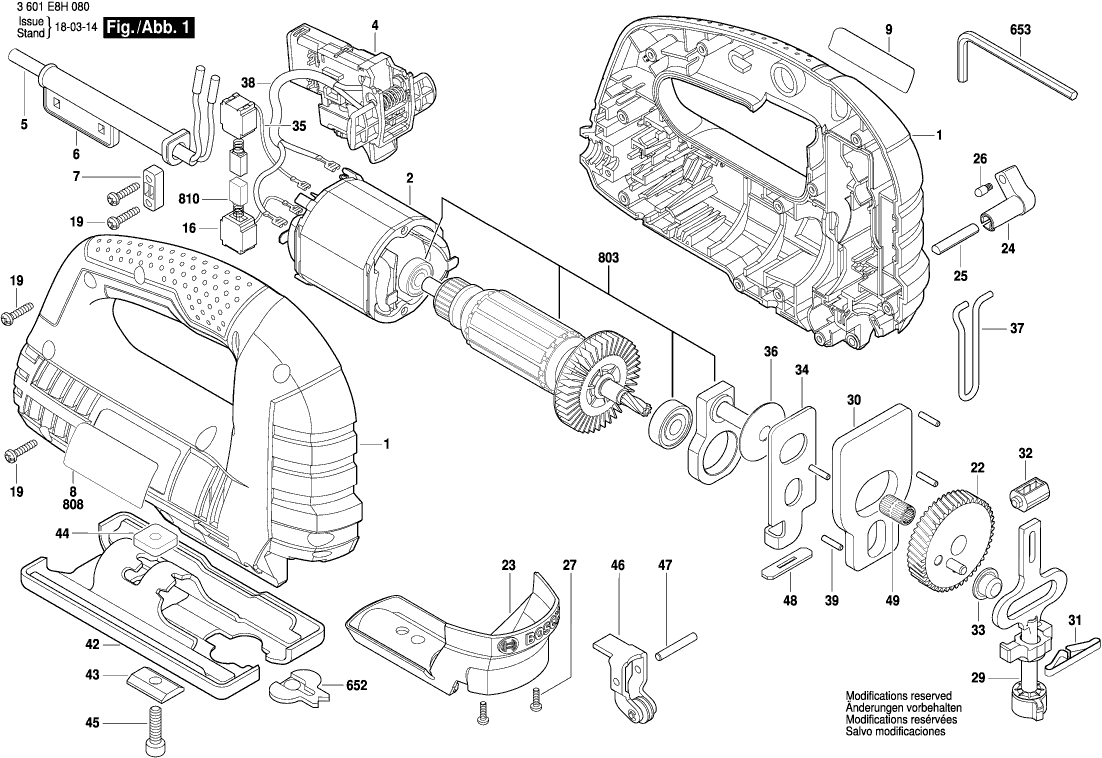

Technical drawing of model Bosch 3601E8H0N0 ( GST75E )
Spare parts list of model Bosch 3601E8H0N0 ( GST75E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Set | ||||
| 1 | 1619X04876 | 13.93 | 16.86 | |
| Field 230V | ||||
| 2 | 1619X05867 | 18.19 | 22.01 | |
| Switch | ||||
| 4 | 1619X06060 | 12.41 | 15.02 | |
| Power supply cord EU 2,65m 2x1 H05 VV-F | ||||
| 5 | 1604460398 | 9.53 | 11.53 | |
| Grommet Ø 7mm | ||||
| 6 | 1619P14642 | 1.18 | 1.43 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate TST 8000 E | ||||
| 9 | 1619X07065 | 1.94 | 2.35 | |
| Brush Holder | ||||
| 16 | 1619X02735 | 1.70 | 2.06 | |
| Screw ST3,9x19 | ||||
| 19 | 2610315386 | 1.18 | 1.43 | |
| Gear Unit | ||||
| 22 | 1619X04872 | 9.53 | 11.53 | |
| Decorative Cover | ||||
| 23 | 1600A00XY2 | 5.83 | 7.05 | |
| Lever | ||||
| 24 | 1619X04885 | 1.18 | 1.43 | |
| Shaft | ||||
| 25 | 1619X03695 | 1.18 | 1.43 | |
| Spring | ||||
| 26 | 1619X03196 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 3x10 | ||||
| 27 | 1619P00220 | 0.83 | 1.00 | |
| Lifting Rod | ||||
| 29 | 2600780173 | 33.45 | 40.47 | |
| Counter Weight | ||||
| 30 | 1619X04546 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 31 | 2604613004 | 1.18 | 1.43 | |
| Bearing Block | ||||
| 32 | 1619X00399 | 0.83 | 1.00 | |
| Needle bearing | ||||
| 33 | 2600914022 | 5.33 | 6.45 | |
| Pusher | ||||
| 34 | 1619X04542 | 2.24 | 2.71 | |
| Cable | ||||
| 35 | 1619X03396 | 1.18 | 1.43 | |
| Wear Plate | ||||
| 36 | 1619X00434 | 1.18 | 1.43 | |
| Protective Guard | ||||
| 37 | 1619X04886 | 1.94 | 2.35 | |
| Cable Set | ||||
| 38 | 1619X03111 | 1.18 | 1.43 | |
| Straight Pin | ||||
| 39 | 1619X04547 | 1.18 | 1.43 | |
| Base Plate | ||||
| 42 | 1619X07088 | 5.83 | 7.05 | |
| Profile Beading | ||||
| 43 | 2601030019 | 1.94 | 2.35 | |
| fixing plate | ||||
| 44 | 1619P07163 | 0.83 | 1.00 | |
| Hex Socket Head Cap Screw DIN 912-M6x20-8.8 | ||||
| 45 | 2910141201 | 1.94 | 2.35 | |
| No information available, not orderable | ||||
| 46 | 1619P13426 | |||
| Bearing bolt | ||||
| 47 | 1619P07159 | 0.83 | 1.00 | |
| Seal | ||||
| 48 | 1619X04574 | 1.70 | 2.06 | |
| Needle-Roller Assembly | ||||
| 49 | 2600913040 | 4.70 | 5.69 | |
| Splintering Protector | ||||
| 652 | 2601016065 | 4.10 | 4.96 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 653 | 2610364015 | 2.71 | 3.28 | |
| Armature set 230V | ||||
| 803 | 1619X07507 | 33.45 | 40.47 | |
| Nameplate | ||||
| 808 | 1619X07478 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1619X07509 | 5.33 | 6.45 | |
