Here you will find all available parts and drawings of the 'Bosch 3601E8E000 ( GST75BE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

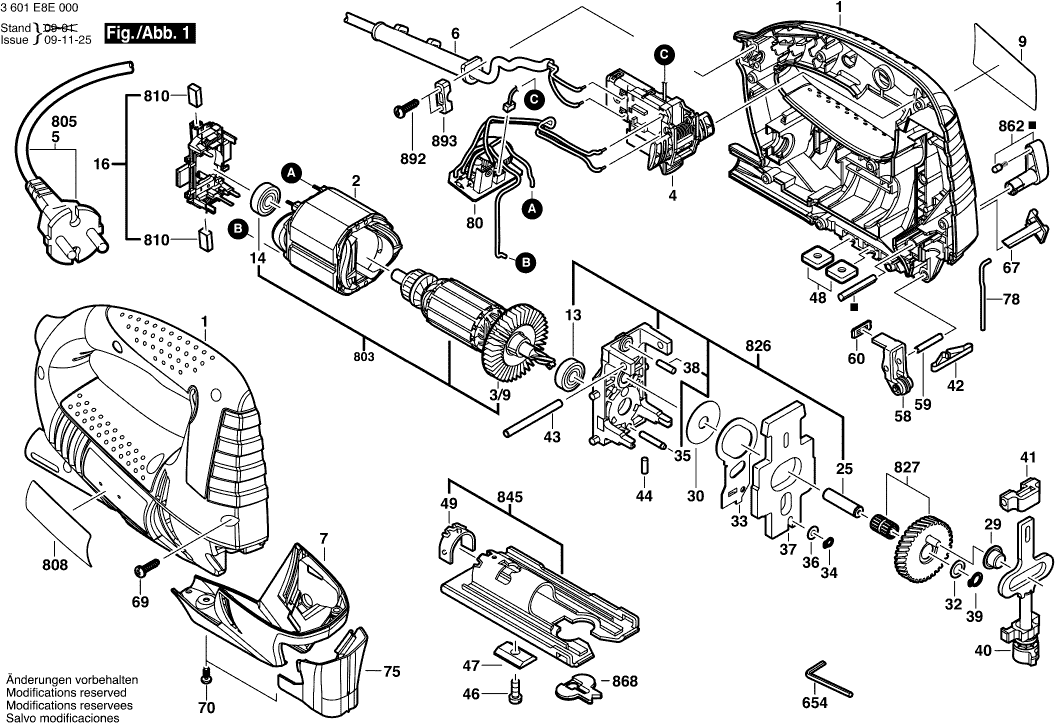

Technical drawing of model Bosch 3601E8E000 ( GST75BE )

Spare parts list of model Bosch 3601E8E000 ( GST75BE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section DARK BLUE
1 2605105112 29.75 36.00
Field 230-240V
2 2604220682 15.71 19.01
Fan
3/9 2606610123 1.94 2.35
Switch
4 2607200644 12.41 15.02
Grommet Ø6,5-Ø6,9x95 MM
6 2600703027 1.18 1.43
Cover
7 2601098110 11.88 14.37
Manufacturer's nameplate
9 1618B0002E 0.83 1.00
groove ball bearing 8x22x7
13 2600905110 4.70 5.69
groove ball bearing 8x22x7
14 2600905110 4.70 5.69
Brush Plate
16 2609001621 10.73 12.98
Bearing bolt
25 2603105080 1.94 2.35
Needle bearing
29 2600914022 5.33 6.45
Shim 0,5 MM
30 2600101048 1.18 1.43
Shim 0,5 MM
32 2600101077 1.18 1.43
Fork Lever
33 2601923012 3.31 4.01
Spring retaining ring DIN 471-4x0,4-FSt
34 2916640001 0.83 1.00
Bearing bolt
35 2603105091 1.94 2.35
Shim 0,5 MM
36 2600100588 1.18 1.43
Counterweight
37 2601098098 7.58 9.17
Needle Roller 4x15,8 MM
38 1903201054 0.83 1.00
Spring retaining ring 8x0,8 N31A MR7
39 2916640905 1.18 1.43
No longer available, no replacement
40 2600780154
Plain bearing
41 2605801038 4.10 4.96
Compression Spring
42 2604613004 1.18 1.43
Compression Spring
42 160461201E 1.10 1.33
Needle Roller
43 2603201089 4.70 5.69
Bearing bolt
44 2603105084 1.70 2.06
Hex Socket Head Cap Screw DIN 912-M6x16-8.8
46 2910141197 0.83 1.00
Profile Beading
47 2601030019 1.94 2.35
fixing plate
48 2600040004 2.24 2.71
Scale Plate
49 2601328044 1.94 2.35
Roller Lever
58 2601321077 9.53 11.53
Straight Pin
59 2609002725 0.83 1.00
Sealing Plate
60 2601015077 1.18 1.43
Switch Slide
67 2602026154 1.94 2.35
Screw 4x16
69 2603490022 0.83 1.00
Torx Oval-Head Screw 4x12
70 2603490021 0.83 1.00
Covering hood
75 2605510255 4.70 5.69
Locking pin
78 2603105088 0.83 1.00
Speed governor
80 2607233071 33.45 40.47
Offset Screwdriver
654 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
654 2610364015 2.71 3.28
Armature
803 2604011910 44.82 54.23
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Nameplate
808 2601115296 1.18 1.43
Carbon-Brush Set
810 2604321925 6.54 7.91
Bearing Bracket
826 2609001930 18.19 22.01
Eccentric Cog Wheel
827 2609001931 18.19 22.01
Base Plate
845 2601016903 12.41 15.02
Change-Over Switch
862 2601015902 4.10 4.96
Splintering Protector
868 2601016065 4.10 4.96
Screw 4x16
892 2603490022 0.83 1.00
Cable Clip
893 1611035005 1.70 2.06
