Here you will find all available parts and drawings of the 'Bosch 3601E09220 ( GST65BE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

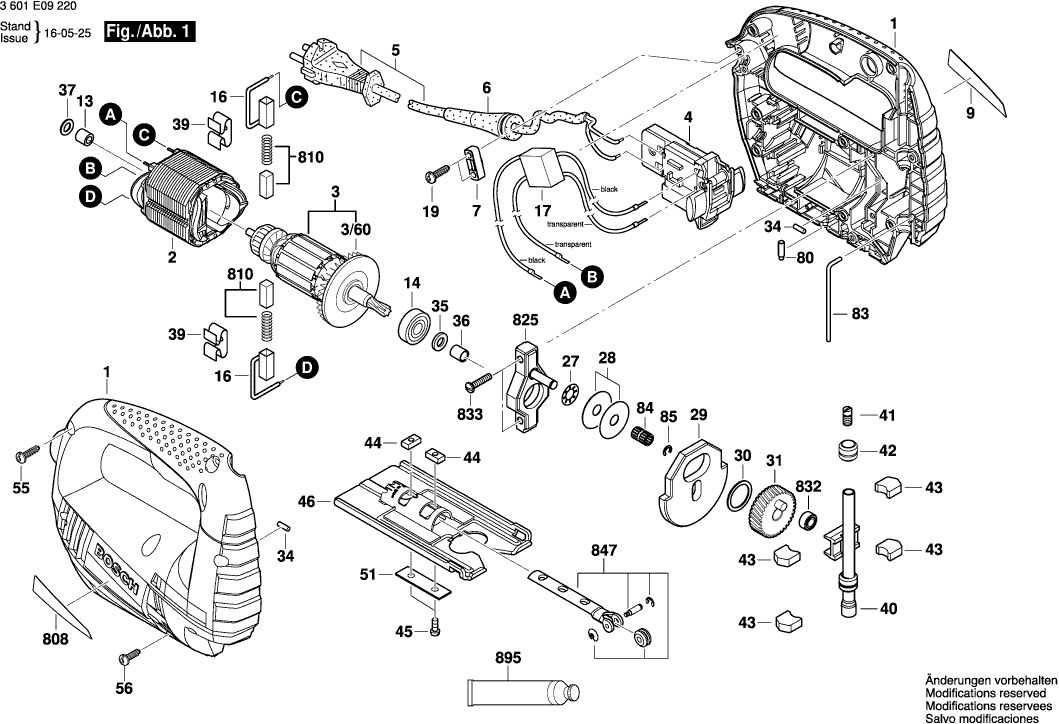

Technical drawing of model Bosch 3601E09220 ( GST65BE )
Spare parts list of model Bosch 3601E09220 ( GST65BE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10206 | 15.71 | 19.01 | |
| Field 220V | ||||
| 2 | 1619P01960 | 15.71 | 19.01 | |
| Armature 220V | ||||
| 3 | 1619P01957 | 40.61 | 49.14 | |
| Fan | ||||
| 3/60 | 2606610022 | 3.31 | 4.01 | |
| Switch | ||||
| 4 | 2607200660 | 13.93 | 16.86 | |
| Power supply cord | ||||
| 5 | 1604460332 | 9.53 | 11.53 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate GST 65 BE | ||||
| 9 | 1619P02562 | 1.94 | 2.35 | |
| Needle bearing | ||||
| 13 | 1619P07628 | 1.94 | 2.35 | |
| groove ball bearing 9x24x7 | ||||
| 14 | 2600905021 | 6.54 | 7.91 | |
| Brush Holder | ||||
| 16 | 1604449002 | 1.18 | 1.43 | |
| Inductor | ||||
| 17 | 1619P09539 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| Spring Washer | ||||
| 27 | 1619P01395 | 0.83 | 1.00 | |
| Shim | ||||
| 28 | 1619P01396 | 0.83 | 1.00 | |
| Shim | ||||
| 28 | 1619P01397 | 0.83 | 1.00 | |
| Counter Weight | ||||
| 29 | 1619P02421 | 6.54 | 7.91 | |
| Shim Ø 18,3 MM | ||||
| 30 | 2600101673 | 1.18 | 1.43 | |
| Eccentric Cog Wheel | ||||
| 31 | 1619P09533 | 23.75 | 28.74 | |
| Bearing bolt | ||||
| 34 | 2603201020 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 35 | 2600103013 | |||
| Guide Sleeve | ||||
| 36 | 2600400024 | 2.24 | 2.71 | |
| Shim Ø 13 MM | ||||
| 37 | 1619P02783 | 0.83 | 1.00 | |
| Holding Spring | ||||
| 39 | 1619P09928 | 0.83 | 1.00 | |
| Lifting Rod | ||||
| 40 | 1619P12589 | 18.19 | 22.01 | |
| Clamp Screw | ||||
| 41 | 2603400000 | 3.31 | 4.01 | |
| Sintered-Metal Bushing | ||||
| 42 | 2600301049 | 1.18 | 1.43 | |
| Lubricating Felt | ||||
| 43 | 2601020007 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 44 | 2601030006 | |||
| Socket head cap screw DIN 84-AM4x16-8.8 | ||||
| 45 | 2910021126 | 0.83 | 1.00 | |
| Base Plate | ||||
| 46 | 2601016012 | 6.54 | 7.91 | |
| Profile Beading | ||||
| 51 | 2601032017 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 55 | 2910611020 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x13-C-H | ||||
| 56 | 2910611018 | 1.18 | 1.43 | |
| Detent Pin | ||||
| 80 | 2603120019 | 1.18 | 1.43 | |
| Locking pin | ||||
| 83 | 2603105052 | 1.94 | 2.35 | |
| Needle-Roller Assembly | ||||
| 84 | 1619P01392 | 2.24 | 2.71 | |
| Spring retaining ring | ||||
| 85 | 1619P01389 | 0.83 | 1.00 | |
| Nameplate | ||||
| 808 | 1619P02393 | 0.83 | 1.00 | |
| Carbon-Brush Set | ||||
| 810 | 2604321904 | 7.58 | 9.17 | |
| Bearing Bracket | ||||
| 825 | 1619P02422 | 10.73 | 12.98 | |
| Needle bearing | ||||
| 832 | 2600917904 | 5.83 | 7.05 | |
| Screw and washer assembly DIN7985-M4x18Z1-4.8 | ||||
| 833 | 2914500009 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 847 | 2608135901 | 8.45 | 10.22 | |
| Grease Tube Albida | ||||
| 895 | 3605430003 | 23.75 | 28.74 | |
