Here you will find all available parts and drawings of the 'Bosch 0601581508 ( GST60PBE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

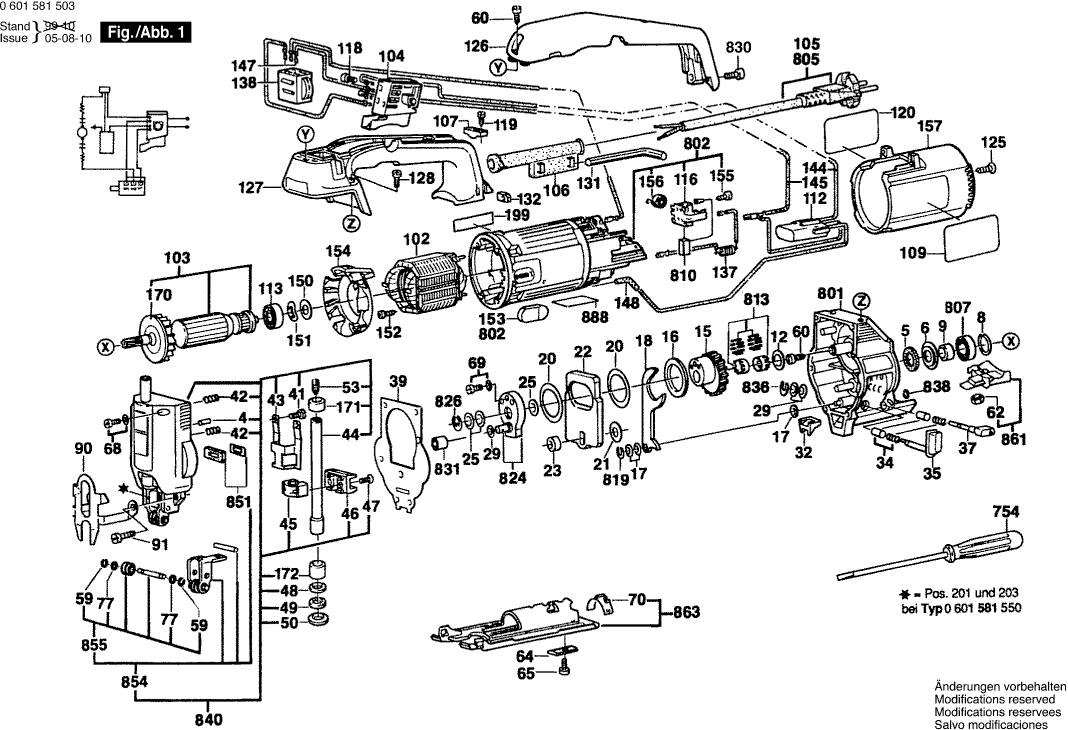

Technical drawing of model Bosch 0601581508 ( GST60PBE )
Spare parts list of model Bosch 0601581508 ( GST60PBE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Roller | ||||
| 4 | 1903201042 | 2.08 | 2.52 | |
| Felt Washer | ||||
| 5 | 2600108077 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 6 | 2600500002 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 8 | 2916660008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 9 | 2600400008 | |||
| Shim | ||||
| 12 | 2600101616 | 2.86 | 3.46 | |
| Eccentric Cog Wheel | ||||
| 15 | 1619P02581 | 21.30 | 25.77 | |
| Shim | ||||
| 16 | 2600102653 | 1.49 | 1.80 | |
| Shim | ||||
| 17 | 2600100515 | 2.40 | 2.90 | |
| Fork Lever | ||||
| 18 | 2601923004 | 3.04 | 3.68 | |
| Shim | ||||
| 20 | 2600102652 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100626 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100627 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100628 | 1.49 | 1.80 | |
| Counterweight | ||||
| 22 | 2601098003 | 8.35 | 10.10 | |
| Spacer Sleeve | ||||
| 23 | 2600309009 | 1.49 | 1.80 | |
| Shim | ||||
| 25 | 2600100575 | 2.08 | 2.52 | |
| Shim | ||||
| 25 | 2600100576 | 2.08 | 2.52 | |
| Shim | ||||
| 25 | 2600100577 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600100607 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600100568 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600100569 | 1.49 | 1.80 | |
| Air Eliminator | ||||
| 32 | 2602305042 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 34 | 2600590006 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 35 | 2602026036 | 4.18 | 5.06 | |
| Rotary Knob | ||||
| 37 | 2602026037 | 2.86 | 3.46 | |
| Seal | ||||
| 39 | 2601015050 | 2.18 | 2.64 | |
| Thread-forming tap. Screw | ||||
| 41 | 2603410048 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 42 | 2604613000 | 1.49 | 1.80 | |
| Guide Bracket | ||||
| 43 | 1616B00224 | 13.13 | 15.89 | |
| Lifting Rod | ||||
| 44 | 1619P12765 | 14.94 | 18.08 | |
| Clamping Saddle | ||||
| 45 | 2602329011 | 3.44 | 4.16 | |
| Sliding Piece | ||||
| 46 | 1619P12767 | 9.67 | 11.70 | |
| Countersunk-Head Screw | ||||
| 47 | 2603421040 | 1.49 | 1.80 | |
| Supporting Disc | ||||
| 48 | 2600112031 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 49 | 2600290017 | 1.49 | 1.80 | |
| Shim | ||||
| 50 | 2600101612 | 1.49 | 1.80 | |
| Clamp Screw | ||||
| 53 | 2603400000 | 4.18 | 5.06 | |
| Roller Set | ||||
| 59 | 1619P01375 | 10.90 | 13.19 | |
| Torx Oval-Head Screw | ||||
| 60 | 2603490024 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 62 | 2915011007 | 1.00 | 1.21 | |
| Profile Beading | ||||
| 64 | 2601030019 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 65 | 2910141197 | 1.44 | 1.74 | |
| Microencapsulated Screw | ||||
| 69 | 2914551176 | 1.00 | 1.21 | |
| Scale Plate | ||||
| 70 | 2601328044 | 2.40 | 2.90 | |
| Shim | ||||
| 77 | 2600100032 | 1.49 | 1.80 | |
| Safety Device | ||||
| 90 | 2601322021 | 4.18 | 5.06 | |
| Socket head cap screw | ||||
| 91 | 2910011128 | 1.00 | 1.21 | |
| Field | ||||
| 102 | 2604220709 | 27.81 | 33.65 | |
| Armature | ||||
| 103 | 2604010578 | 52.45 | 63.46 | |
| Grommet | ||||
| 106 | 2600703027 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 107 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 109 | 2601116647 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 112 | 2607329105 | |||
| Ball Bearing | ||||
| 113 | 1900905018 | 16.79 | 20.32 | |
| Brush Holder | ||||
| 116 | 1600A003G4 | 3.44 | 4.16 | |
| Socket head cap screw | ||||
| 118 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 119 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 120 | 2601117544 | 3.04 | 3.68 | |
| Tapping Screw | ||||
| 125 | 2910601321 | 1.49 | 1.80 | |
| Strap-Shaped Handle | ||||
| 126 | 2602025040 | 13.13 | 15.89 | |
| Strap-Shaped Handle | ||||
| 127 | 2602025041 | 9.67 | 11.70 | |
| Thread-forming tap. Screw | ||||
| 128 | 2603410054 | 2.40 | 2.90 | |
| Offset Screwdriver | ||||
| 131 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 131 | 2610364015 | 3.44 | 4.16 | |
| Square Nut | ||||
| 132 | 2603320001 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 137 | 1619P15513 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 138 | 2607230115 | |||
| Connecting Cable | ||||
| 144 | 2604448012 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 145 | 2604448062 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 147 | 2604448018 | 2.40 | 2.90 | |
| Insulation Tubing | ||||
| 148 | 2600409017 | 1.00 | 1.21 | |
| Shim | ||||
| 150 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 150 | 2600101022 | 1.49 | 1.80 | |
| Shim washer | ||||
| 150 | 2600101027 | 1.49 | 1.80 | |
| Shim | ||||
| 151 | 2600150004 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 152 | 2603435086 | 1.32 | 1.60 | |
| Plug | ||||
| 153 | 2603231032 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 154 | 2601328045 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 155 | 2603490017 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 157 | 2600508038 | 8.35 | 10.10 | |
| Spiral Spring | ||||
| 166 | 2604652009 | 1.49 | 1.80 | |
| Fan | ||||
| 170 | 2606610049 | 2.08 | 2.52 | |
| Sintered-Metal Bushing | ||||
| 171 | 2600301046 | 3.44 | 4.16 | |
| Bushing | ||||
| 172 | 2600301045 | 2.86 | 3.46 | |
| Gear Housing | ||||
| 801 | 2605808915 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 802 | 2605108904 | |||
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 807 | 2600905039 | 11.37 | 13.76 | |
| Carbon-Brush Set | ||||
| 810 | 2604320912 | 8.48 | 10.26 | |
| No longer available, no replacement | ||||
| 813 | 2607001130 | |||
| Locking washer | ||||
| 819 | 2916080007 | 2.40 | 2.90 | |
| Eccentric Disc | ||||
| 824 | 2601072901 | 7.46 | 9.03 | |
| Screw and washer assembly | ||||
| 830 | 2914501021 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 831 | 2600917900 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 836 | 2916080008 | |||
| Spring retaining ring | ||||
| 838 | 2600116009 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 840 | 2605808919 | 124.07 | 150.12 | |
| No longer available, no replacement | ||||
| 851 | 2601015901 | |||
| No longer available, no replacement | ||||
| 854 | 2601321902 | |||
| Roller Set | ||||
| 855 | 1619P01375 | 10.90 | 13.19 | |
| Fan Cover | ||||
| 861 | 2605500900 | 4.18 | 5.06 | |
| Base Plate | ||||
| 863 | 2601016903 | 16.79 | 20.32 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
