Here you will find all available parts and drawings of the 'Bosch 0601581103 (GST60PB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

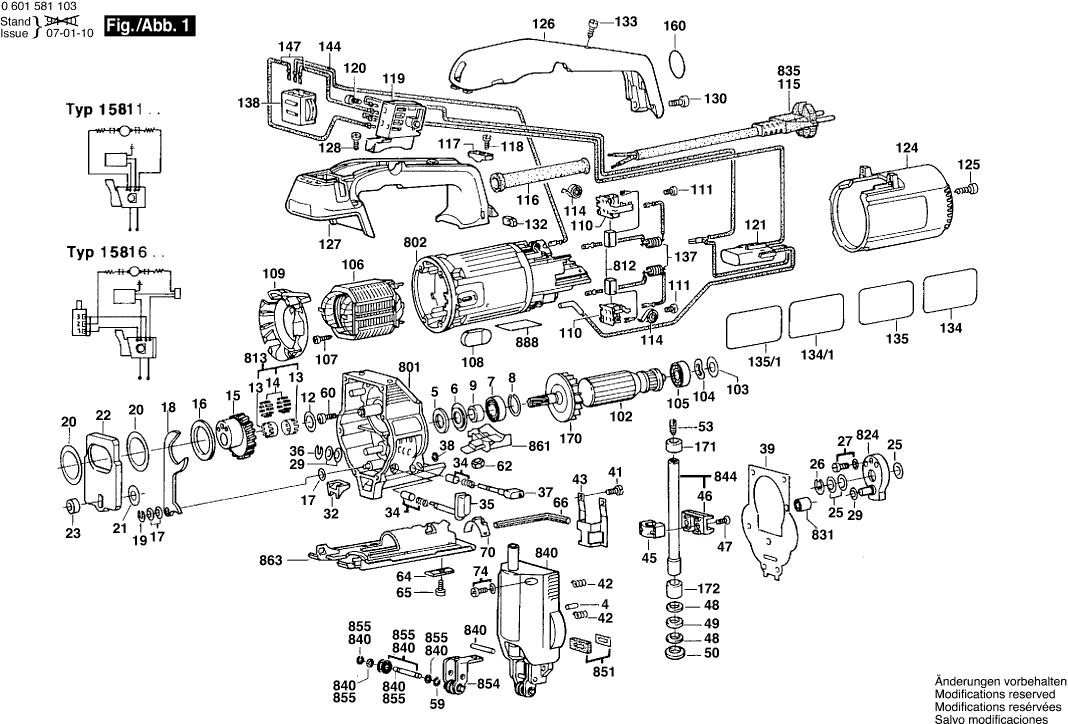

Technical drawing of model Bosch 0601581103 (GST60PB)
Spare parts list of model Bosch 0601581103 (GST60PB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle Roller | ||||
| 4 | 1903201042 | 2.08 | 2.52 | |
| Felt Washer | ||||
| 5 | 2600108077 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 6 | 2600500002 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 7 | 2600905021 | 8.35 | 10.10 | |
| Spring retaining ring | ||||
| 8 | 2916660008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 9 | 2600400008 | |||
| Shim | ||||
| 12 | 2600101616 | 2.86 | 3.46 | |
| Needle-Roller Cage | ||||
| 13 | 2600913036 | 1.49 | 1.80 | |
| Needle Roller | ||||
| 14 | 2603201037 | 2.40 | 2.90 | |
| Eccentric Cog Wheel | ||||
| 15 | 1619P02581 | 21.30 | 25.77 | |
| Shim | ||||
| 16 | 2600102653 | 1.49 | 1.80 | |
| Shim | ||||
| 17 | 2600100515 | 2.40 | 2.90 | |
| Fork Lever | ||||
| 18 | 2601923004 | 3.04 | 3.68 | |
| Locking washer | ||||
| 19 | 2916080007 | 2.40 | 2.90 | |
| Shim | ||||
| 20 | 2600102652 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100626 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100627 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600100628 | 1.49 | 1.80 | |
| Counterweight | ||||
| 22 | 2601098003 | 8.35 | 10.10 | |
| Spacer Sleeve | ||||
| 23 | 2600309009 | 1.49 | 1.80 | |
| Shim | ||||
| 25 | 2600100575 | 2.08 | 2.52 | |
| Shim | ||||
| 25 | 2600100576 | 2.08 | 2.52 | |
| Shim | ||||
| 25 | 2600100577 | 1.49 | 1.80 | |
| Locking washer | ||||
| 26 | 2916080910 | 2.08 | 2.52 | |
| Screw and washer assembly | ||||
| 27 | 2914501028 | 1.00 | 1.21 | |
| Shim | ||||
| 29 | 2600100607 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600100568 | 1.49 | 1.80 | |
| Shim | ||||
| 29 | 2600100569 | 1.49 | 1.80 | |
| Air Eliminator | ||||
| 32 | 2602305042 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 34 | 2600590006 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 35 | 2602026036 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 36 | 2916080008 | |||
| Rotary Knob | ||||
| 37 | 2602026037 | 2.86 | 3.46 | |
| Spring retaining ring | ||||
| 38 | 2600116006 | 1.49 | 1.80 | |
| Seal | ||||
| 39 | 2601015050 | 2.18 | 2.64 | |
| Thread-forming tap. Screw | ||||
| 41 | 2603410048 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 42 | 2604613000 | 1.49 | 1.80 | |
| Guide Bracket | ||||
| 43 | 1616B00224 | 13.13 | 15.89 | |
| Clamping Saddle | ||||
| 45 | 2602329011 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 46 | 2601321022 | |||
| Countersunk-Head Screw | ||||
| 47 | 2603421040 | 1.49 | 1.80 | |
| Supporting Disc | ||||
| 48 | 2600112031 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 49 | 2600290017 | 1.49 | 1.80 | |
| Shim | ||||
| 50 | 2600101612 | 1.49 | 1.80 | |
| Clamp Screw | ||||
| 53 | 2603400000 | 4.18 | 5.06 | |
| Roller Set | ||||
| 59 | 1619P01375 | 10.90 | 13.19 | |
| Torx Oval-Head Screw | ||||
| 60 | 2603490024 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 62 | 2915011007 | 1.00 | 1.21 | |
| Profile Beading | ||||
| 64 | 2601030019 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 65 | 2910141197 | 1.44 | 1.74 | |
| Offset Screwdriver | ||||
| 66 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 66 | 2610364015 | 3.44 | 4.16 | |
| Scale Plate | ||||
| 70 | 2601328044 | 2.40 | 2.90 | |
| Thread-forming tap. Screw | ||||
| 74 | 2603410049 | 1.49 | 1.80 | |
| Armature | ||||
| 102 | 2604010578 | 52.45 | 63.46 | |
| Shim | ||||
| 103 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 103 | 2600101022 | 1.49 | 1.80 | |
| Shim washer | ||||
| 103 | 2600101027 | 1.49 | 1.80 | |
| Shim | ||||
| 104 | 2600150004 | 2.08 | 2.52 | |
| Ball Bearing | ||||
| 105 | 1900905018 | 16.79 | 20.32 | |
| Field | ||||
| 106 | 2604220445 | 27.81 | 33.65 | |
| Cross Recessed-Head Screw | ||||
| 107 | 2603435015 | 2.08 | 2.52 | |
| Plug | ||||
| 108 | 2603231032 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 109 | 2601328045 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 110 | 1600A003G4 | 3.44 | 4.16 | |
| Torx Oval-Head Screw | ||||
| 111 | 2603490017 | 2.08 | 2.52 | |
| Spiral Spring | ||||
| 114 | 2604652009 | 1.49 | 1.80 | |
| Grommet | ||||
| 116 | 2600703011 | 2.86 | 3.46 | |
| Grommet | ||||
| 116 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 116 | 2600703013 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 117 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 118 | 2910611019 | 2.86 | 3.46 | |
| Switch | ||||
| 119 | 2607200260 | 9.67 | 11.70 | |
| Socket head cap screw | ||||
| 120 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 121 | 2607329105 | |||
| Housing Cover | ||||
| 124 | 2600508038 | 8.35 | 10.10 | |
| Tapping Screw | ||||
| 125 | 2910601321 | 1.49 | 1.80 | |
| Strap-Shaped Handle | ||||
| 126 | 2602025040 | 13.13 | 15.89 | |
| Strap-Shaped Handle | ||||
| 127 | 2602025043 | 12.82 | 15.51 | |
| Thread-forming tap. Screw | ||||
| 128 | 2603410054 | 2.40 | 2.90 | |
| Screw and washer assembly | ||||
| 130 | 2914501021 | 1.00 | 1.21 | |
| Square Nut | ||||
| 132 | 2603320001 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 133 | 2603490024 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 134/1 | 2601110762 | 2.40 | 2.90 | |
| Sticker | ||||
| 135 | 2601110729 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 137 | 2604465106 | |||
| Cable | ||||
| 138 | 2604448005 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 144 | 2604448012 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 147 | 2604448062 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 160 | 2601110041 | |||
| Fan | ||||
| 170 | 2606610049 | 2.08 | 2.52 | |
| Sintered-Metal Bushing | ||||
| 171 | 2600301046 | 3.44 | 4.16 | |
| Bushing | ||||
| 172 | 2600301045 | 2.86 | 3.46 | |
| Gear Housing | ||||
| 801 | 2605808915 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 802 | 2605108904 | |||
| Carbon-Brush Set | ||||
| 810 | 2604320912 | 8.48 | 10.26 | |
| Carbon-Brush Set | ||||
| 812 | 2604320912 | 8.48 | 10.26 | |
| No longer available, no replacement | ||||
| 813 | 2607001130 | |||
| Eccentric Disc | ||||
| 824 | 2601072901 | 7.46 | 9.03 | |
| Needle bearing | ||||
| 831 | 2600917900 | 8.35 | 10.10 | |
| Power supply cord | ||||
| 835 | 1607000385 | 13.13 | 15.89 | |
| Gear Cover | ||||
| 840 | 2605808916 | 88.83 | 107.48 | |
| No longer available, no replacement | ||||
| 844 | 2600780913 | |||
| No longer available, no replacement | ||||
| 851 | 2601015901 | |||
| Roller Lever | ||||
| 854 | 1619P00777 | 14.94 | 18.08 | |
| Roller Set | ||||
| 855 | 1619P01375 | 10.90 | 13.19 | |
| Fan Cover | ||||
| 861 | 2605500900 | 4.18 | 5.06 | |
| Base Plate | ||||
| 863 | 2601016903 | 16.79 | 20.32 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
