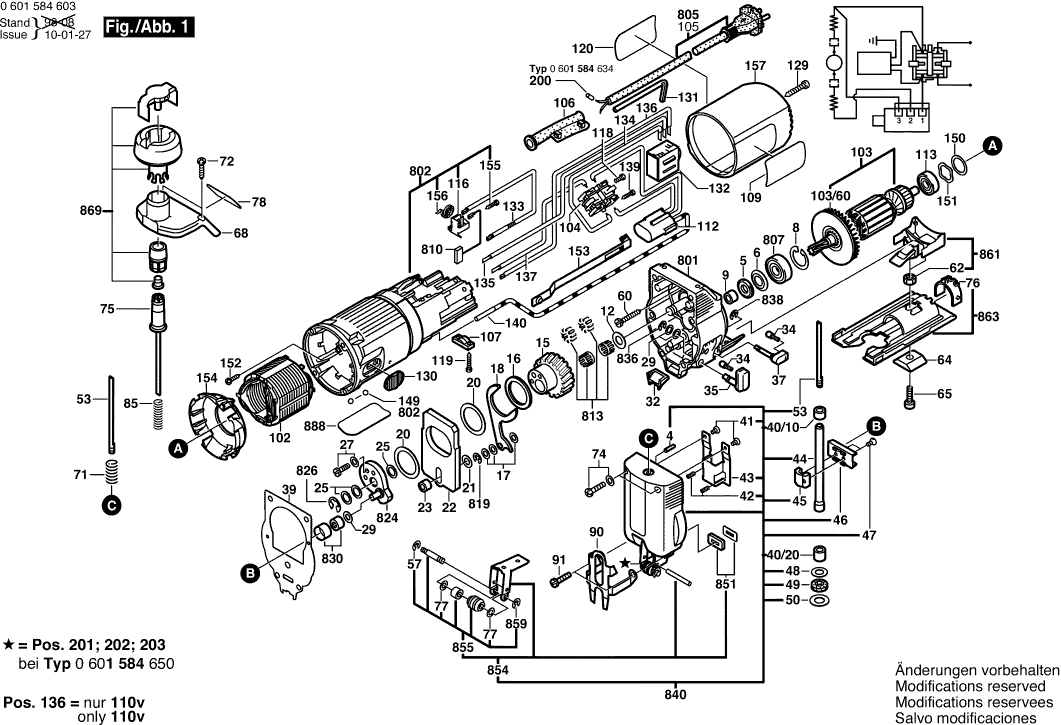

Technical drawing of model Bosch 0601997579 ( GST2000MILLENNIUM )

Spare parts list of model Bosch 0601997579 ( GST2000MILLENNIUM )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Needle Roller DIN 5402-A3x11,8-G2
4 1903201042 1.70 2.06
Felt Washer
5 2600108077 1.18 1.43
Cupped Washer
6 2600500002 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
8 2916660008 1.70 2.06
Receptacle
9 2600400008 1.18 1.43
Shim 0,5 MM
12 2600101616 2.24 2.71
Eccentric Cog Wheel
15 1619P02581 18.19 22.01
Shim 1,0 MM
16 2600102653 1.18 1.43
Shim 0,3 MM
17 2600100515 1.94 2.35
Fork Lever
18 2601923004 2.24 2.71
Shim 0,5 MM
20 2600102652 1.18 1.43
Shim 0,2 MM
21 2600100626 1.18 1.43
Shim 0,3 MM
21 2600100627 1.18 1.43
Shim 0,5 MM
21 2600100628 1.18 1.43
Counterweight
22 2601098003 6.54 7.91
Spacer Sleeve
23 2600309009 1.18 1.43
Shim 0,2 MM
25 2600100575 1.70 2.06
Shim 0,3 MM
25 2600100576 1.70 2.06
Shim 0,5 MM
25 2600100577 1.18 1.43
Microencapsulated Screw DIN 7985-M4x12MM
27 2914551176 0.83 1.00
Shim 0,3 MM
29 2600100607 1.18 1.43
Shim 0,5 MM
29 2600100568 1.18 1.43
Shim 1,0 MM
29 2600100569 1.18 1.43
Air Eliminator
32 2602305042 1.18 1.43
Ratchet Cap
34 2600590006 1.18 1.43
Rotary Knob BLACK
35 2602026036 3.31 4.01
Rotary Knob BLACK
37 2602026037 2.24 2.71
Seal
39 2601015050 1.94 2.35
Sintered-Metal Bushing
40/10 2600301046 2.71 3.28
Bushing
40/20 2600301045 2.24 2.71
Thread-forming tap. Screw M4x8
41 2603410048 1.18 1.43
Compression Spring
42 2604613000 1.18 1.43
Guide Bracket
43 1616B00224 11.88 14.37
Lifting Rod
44 1619P12765 12.41 15.02
Clamping Saddle
45 2602329011 2.71 3.28
Sliding Piece
46 1619P12767 7.58 9.17
Countersunk-Head Screw DIN 7962-M3,5x8-10.9
47 2603421040 1.18 1.43
Supporting Disc 0,5 MM
48 2600112031 1.18 1.43
Seal Ring 0,5 MM
49 2600290017 1.18 1.43
Shim 0,5 MM
50 2600101612 1.18 1.43
Clamp Screw
53 2603490011 5.33 6.45
Locking washer
57 2600116011 1.70 2.06
Torx Oval-Head Screw 4x25
60 2603490024 1.18 1.43
Hex Nut DIN 934-M6-8-A
62 2915011007 0.83 1.00
Profile Beading
64 2601030019 1.94 2.35
Hex Socket Head Cap Screw DIN 912-M6x16-8.8
65 2910141197 0.83 1.00
Flanged Fitting
68 2605702016 5.83 7.05
No longer available, no replacement
71 2604617003
Thread-forming tap. Screw M 5x16
72 2603410054 1.94 2.35
Thread-forming tap. Screw M4x12 MM
74 2603410049 1.18 1.43
No longer available, no replacement
75 2606491015
Scale Plate
76 2601328044 1.94 2.35
Shim 0,2 MM
77 2600100032 1.18 1.43
Sticker
78 2601110930 1.18 1.43
Compression Spring
85 2604610040 1.18 1.43
Safety Device
90 2601322021 3.31 4.01
Socket head cap screw DIN 84-AM4x18-5.8
91 2910011128 0.83 1.00
Field 230-240V
102 2604220447 20.42 24.71
Armature 230-240V
103 2604010578 44.82 54.23
Fan
103/60 2606610049 1.70 2.06
Switch
104 2607200674 12.41 15.02
Grommet Ø6,5-Ø6,9x95 MM
106 2600703027 1.18 1.43
Cable Clip
107 2601035001 1.18 1.43
Manufacturer's nameplate
109 2601117412 2.71 3.28
Suppression Filter
112 2607329104 7.58 9.17
Ball Bearing 7x22x7
113 1900905018 13.93 16.86
Brush Holder
116 1600A003G4 2.71 3.28
Brush Holder
116 2601323022 2.24 2.71
Socket head cap screw M3x6,5-4.8
118 2603410001 1.18 1.43
Screw 4x16
119 2603490022 0.83 1.00
Reference Plate
120 2601117400 2.71 3.28
Tapping Screw DIN 7982-ST3,9x22C-H
129 2910601321 1.18 1.43
Switch Handle BLACK
130 2602026015 1.18 1.43
Offset Screwdriver
131 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
131 2610364015 2.71 3.28
No longer available, no replacement
132 2607230115
Suppressor Box
133 2604465106 3.31 4.01
Connecting Cable L=86MM WHITE
134 2604448044 0.83 1.00
Cable L=103MM WHITE
135 2604448140 0.83 1.00
Connecting Cable L=128MM BLUE
136 2604448046 1.18 1.43
Connecting Cable L=125MM WHITE
137 2604448040 1.94 2.35
Insulation Tubing
140 2600409017 0.83 1.00
Plug BLUE
149 2603231032 1.18 1.43
Shim washer 0,3 MM
150 2600101027 1.18 1.43
Shim
151 2600150004 1.70 2.06
Tapping Screw
152 2603435086 1.18 1.43
Adjusting Slide BLUE
153 2602319005 1.18 1.43
Cover Disc
154 2601328045 1.70 2.06
Torx Oval-Head Screw 3x10
155 2603490017 1.70 2.06
Spiral Spring
156 2604652009 1.18 1.43
Housing Cover BLUE
157 2600508037 5.83 7.05
Sintered-Metal Bushing
171 2600301046 2.71 3.28
Bushing
172 2600301045 2.24 2.71
Safety Device
201 2601322021 3.31 4.01
Socket head cap screw DIN 84-AM4x18-5.8
203 2910011128 0.83 1.00
Gear Housing
801 2605808917 60.65 73.39
No longer available, no replacement
802 2605108904
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
groove ball bearing 9x24x7
807 2600905039 9.53 11.53
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 2604320912 7.58 9.17
Needle-Roller Cage
813 2607001130 4.70 5.69
Locking Washer DIN 6799-4-FSt
819 2916080007 1.94 2.35
Eccentric Disc
824 2601072901 5.83 7.05
Locking Washer DIN 6799-7-FSt
826 2916080910 1.70 2.06
Needle bearing
830 2600917900 6.54 7.91
No longer available, no replacement
836 2916080008
Spring retaining ring
838 2600116009 0.83 1.00
Gear Cover
840 2605808921 81.47 98.58
No longer available, no replacement
851 2601015901
No longer available, no replacement
854 2601321902
Roller Set
855 1619P01375 8.45 10.22
No longer available, no replacement
859 2916080005
Fan Cover
861 2605500900 3.31 4.01
Base Plate
863 2601016903 12.41 15.02
No longer available, no replacement
869 2602026900
Nameplate
888 160111A3H3 1.94 2.35
