Here you will find all available parts and drawings of the 'Bosch 3601EB1000 (GST18V-155BC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

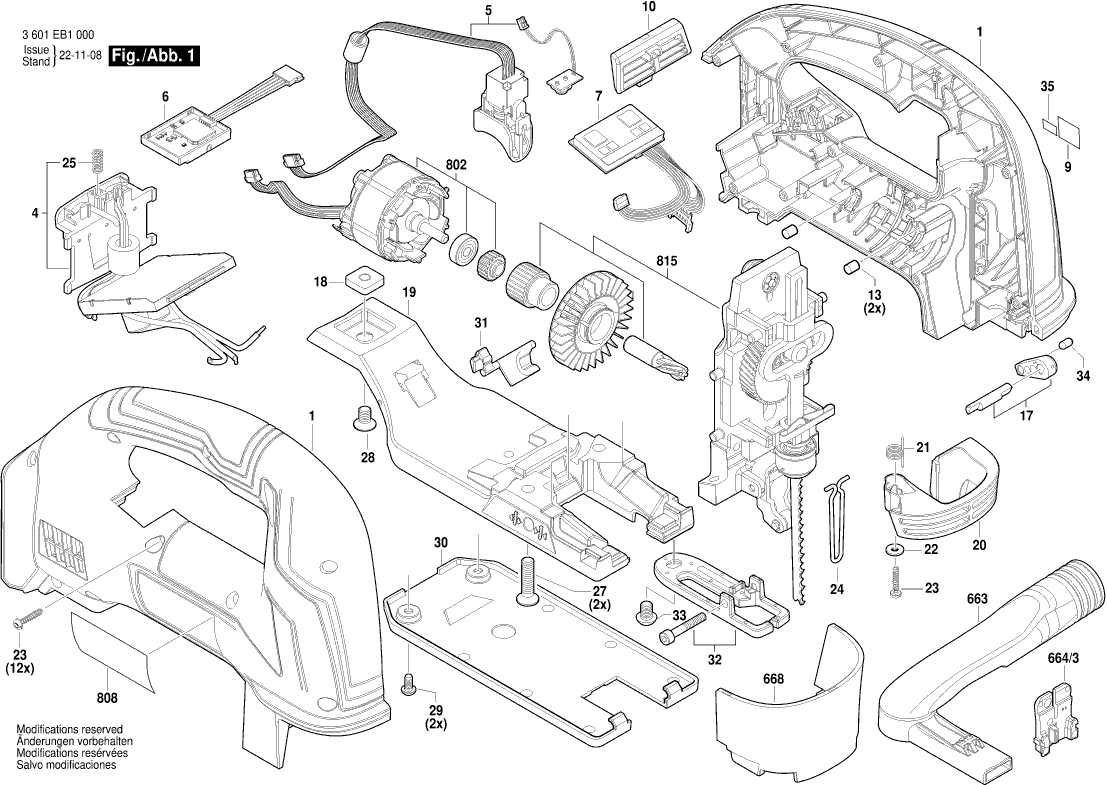

Technical drawing of model Bosch 3601EB1000 (GST18V-155BC)
Spare parts list of model Bosch 3601EB1000 (GST18V-155BC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 160580664P | 27.81 | 33.65 | |
| Electronics Module | ||||
| 4 | 16072335MW | 110.30 | 133.46 | |
| Electronic Assembly | ||||
| 5 | 1600A02JL4 | 21.30 | 25.77 | |
| Electronics Module | ||||
| 6 | 1619P17197 | 31.42 | 38.02 | |
| Electronics Module | ||||
| 7 | 16072335PL | 27.81 | 33.65 | |
| Manufacturer's nameplate GST 18V-155 BC | ||||
| 9 | 160111C4UG | 2.40 | 2.90 | |
| Safety Switch | ||||
| 10 | 1600A02166 | 2.40 | 2.90 | |
| Damping rubber | ||||
| 13 | 2603100056 | 1.49 | 1.80 | |
| Control Lever | ||||
| 17 | 1600A020YW | 4.18 | 5.06 | |
| fixing plate | ||||
| 18 | 2600040004 | 2.86 | 3.46 | |
| Base Plate | ||||
| 19 | 1600A02F68 | 34.82 | 42.13 | |
| Ejection Lever | ||||
| 20 | 1600A020MG | 9.67 | 11.70 | |
| Torsion Spring | ||||
| 21 | 160465101K | 2.08 | 2.52 | |
| Shim | ||||
| 22 | 2600100123 | 1.49 | 1.80 | |
| Torx Flat-Head Screw | ||||
| 23 | 2609110201 | 2.08 | 2.52 | |
| Protecting Cover | ||||
| 24 | 1600A028FZ | 2.40 | 2.90 | |
| Compression Spring | ||||
| 25 | 1609280477 | 1.49 | 1.80 | |
| Screw M6x25 Tuflok DIN267-28 | ||||
| 27 | 1603430063 | 1.00 | 1.21 | |
| Screw | ||||
| 28 | 160343007C | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 29 | 2603410048 | 1.49 | 1.80 | |
| Work Board | ||||
| 30 | 1600A01BX9 | 9.67 | 11.70 | |
| Air Deflection | ||||
| 31 | 1600A020YY | 1.49 | 1.80 | |
| Guide | ||||
| 32 | 1600A02JL3 | 23.90 | 28.92 | |
| Screw | ||||
| 33 | 160343008J | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 34 | 1600A01BV3 | 1.00 | 1.21 | |
| Sticker | ||||
| 35 | 160111C53D | 2.08 | 2.52 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 126.98 | 153.65 | |
| Fast Charger | ||||
| 653 | 2607226251 | 75.38 | 91.21 | |
| Suction Nozzle | ||||
| 663 | 1600A01C3Z | 10.90 | 13.19 | |
| Splintering Protector | ||||
| 664/3 | 1600A0208K | 1.49 | 1.80 | |
| Covering hood | ||||
| 668 | 1600A01T4N | 3.44 | 4.16 | |
| Damping rubber | ||||
| 801 | 2603100056 | 1.49 | 1.80 | |
| EC motor | ||||
| 802 | 1607000EW9 | 88.83 | 107.48 | |
| Nameplate | ||||
| 808 | 160111A9TX | 2.40 | 2.90 | |
| Gear Unit | ||||
| 815 | 1607000EX0 | 122.80 | 148.59 | |
| Lifting Rod | ||||
| 816 | 1617S023D7 | 64.67 | 78.25 | |
