Here you will find all available parts and drawings of the 'Bosch 3601EB2000 ( GST18V-125S )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

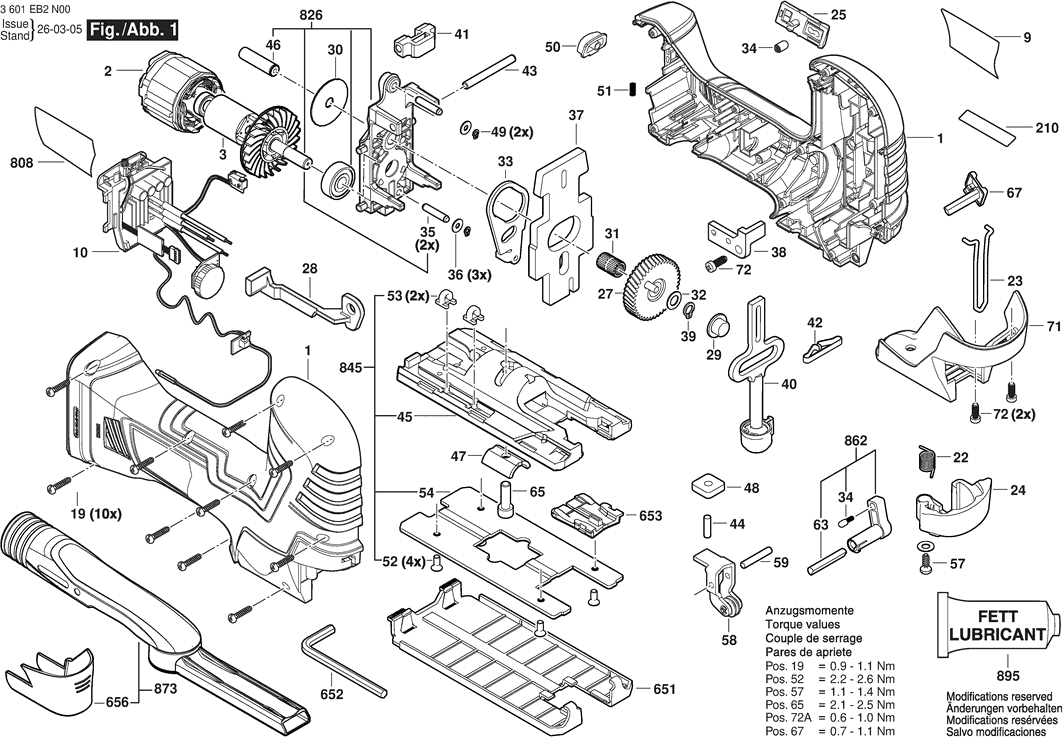

Technical drawing of model Bosch 3601EB2000 ( GST18V-125S )
Spare parts list of model Bosch 3601EB2000 ( GST18V-125S )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1619PS6941 | 18.94 | 22.92 | |
| Stator | ||||
| 2 | 1619P16473 | 31.42 | 38.02 | |
| Rotor | ||||
| 3 | 1619P16471 | 27.81 | 33.65 | |
| Manufacturer's nameplate | ||||
| 9 | 1619P17551 | 2.40 | 2.90 | |
| Electronics Module | ||||
| 10 | 1619P16534 | 71.68 | 86.73 | |
| Torx Flat-Head Screw | ||||
| 19 | 2609110201 | 2.08 | 2.52 | |
| Torsion Spring | ||||
| 22 | 1619P07152 | 1.00 | 1.21 | |
| Protecting Cover | ||||
| 23 | 1619P07128 | 1.49 | 1.80 | |
| Lever Switch | ||||
| 24 | 1619P07151 | 2.86 | 3.46 | |
| Switch Button | ||||
| 25 | 1619P16220 | 2.86 | 3.46 | |
| Eccentric Cog Wheel | ||||
| 27 | 1619P16223 | 10.90 | 13.19 | |
| Adjusting Slide | ||||
| 28 | 1619P16221 | 2.40 | 2.90 | |
| Needle bearing | ||||
| 29 | 2600914022 | 6.73 | 8.14 | |
| Shim | ||||
| 30 | 1619P07576 | 2.08 | 2.52 | |
| Needle-Roller Assembly | ||||
| 31 | 2600913040 | 5.81 | 7.03 | |
| Shim | ||||
| 32 | 2600101077 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 33 | 1619P07137 | 4.18 | 5.06 | |
| Ratchet Cap | ||||
| 34 | 2600590006 | 1.49 | 1.80 | |
| Bearing bolt | ||||
| 35 | 1619P07140 | 1.00 | 1.21 | |
| Shim | ||||
| 36 | 2600100588 | 1.49 | 1.80 | |
| Counterweight | ||||
| 37 | 1619P07133 | 10.90 | 13.19 | |
| Cap | ||||
| 38 | 1619P16714 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 39 | 2916640905 | 1.49 | 1.80 | |
| Lifting Rod | ||||
| 40 | 1619P07147 | 43.12 | 52.18 | |
| Plain bearing | ||||
| 41 | 1619P08903 | 2.08 | 2.52 | |
| Coiled Spring | ||||
| 42 | 1619X08384 | 2.08 | 2.52 | |
| Needle Roller | ||||
| 43 | 1619P07139 | 2.08 | 2.52 | |
| Bearing bolt | ||||
| 44 | 1619P07143 | 1.00 | 1.21 | |
| Base Plate | ||||
| 45 | 1619P16715 | 14.94 | 18.08 | |
| Bearing bolt | ||||
| 46 | 1619P07138 | 2.40 | 2.90 | |
| Profile Beading | ||||
| 47 | 2601030022 | 2.40 | 2.90 | |
| fixing plate | ||||
| 48 | 1619P07163 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 49 | 2916640001 | 1.00 | 1.21 | |
| Headlamp Switch | ||||
| 50 | 1619P16476 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 51 | 1609280477 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 52 | 1613435023 | 1.00 | 1.21 | |
| Key Holder | ||||
| 53 | 1619P10589 | 1.49 | 1.80 | |
| Work Board | ||||
| 54 | 1619P16713 | 7.46 | 9.03 | |
| Torx Oval-Head Screw | ||||
| 57 | 1619P02848 | 1.49 | 1.80 | |
| Roller Lever | ||||
| 58 | 1619P13426 | 7.46 | 9.03 | |
| Bearing bolt | ||||
| 59 | 1619P07159 | 1.00 | 1.21 | |
| Change-Over Switch | ||||
| 62 | 1619P07157 | 2.08 | 2.52 | |
| Control Shaft | ||||
| 63 | 1619P07156 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 65 | 1619X04887 | 2.08 | 2.52 | |
| Switch Slide | ||||
| 67 | 1619P07158 | 2.86 | 3.46 | |
| Cover | ||||
| 71 | 1619P16199 | 14.94 | 18.08 | |
| Cross Recessed-Head Screw | ||||
| 72 | 2603435015 | 2.08 | 2.52 | |
| Sticker | ||||
| 210 | 1619P17547 | 5.81 | 7.03 | |
| Pad | ||||
| 651 | 1619P16710 | 4.94 | 5.98 | |
| Offset Screwdriver | ||||
| 652 | 1619P14506 | 1.49 | 1.80 | |
| Splintering Protector | ||||
| 653 | 2601016093 | 4.18 | 5.06 | |
| Covering hood | ||||
| 656 | 1619P07166 | 2.40 | 2.90 | |
| Battery Pack | ||||
| 657 | 1617S020T2 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 669 | 2607226251 | 75.38 | 91.21 | |
| Nameplate | ||||
| 808 | 1619P16216 | 2.40 | 2.90 | |
| Bearing Bracket | ||||
| 826 | 1619P08888 | 18.94 | 22.92 | |
| Base Plate | ||||
| 845 | 1619P16712 | 18.94 | 22.92 | |
| Change-Over Switch | ||||
| 862 | 1619P08890 | 3.44 | 4.16 | |
| Suction Socket | ||||
| 873 | 1619P17472 | 10.90 | 13.19 | |
| Grease Tube | ||||
| 895 | 3605430003 | 27.81 | 33.65 | |
