Here you will find all available parts and drawings of the 'Bosch 3601E8J300 ( GST18V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

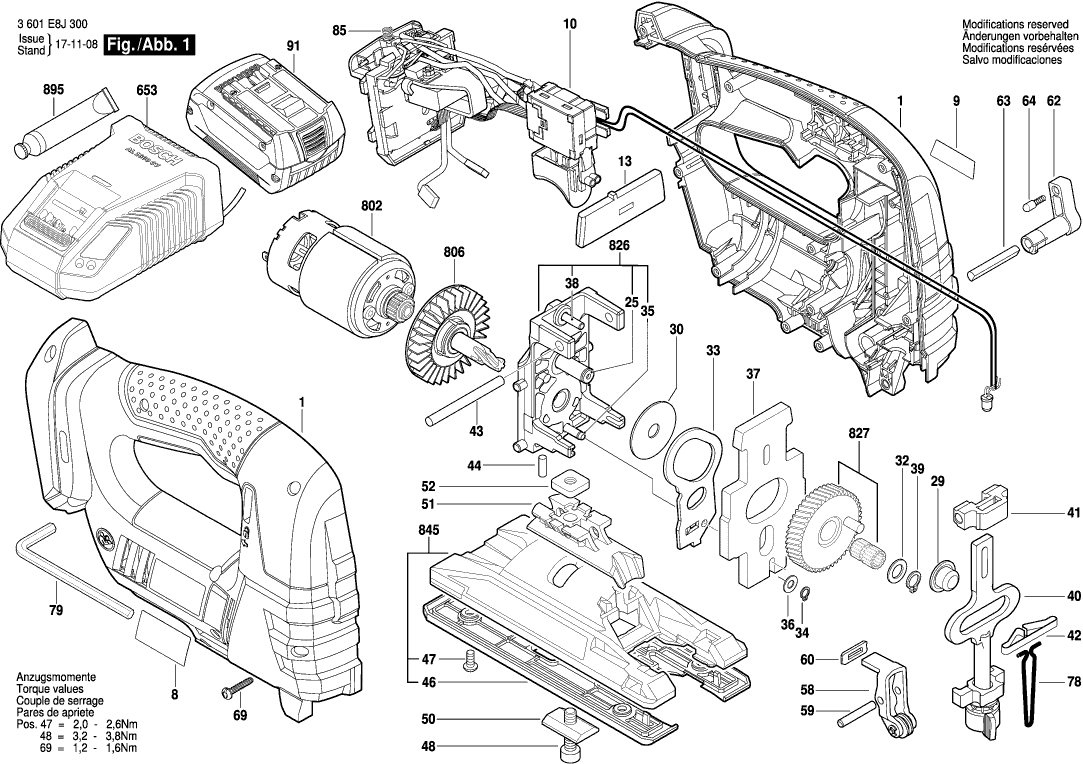

Technical drawing of model Bosch 3601E8J300 ( GST18V-LI )
Spare parts list of model Bosch 3601E8J300 ( GST18V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105177 | 40.61 | 49.14 | |
| Nameplate | ||||
| 8 | 2601111459 | 1.94 | 2.35 | |
| Manufacturer's nameplate GST 18V-LI | ||||
| 9 | 2601111560 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 10 | 1607233518 | 91.56 | 110.79 | |
| Adjusting Slide | ||||
| 13 | 2607200686 | 1.70 | 2.06 | |
| Bearing bolt | ||||
| 25 | 2603105080 | 1.94 | 2.35 | |
| Needle bearing | ||||
| 29 | 2600914022 | 5.33 | 6.45 | |
| Shim 0,5 MM | ||||
| 30 | 2600101048 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 32 | 2600101077 | 1.18 | 1.43 | |
| Fork Lever | ||||
| 33 | 2601923012 | 3.31 | 4.01 | |
| Spring retaining ring DIN 471-4x0,4-FSt | ||||
| 34 | 2916640001 | 0.83 | 1.00 | |
| Bearing bolt | ||||
| 35 | 2603105091 | 1.94 | 2.35 | |
| Shim 0,5 MM | ||||
| 36 | 2600100588 | 1.18 | 1.43 | |
| Counterweight | ||||
| 37 | 2601098098 | 7.58 | 9.17 | |
| Needle Roller | ||||
| 38 | 2603201055 | 1.18 | 1.43 | |
| Spring retaining ring 8x0,8 N31A MR7 | ||||
| 39 | 2916640905 | 1.18 | 1.43 | |
| Lifting Rod | ||||
| 40 | 2600780173 | 33.45 | 40.47 | |
| Plain bearing | ||||
| 41 | 2605801038 | 4.10 | 4.96 | |
| Plain bearing | ||||
| 41 | 1619P08903 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 42 | 2604613004 | 1.18 | 1.43 | |
| Needle Roller | ||||
| 43 | 2603201089 | 4.70 | 5.69 | |
| Bearing bolt | ||||
| 44 | 2603105084 | 1.70 | 2.06 | |
| Work Board | ||||
| 46 | 2601099225 | 6.54 | 7.91 | |
| Thread-forming tap. Screw M4x8 | ||||
| 47 | 2603410048 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw DIN 912-M6x25-8.8 | ||||
| 48 | 2910141203 | 1.18 | 1.43 | |
| Profile Beading | ||||
| 50 | 2601030019 | 1.94 | 2.35 | |
| Location Piece | ||||
| 51 | 2605500207 | 9.53 | 11.53 | |
| fixing plate | ||||
| 52 | 2600040004 | 2.24 | 2.71 | |
| Roller Lever | ||||
| 58 | 2601321077 | 9.53 | 11.53 | |
| Straight Pin | ||||
| 59 | 2609002725 | 0.83 | 1.00 | |
| Sealing Plate | ||||
| 60 | 2601015077 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 62 | 2601015113 | 1.70 | 2.06 | |
| Control Shaft | ||||
| 63 | 2603124155 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | 2600590006 | 1.18 | 1.43 | |
| Torx Flat-Head Screw 3x16 | ||||
| 69 | 2609110201 | 1.70 | 2.06 | |
| Protecting Cover | ||||
| 78 | 2603105136 | 1.94 | 2.35 | |
| Offset Screwdriver | ||||
| 79 | 1907950006 | 3.12 | 3.78 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 79 | 2610364015 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 85 | 2604690055 | 0.83 | 1.00 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 91 | 1607A350B2 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 91 | 1607A350M0 | 91.56 | 110.79 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 91.56 | 110.79 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger ROK GAL 1880 CV 220V/14,4-18V | ||||
| 653 | 2607225933 | 113.29 | 137.08 | |
| Fast Charger | ||||
| 653 | 2607225333 | 106.68 | 129.08 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| DC motor 18V | ||||
| 802 | 2607022831 | 67.25 | 81.37 | |
| Coupling Half | ||||
| 806 | 2606445016 | 12.41 | 15.02 | |
| Bearing Bracket | ||||
| 826 | 2605807946 | 20.42 | 24.71 | |
| Eccentric Cog Wheel | ||||
| 827 | 2609001931 | 18.19 | 22.01 | |
| base plate | ||||
| 845 | 2601016906 | 23.75 | 28.74 | |
| Grease Tube Albida | ||||
| 895 | 3605430003 | 23.75 | 28.74 | |
