Here you will find all available parts and drawings of the 'Bosch 3601EA5101 ( GST18V-LIS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

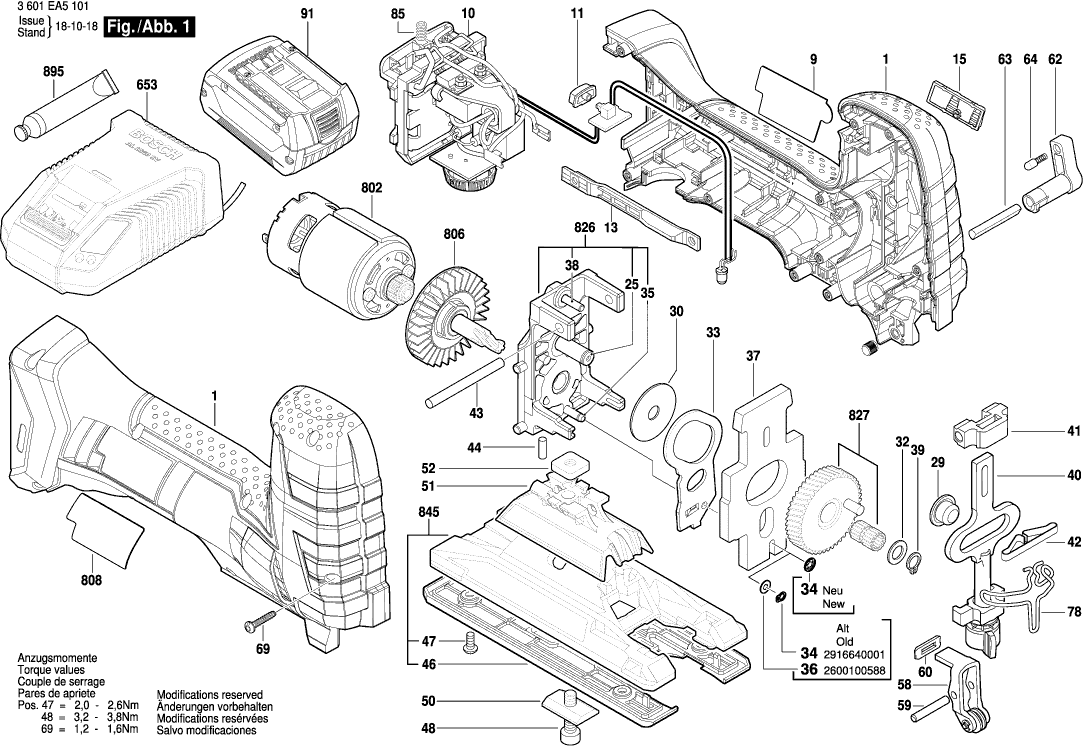

Technical drawing of model Bosch 3601EA5101 ( GST18V-LIS )
Spare parts list of model Bosch 3601EA5101 ( GST18V-LIS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105213 | 26.84 | 32.48 | |
| Manufacturer's nameplate GST 18 V-LI S | ||||
| 9 | 2601113256 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 10 | 1607233597 | 81.47 | 98.58 | |
| Headlamp Switch | ||||
| 11 | 2600030030 | 1.94 | 2.35 | |
| Adjusting Slide | ||||
| 13 | 2601099294 | 1.70 | 2.06 | |
| Operating Element | ||||
| 15 | 2602026188 | 2.24 | 2.71 | |
| Bearing bolt | ||||
| 25 | 2603105080 | 1.94 | 2.35 | |
| Needle bearing | ||||
| 29 | 2600914022 | 5.33 | 6.45 | |
| Shim 0,5 MM | ||||
| 30 | 2600101048 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 32 | 2600101077 | 1.18 | 1.43 | |
| Fork Lever | ||||
| 33 | 2601923012 | 3.31 | 4.01 | |
| Retaining Washer | ||||
| 34 | 1600A008C6 | 0.83 | 1.00 | |
| Bearing bolt | ||||
| 35 | 2603105091 | 1.94 | 2.35 | |
| Counterweight | ||||
| 37 | 2601098098 | 7.58 | 9.17 | |
| Needle Roller | ||||
| 38 | 2603201055 | 1.18 | 1.43 | |
| Spring retaining ring 8x0,8 N31A MR7 | ||||
| 39 | 2916640905 | 1.18 | 1.43 | |
| Lifting Rod | ||||
| 40 | 2600780173 | 33.45 | 40.47 | |
| Plain bearing | ||||
| 41 | 2605801038 | 4.10 | 4.96 | |
| Plain bearing | ||||
| 41 | 1619P08903 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 42 | 2604613004 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 42 | 160461201E | 1.10 | 1.33 | |
| Needle Roller | ||||
| 43 | 2603201089 | 4.70 | 5.69 | |
| Bearing bolt | ||||
| 44 | 2603105143 | 0.83 | 1.00 | |
| Work Board | ||||
| 46 | 2601099225 | 6.54 | 7.91 | |
| Thread-forming tap. Screw M4x8 | ||||
| 47 | 2603410048 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw DIN 912-M6x25-8.8 | ||||
| 48 | 2910141203 | 1.18 | 1.43 | |
| Profile Beading | ||||
| 50 | 2601030019 | 1.94 | 2.35 | |
| Location Piece | ||||
| 51 | 2605500221 | 13.93 | 16.86 | |
| fixing plate | ||||
| 52 | 2600040004 | 2.24 | 2.71 | |
| Roller Lever | ||||
| 58 | 2601321077 | 9.53 | 11.53 | |
| Straight Pin | ||||
| 59 | 2609002725 | 0.83 | 1.00 | |
| Sealing Plate | ||||
| 60 | 2601015077 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 62 | 2601015113 | 1.70 | 2.06 | |
| Control Shaft | ||||
| 63 | 2603124155 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | 2600590006 | 1.18 | 1.43 | |
| Torx Flat-Head Screw 3x16 | ||||
| 69 | 2609110201 | 1.70 | 2.06 | |
| Protecting Cover | ||||
| 78 | 2603105138 | 11.88 | 14.37 | |
| Compression Spring | ||||
| 85 | 2604690055 | 0.83 | 1.00 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 91 | 1607A350M0 | 91.56 | 110.79 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 91.56 | 110.79 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| DC motor 18V | ||||
| 802 | 2607022831 | 67.25 | 81.37 | |
| Coupling Half | ||||
| 806 | 2606445016 | 12.41 | 15.02 | |
| Nameplate | ||||
| 808 | 160111A3T0 | 1.94 | 2.35 | |
| Bearing Bracket | ||||
| 826 | 2605807946 | 20.42 | 24.71 | |
| Eccentric Cog Wheel | ||||
| 827 | 2609001931 | 18.19 | 22.01 | |
| base plate | ||||
| 845 | 2601016906 | 23.75 | 28.74 | |
| Grease Tube Albida | ||||
| 895 | 3605430003 | 23.75 | 28.74 | |
