Here you will find all available parts and drawings of the 'Bosch 3601E98300 (GST18V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

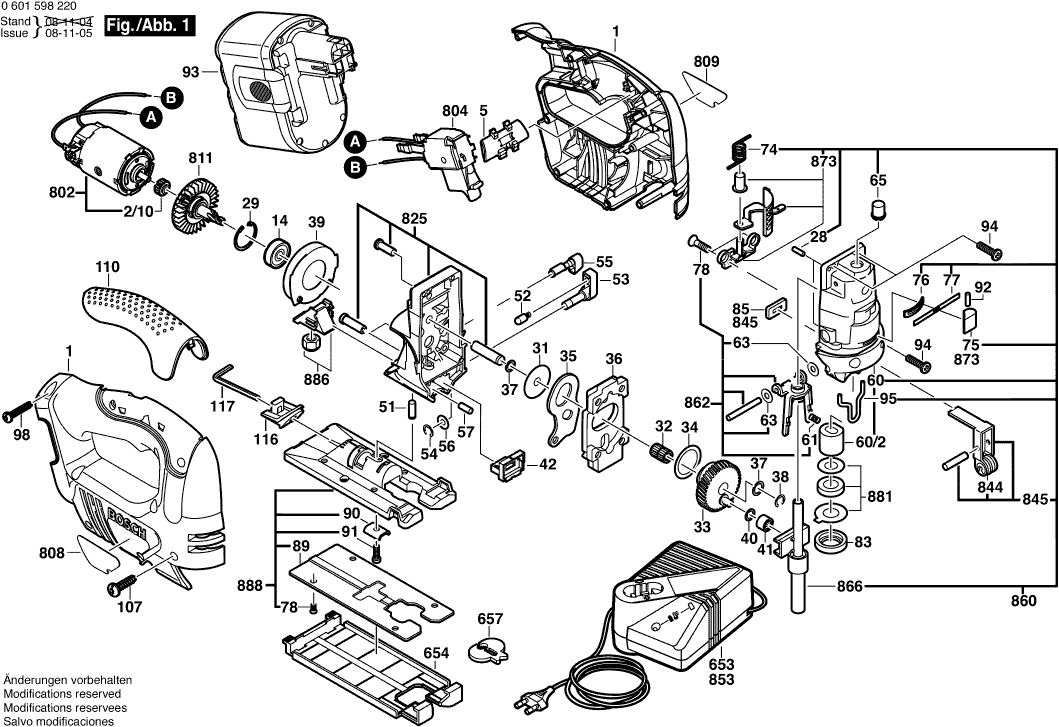

Technical drawing of model Bosch 3601E98300 (GST18V)
Spare parts list of model Bosch 3601E98300 (GST18V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105018 | 28.56 | 34.56 | |
| Clutch Element | ||||
| 2/10 | 2606490088 | 4.58 | 5.54 | |
| Locking Lever | ||||
| 5 | 2601099120 | 1.90 | 2.30 | |
| Ball Bearing | ||||
| 14 | 2600905095 | 11.37 | 13.76 | |
| Needle Roller | ||||
| 28 | 1903201042 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 29 | 2916660008 | 2.08 | 2.52 | |
| Shim | ||||
| 31 | 2600101048 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 32 | 2600913040 | 5.81 | 7.03 | |
| Eccentric Cog Wheel | ||||
| 33 | 2606320088 | 21.73 | 26.29 | |
| Shim | ||||
| 34 | 2600102614 | 1.00 | 1.21 | |
| Fork Lever | ||||
| 35 | 2601923010 | 2.08 | 2.52 | |
| Counterweight | ||||
| 36 | 2601098032 | 13.13 | 15.89 | |
| Shim | ||||
| 37 | 2600101047 | 1.49 | 1.80 | |
| Locking washer | ||||
| 38 | 2916080909 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 39 | 2600290051 | 1.73 | 2.09 | |
| Intermediate Ring | ||||
| 40 | 2600200038 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 41 | 2600917900 | 8.35 | 10.10 | |
| Air Eliminator | ||||
| 42 | 2602305050 | 2.18 | 2.64 | |
| Bearing bolt | ||||
| 51 | 2603105053 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 52 | 2600590006 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 53 | 2602026063 | 2.40 | 2.90 | |
| Locking washer | ||||
| 54 | 2916080908 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 55 | 2602026065 | 2.08 | 2.52 | |
| Shim | ||||
| 56 | 2600100607 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 57 | 2603100069 | 1.49 | 1.80 | |
| Gear Cover | ||||
| 60 | 2605808081 | 47.53 | 57.51 | |
| Bushing | ||||
| 60/2 | 2600301037 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 61 | 2604610042 | 1.49 | 1.80 | |
| Shim | ||||
| 63 | 2600101095 | 1.49 | 1.80 | |
| Seal | ||||
| 65 | 2601015064 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 74 | 2604651011 | 2.86 | 3.46 | |
| Cap-Handle | ||||
| 75 | 2600591010 | 2.40 | 2.90 | |
| Seal | ||||
| 76 | 2601015065 | 1.49 | 1.80 | |
| Cover Plate | ||||
| 77 | 2601016079 | 4.94 | 5.98 | |
| Thread-forming tap. Screw | ||||
| 78 | 2603421014 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 83 | 2600202037 | 2.08 | 2.52 | |
| Sealing Plate | ||||
| 85 | 2601015057 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 89 | 2601098082 | |||
| Profile Beading | ||||
| 90 | 2601030022 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 91 | 2910141197 | 1.44 | 1.74 | |
| Slotted Spring Pin | ||||
| 92 | 2917760034 | 1.00 | 1.21 | |
| Slide-In Accu Package | ||||
| 93 | 2607335687 | 273.59 | 331.04 | |
| Thread-forming tap. Screw | ||||
| 94 | 2603410049 | 1.49 | 1.80 | |
| Protecting Cover | ||||
| 95 | 2603101046 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 98 | 2603490018 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 107 | 2603490023 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 110 | 2608040204 | 10.68 | 12.92 | |
| Key Holder | ||||
| 116 | 2608000313 | 1.24 | 1.50 | |
| Offset Screwdriver | ||||
| 117 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 117 | 2610364015 | 3.44 | 4.16 | |
| Fast Charger | ||||
| 653 | 2607225027 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 653 | 2607225029 | 122.80 | 148.59 | |
| No longer available, no replacement | ||||
| 654 | 2608000184 | |||
| Splintering Protector | ||||
| 657 | 2601016065 | 4.94 | 5.98 | |
| DC motor | ||||
| 802 | 2607022880 | 75.38 | 91.21 | |
| On-Off Switch | ||||
| 804 | 2607200413 | 31.42 | 38.02 | |
| Nameplate | ||||
| 808 | 2601116968 | 1.90 | 2.30 | |
| Manufacturer's nameplate | ||||
| 809 | 2601116967 | 2.18 | 2.64 | |
| Coupling Half | ||||
| 811 | 2606445901 | 13.58 | 16.43 | |
| Gear Housing | ||||
| 825 | 2605806896 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 844 | 2600326904 | |||
| No longer available, no replacement | ||||
| 845 | 2601321904 | |||
| Gear Cover | ||||
| 860 | 2605808927 | 155.51 | 188.17 | |
| Guide Bracket | ||||
| 862 | 2601322900 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 866 | 2600780911 | |||
| No longer available, no replacement | ||||
| 873 | 2601990906 | |||
| No longer available, no replacement | ||||
| 881 | 2600290902 | |||
| Fan Cover | ||||
| 886 | 2605500911 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 888 | 2608000920 | |||
