Here you will find all available parts and drawings of the 'Bosch 3601E12000 ( GST150CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

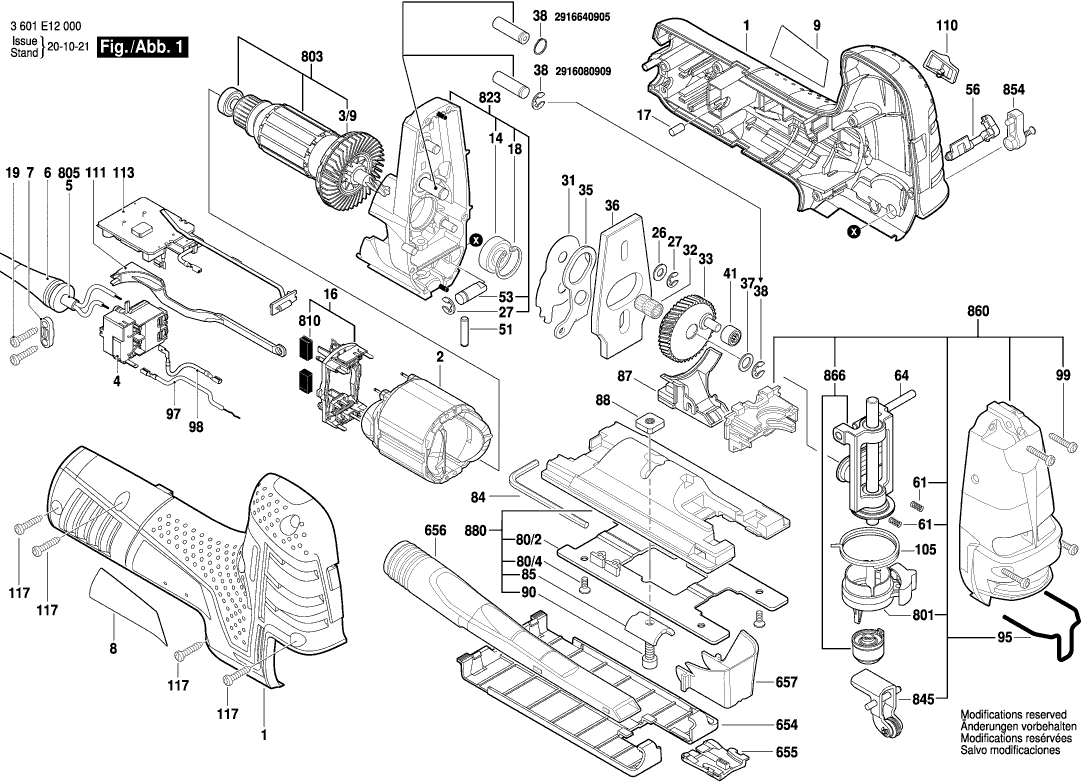

Technical drawing of model Bosch 3601E12000 ( GST150CE )

Spare parts list of model Bosch 3601E12000 ( GST150CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605105129 26.84 32.48
Field 230-240V
2 2604220584 18.19 22.01
Fan
3/9 2606610089 4.10 4.96
Switch
4 2607200662 11.88 14.37
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Cable Clip
7 2601035004 1.70 2.06
Nameplate
8 2601111171 1.18 1.43
Manufacturer's nameplate GST 150 CE
9 2601113553 1.94 2.35
groove ball bearing 9x24x7
14 2600905112 9.53 11.53
Brush Plate
16 2605807108 13.93 16.86
Rubber Buffer
17 1603100036 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
18 2916660008 1.70 2.06
Screw 4x16
19 2603490022 0.83 1.00
Shim
26 2600100040 1.18 1.43
Locking Washer 5 DIN 6799
27 2916080908 0.83 1.00
Shim
31 2600101119 1.94 2.35
Needle-Roller Assembly
32 2600913040 4.70 5.69
Eccentric Cog Wheel
33 2606320099 18.19 22.01
Fork Lever
35 2601923015 2.24 2.71
Counterweight
36 2601098117 8.45 10.22
Shim 0,3 MM
37 2600101047 1.18 1.43
Spring retaining ring 8x0,8 N31A MR7
38 2916640905 1.18 1.43
Locking Washer DIN 6799-6-FST
38 2916080909 0.83 1.00
Needle bearing
41 2600917900 6.54 7.91
Bearing bolt
51 2603105131 1.70 2.06
Control Shaft
53 2603124156 3.31 4.01
Rotary Knob BLACK
56 2602026158 0.83 1.00
Compression Spring
61 2604610140 0.83 1.00
Straight Pin
64 2601322035 1.94 2.35
Work Board
80/2 2601099198 2.71 3.28
Thread-forming tap. Screw
80/4 1613435023 0.83 1.00
Offset Screwdriver
84 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
84 2610364015 2.71 3.28
Profile Beading
85 2601030022 1.94 2.35
Baffle BLACK
87 2605500203 2.24 2.71
fixing plate
88 2600040004 2.24 2.71
Hex Socket Head Cap Screw DIN 912-M6x20-8.8
90 2910141201 1.94 2.35
Protecting Cover
95 2603101065 1.18 1.43
Earth Conductor
97 2604448339 1.70 2.06
Connecting Cable
98 2604448337 2.71 3.28
Thread-forming tap. Screw
99 2603410051 0.83 1.00
Torsion Spring
105 2604690056 1.70 2.06
Switch Handle
110 2602026161 1.70 2.06
Adjusting Slide
111 2601099192 1.94 2.35
Speed governor 220-240V
113 1607233560 36.85 44.59
Torx Oval-Head Screw 4x20
117 2603490023 0.83 1.00
Pad
654 2601099183 5.33 6.45
Splintering Protector
655 2601016093 3.31 4.01
Suction Nozzle
656 2605730055 4.10 4.96
Covering hood
657 2605510293 1.94 2.35
Cap-Handle BLACK
801 2602026908 4.10 4.96
Armature 230-240V
803 2604011394 40.61 49.14
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Carbon-Brush Set 10 x 2 604 321 941
810 1607000494 44.82 54.23
Carbon-Brush Set
810 2604321941 7.58 9.17
Gear Housing
823 2605806881 73.72 89.20
Roller Lever
845 2601321908 9.53 11.53
Rotary Knob BLACK
854 2602026909 1.94 2.35
Gear Cover
860 2605808934 113.29 137.08
Lifting Rod
866 1600A00HG2 60.65 73.39
base plate
880 2601016905 23.75 28.74
