Here you will find all available parts and drawings of the 'Bosch 3601E14101 ( GST1400CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

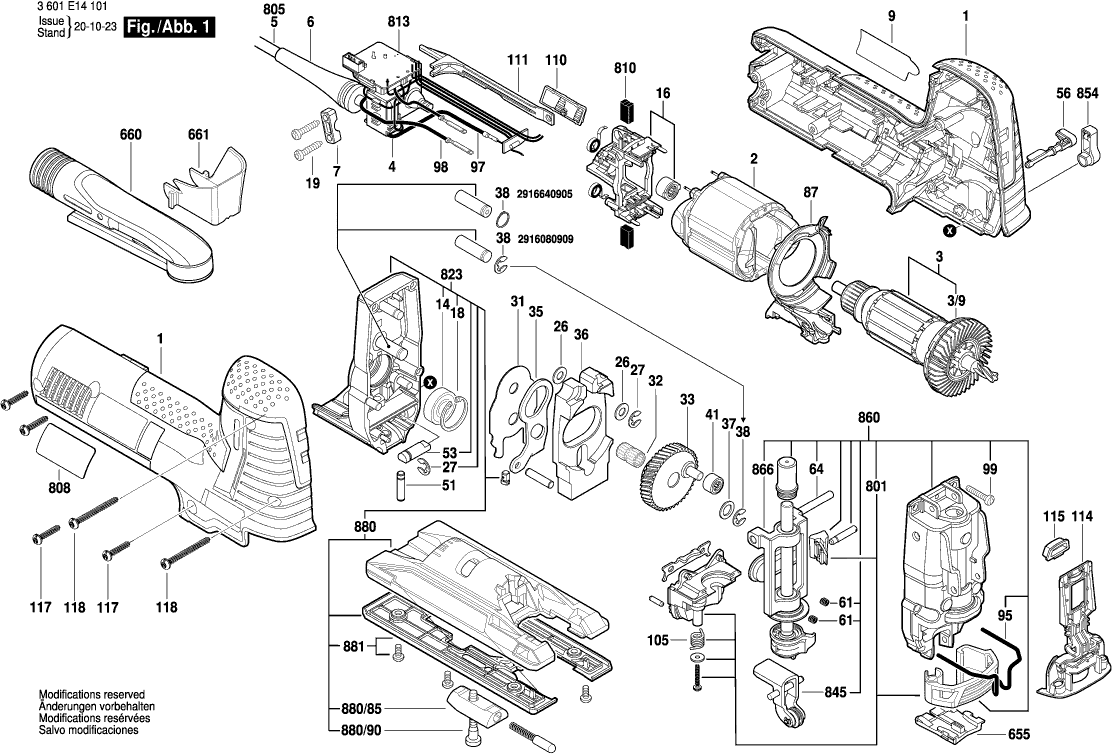

Technical drawing of model Bosch 3601E14101 ( GST1400CE )

Spare parts list of model Bosch 3601E14101 ( GST1400CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section
1 2605105148 29.75 36.00
Field 230-240V
2 2604220740 29.75 36.00
Armature 230-240V
3 2604011420 49.56 59.97
Fan
3/9 2606610089 4.10 4.96
Switch
4 2607200684 15.71 19.01
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Cable Clip
7 2601035004 1.70 2.06
Manufacturer's nameplate GST 1400 CE
9 2601112911 0.83 1.00
groove ball bearing 9x24x7
14 2600905112 9.53 11.53
Brush Plate
16 2605807137 18.19 22.01
Spring retaining ring DIN 472-24x1,2 MM
18 2916660008 1.70 2.06
Screw 4x16
19 2603490022 0.83 1.00
Shim
26 2600100040 1.18 1.43
Locking Washer 5 DIN 6799
27 2916080908 0.83 1.00
Shim
31 2600101124 0.83 1.00
Needle-Roller Assembly
32 2600913040 4.70 5.69
Eccentric Cog Wheel
33 2606320107 15.71 19.01
Fork Lever
35 2601923015 2.24 2.71
Counterweight
36 2601098120 13.93 16.86
Shim 0,3 MM
37 2600101047 1.18 1.43
Spring retaining ring 8x0,8 N31A MR7
38 2916640905 1.18 1.43
Locking Washer DIN 6799-6-FST
38 2916080909 0.83 1.00
Needle bearing
41 2600917900 6.54 7.91
Bearing bolt
51 2603105131 1.70 2.06
Control Shaft
53 2603124157 4.10 4.96
Rotary Knob
56 2602026170 1.18 1.43
Compression Spring
61 2604610140 0.83 1.00
Straight Pin
64 2601322045 1.18 1.43
Air-Deflector Ring
87 2605500220 6.54 7.91
Protecting Cover
95 2603101060 3.31 4.01
Earth Conductor
97 2604448351 1.94 2.35
Connecting Cable
98 1619P07299 1.94 2.35
Thread-forming tap. Screw
99 2603410051 0.83 1.00
Torsion Spring
105 2604690060 0.83 1.00
Operating Element
110 2602026169 2.24 2.71
Adjusting Slide
111 2601099223 2.71 3.28
Cover 230V
114 2605719048 5.83 7.05
Headlamp Switch
115 2600030022 1.94 2.35
Torx Oval-Head Screw 4x20
117 2603490023 0.83 1.00
Torx Oval-Head Screw 4x40
118 2603490027 0.83 1.00
Splintering Protector
655 2601016093 3.31 4.01
Suction Socket
660 2605730061 13.93 16.86
Covering hood
661 2605510296 2.71 3.28
Ejection Lever
801 2607990068 8.45 10.22
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A3RZ 1.94 2.35
Carbon-Brush Set
810 2604320918 9.53 11.53
Speed governor
813 160723358U 55.25 66.85
Gear Housing
823 2605806870 130.32 157.69
Roller Lever
845 2601321912 15.71 19.01
Rotary Knob BLACK
854 2602026909 1.94 2.35
Gear Cover
860 2605808942 130.32 157.69
Lifting Rod
866 1600A00HG1 60.65 73.39
base plate
880 2601099288 55.25 66.85
Profile Beading
880/85 2601030022 1.94 2.35
Hex Socket Head Cap Screw DIN7984-M6x25-8.8
880/90 2603414064 1.70 2.06
Work Board
881 2601099900 11.88 14.37
