Here you will find all available parts and drawings of the 'Bosch 0601511703 (GST135BCE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

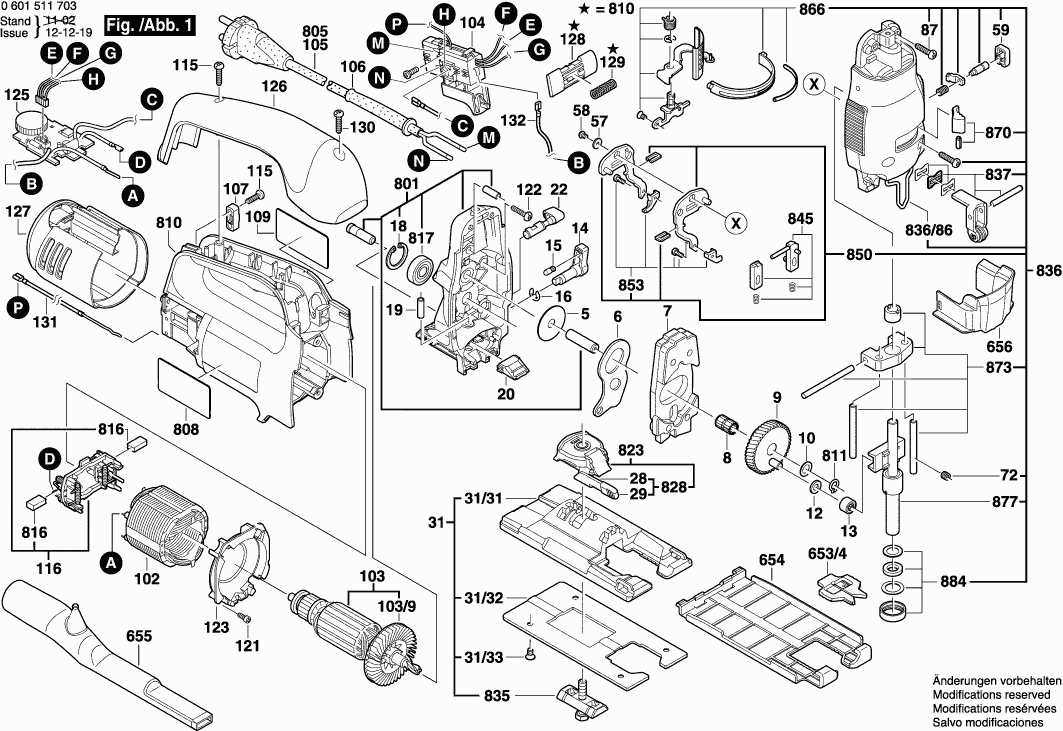

Technical drawing of model Bosch 0601511703 (GST135BCE)
Spare parts list of model Bosch 0601511703 (GST135BCE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Shim | ||||
| 5 | 2600101048 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 6 | 2601923010 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 7 | 2601098087 | |||
| Needle-Roller Assembly | ||||
| 8 | 2600913040 | 5.81 | 7.03 | |
| Eccentric Cog Wheel | ||||
| 9 | 2606320101 | 27.81 | 33.65 | |
| Shim | ||||
| 10 | 2600101047 | 1.49 | 1.80 | |
| Intermediate Ring | ||||
| 12 | 2600200038 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 13 | 2600917900 | 8.35 | 10.10 | |
| Rotary Knob | ||||
| 14 | 2602026116 | 2.18 | 2.64 | |
| Ratchet Cap | ||||
| 15 | 2600590006 | 1.49 | 1.80 | |
| Locking washer | ||||
| 16 | 2916080908 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 18 | 2600118013 | 1.90 | 2.30 | |
| Bearing bolt | ||||
| 19 | 2603105104 | 1.00 | 1.21 | |
| Air Eliminator | ||||
| 20 | 2602305023 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 22 | 2602026109 | 1.32 | 1.60 | |
| Tensioning Lever | ||||
| 28 | 2602098018 | 2.52 | 3.05 | |
| No longer available, no replacement | ||||
| 29 | 2600591022 | |||
| No longer available, no replacement | ||||
| 31 | 2608000925 | |||
| Base Plate | ||||
| 31/31 | 2608000305 | 15.61 | 18.89 | |
| Work Board | ||||
| 31/32 | 2601098099 | 5.27 | 6.38 | |
| Thread-forming tap. Screw | ||||
| 31/33 | 2603421014 | 1.49 | 1.80 | |
| Shim | ||||
| 57 | 2600100123 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 58 | 2603413037 | 1.90 | 2.30 | |
| Push-Button | ||||
| 59 | 2603231041 | 2.52 | 3.05 | |
| Compression Spring | ||||
| 72 | 2604610042 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 87 | 2603410051 | 1.00 | 1.21 | |
| Field | ||||
| 102 | 2604220584 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 103 | 2604011327 | |||
| Fan | ||||
| 103/9 | 2606610093 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 104 | 2607200588 | |||
| Power supply cord | ||||
| 105 | 1607000386 | 18.94 | 22.92 | |
| Grommet | ||||
| 106 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 107 | 2601035001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 109 | 2601116420 | |||
| Screw | ||||
| 115 | 2603490022 | 1.00 | 1.21 | |
| Brush Plate | ||||
| 116 | 2605807108 | 16.79 | 20.32 | |
| Tapping Screw | ||||
| 121 | 2603435086 | 1.32 | 1.60 | |
| Torx Oval-Head Screw | ||||
| 122 | 2603490023 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 123 | 2601328073 | |||
| No longer available, no replacement | ||||
| 125 | 2607230075 | |||
| Strap-Shaped Handle | ||||
| 126 | 2602025133 | 11.65 | 14.10 | |
| Housing Cover | ||||
| 127 | 2600508049 | 3.04 | 3.68 | |
| Locking Lever | ||||
| 128 | 2602026121 | 2.00 | 2.42 | |
| Compression Spring | ||||
| 129 | 2604610096 | 1.24 | 1.50 | |
| Thread-forming tap. Screw | ||||
| 130 | 2603410049 | 1.49 | 1.80 | |
| Earth Conductor | ||||
| 131 | 2604448270 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 132 | 2604448271 | |||
| Splintering Protector | ||||
| 653/4 | 2601016087 | 3.71 | 4.49 | |
| No longer available, no replacement | ||||
| 654 | 2608000309 | |||
| No longer available, no replacement | ||||
| 655 | 2605730040 | |||
| No longer available, no replacement | ||||
| 656 | 2605510205 | |||
| Gear Housing | ||||
| 801 | 2605806889 | 50.23 | 60.78 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 808 | 2601116422 | |||
| Motor Housing | ||||
| 810 | 2605108913 | 12.21 | 14.77 | |
| Locking washer | ||||
| 811 | 2600916900 | 1.90 | 2.30 | |
| Carbon-Brush Set | ||||
| 816 | 2604321941 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 817 | 2600905095 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 823 | 2601990907 | |||
| No longer available, no replacement | ||||
| 828 | 2601990042 | |||
| No longer available, no replacement | ||||
| 835 | 2602317900 | |||
| Gear Cover | ||||
| 836 | 2605808928 | 189.28 | 229.03 | |
| Protecting Cover | ||||
| 836/86 | 2603101046 | 1.49 | 1.80 | |
| Roller Lever | ||||
| 837 | 2601321907 | 15.61 | 18.89 | |
| No longer available, no replacement | ||||
| 845 | 2601098905 | |||
| No longer available, no replacement | ||||
| 850 | 2601990908 | |||
| No longer available, no replacement | ||||
| 853 | 2602180009 | |||
| Control Unit | ||||
| 866 | 2601990911 | 10.68 | 12.92 | |
| Cap-Handle | ||||
| 870 | 2600591900 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 873 | 2601322901 | |||
| No longer available, no replacement | ||||
| 877 | 2600780911 | |||
| Seal Kit | ||||
| 884 | 2600290903 | 4.58 | 5.54 | |
