Here you will find all available parts and drawings of the 'Bosch 0601297037 (GSS140ABareTool24)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

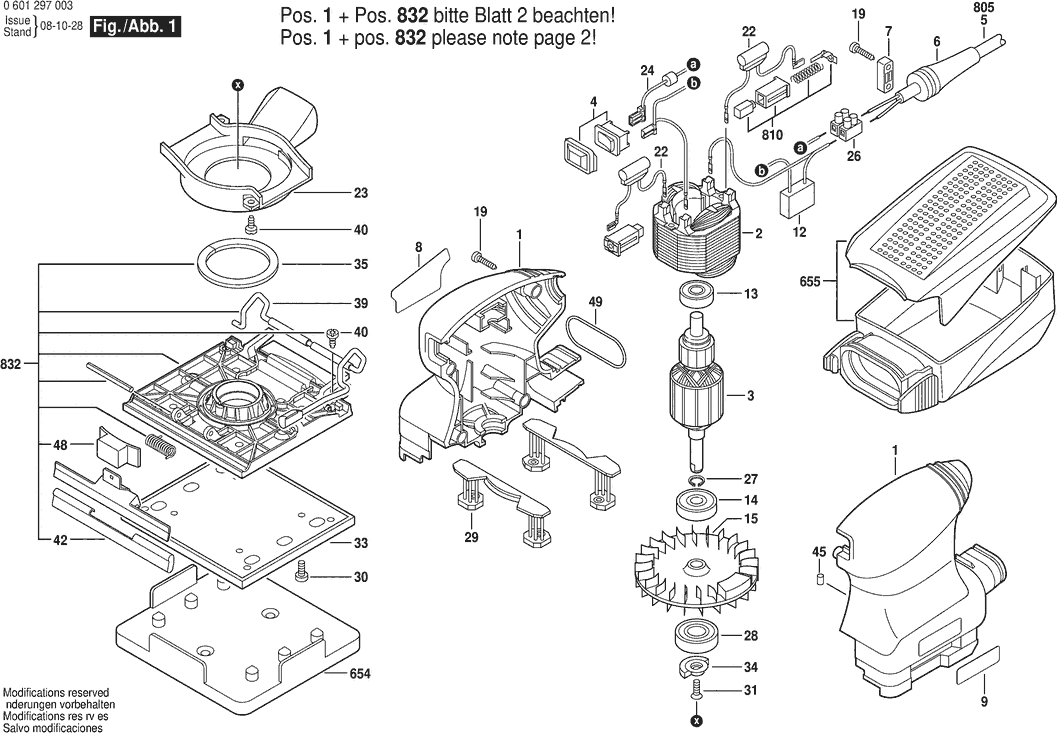

Technical drawing of model Bosch 0601297037 (GSS140ABareTool24)
Spare parts list of model Bosch 0601297037 (GSS140ABareTool24)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100680 | 23.90 | 28.92 | |
| Field | ||||
| 2 | 2610920611 | 21.30 | 25.77 | |
| No information available, not orderable | ||||
| 3 | 2610920610 | |||
| Switch | ||||
| 4 | 1607200190 | 9.67 | 11.70 | |
| Power supply cord | ||||
| 5 | 1604460032 | 13.13 | 15.89 | |
| Grommet | ||||
| 6 | 2600703019 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 8 | 2610921682 | |||
| Reference Plate | ||||
| 9 | 2610921050 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 12 | 2610920617 | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 13 | 2610917489 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 14 | 2610917489 | 9.67 | 11.70 | |
| Fan | ||||
| 15 | 2610920618 | 7.46 | 9.03 | |
| Screw | ||||
| 19 | 2610315386 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 22 | 2610920619 | 3.44 | 4.16 | |
| No information available, not orderable | ||||
| 23 | 2610920620 | |||
| Cable | ||||
| 24 | 2610928031 | 4.94 | 5.98 | |
| Connection Block | ||||
| 26 | 2610910009 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 27 | 2916649005 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 28 | 2609110748 | 7.46 | 9.03 | |
| No information available, not orderable | ||||
| 29 | 2610921132 | |||
| No longer available, no replacement | ||||
| 30 | 2610915161 | |||
| Screw | ||||
| 31 | 2610991395 | 1.00 | 1.21 | |
| Foam Panel | ||||
| 33 | 2610924724 | 16.79 | 20.32 | |
| Counterweight | ||||
| 34 | 2610920634 | 3.44 | 4.16 | |
| Felt | ||||
| 35 | 2610920635 | 1.49 | 1.80 | |
| Clamp Handle | ||||
| 39 | 2610925983 | 14.94 | 18.08 | |
| Torx Oval-Head Screw | ||||
| 40 | 2603490020 | 1.00 | 1.21 | |
| Rubber Bar | ||||
| 42 | 2609101232 | 1.49 | 1.80 | |
| Pin | ||||
| 45 | 2610350103 | 1.49 | 1.80 | |
| Push Button | ||||
| 48 | 2610920651 | 2.08 | 2.52 | |
| O-Ring | ||||
| 49 | 2610920652 | 2.08 | 2.52 | |
| Punching Tool | ||||
| 654 | 2610920650 | 8.35 | 10.10 | |
| Dust container | ||||
| 655 | 2609199193 | 9.67 | 11.70 | |
| Carbon-Brush Set | ||||
| 810 | 2610924701 | 9.67 | 11.70 | |
| Swing-Plate | ||||
| 832 | 2609100684 | 31.42 | 38.02 | |
