Here you will find all available parts and drawings of the 'Bosch 3601B92901 ( GSS280AVE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

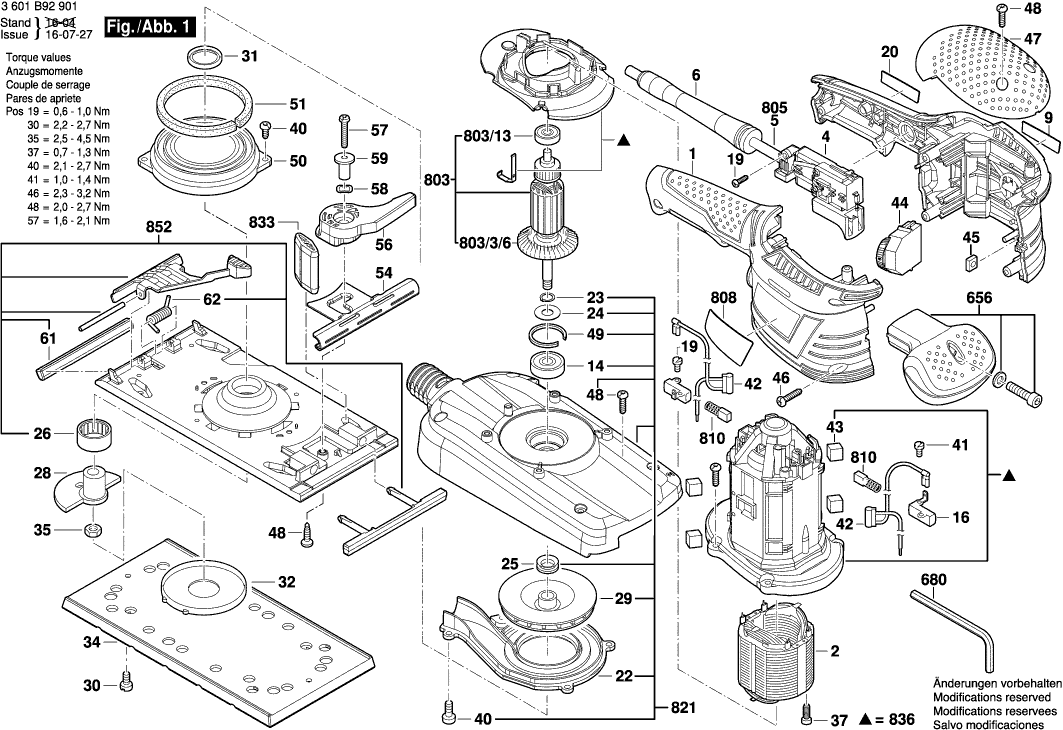

Technical drawing of model Bosch 3601B92901 ( GSS280AVE )

Spare parts list of model Bosch 3601B92901 ( GSS280AVE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605105964 33.45 40.47
Field 230-240V
2 2604220750 29.75 36.00
Switch
4 2607200688 12.41 15.02
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Manufacturer's nameplate GSS 280 AVE
9 2601112338 1.94 2.35
groove ball bearing
14 1619P00290 5.33 6.45
Brush Holder
16 2604337003 1.70 2.06
Torx Oval-Head Screw 3x10
19 2603490017 1.70 2.06
Reference Plate
20 2601111477 1.94 2.35
Suction Piece
22 2601328095 3.31 4.01
Spring retaining ring DIN 471 9x1MM
23 2916640006 1.18 1.43
Sealing disk
24 2600590013 1.70 2.06
V-Ring
25 2600290030 2.24 2.71
groove ball bearing
26 3608872913 23.75 28.74
Eccentric
28 2602210046 15.71 19.01
Fan
29 2606610086 6.54 7.91
Thread-forming tap. Screw M4x8
30 2603410048 1.18 1.43
Shaft Seal
31 2600290036 3.31 4.01
Sealing Cover
32 2600500019 1.18 1.43
Sander Plate
34 2600009020 40.61 49.14
Hex Nut DIN 439-BM8-04
35 2915051107 1.18 1.43
Tapping Screw
37 2603435086 1.18 1.43
Thread-forming tap. Screw
40 2603435042 1.18 1.43
Torx Oval-Head Screw 3x10
41 2603490017 1.70 2.06
Suppressor Box
42 2604465115 5.83 7.05
Damping Element
43 2603203041 1.18 1.43
Speed governor 230-240V
44 1607233556 33.45 40.47
Square Nut DIN 562-M6-04
45 2915121006 1.94 2.35
Torx Oval-Head Screw 4x20
46 2603490023 0.83 1.00
Housing Cover
47 2605500208 9.53 11.53
Screw 4x16
48 2603490022 0.83 1.00
Pusher
49 2601035002 1.70 2.06
Suction Socket
50 2601328054 2.71 3.28
Felt Strip
51 2601005017 1.18 1.43
Tensioning Bracket
54 2609200379 12.41 15.02
Lever
56 2601901021 4.70 5.69
Thread-forming tap. Screw
57 2603410051 0.83 1.00
Spring Washer
58 2600100713 0.83 1.00
Guide Bushing
59 2600499078 1.70 2.06
Pressure Bar
61 2601014021 3.31 4.01
Coiled Spring
62 2604651029 2.24 2.71
Dust Chamber
655 2605411234 81.47 98.58
Auxiliary Handle BLACK
656 2602026175 12.41 15.02
Punching Tool
657 2608190030 15.71 19.01
Offset Screwdriver
680 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
680 2610364015 2.71 3.28
Armature 230-240V
803 2604011952 81.47 98.58
groove ball bearing 7x19x6
803/13 2600905086 4.70 5.69
Fan
803/3/6 2606610076 2.71 3.28
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A340 1.94 2.35
No longer available, no replacement
810 1607014117
Suction Hood
821 2605510904 73.72 89.20
Spring 4 PIECE
833 2608005902 12.41 15.02
Motor Housing BLUE
836 2605105966 20.42 24.71
Swing-Plate
852 2601099902 91.56 110.79
