Here you will find all available parts and drawings of the 'Bosch 0601293003 (GSS280A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

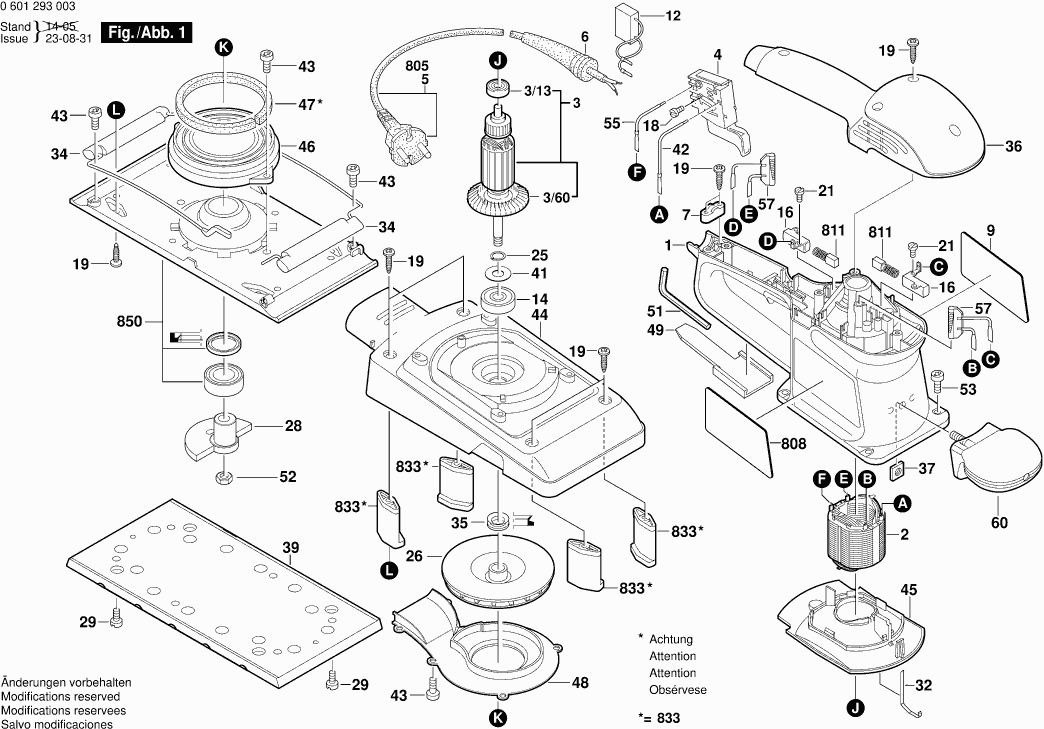

Technical drawing of model Bosch 0601293003 (GSS280A)
Spare parts list of model Bosch 0601293003 (GSS280A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104538 | 14.94 | 18.08 | |
| Bearing flange | ||||
| 2 | 1617S025JT | 36.00 | 43.56 | |
| Armature | ||||
| 3 | 2604011110 | 34.82 | 42.13 | |
| groove ball bearing | ||||
| 3/13 | 2600905086 | 5.81 | 7.03 | |
| Fan | ||||
| 3/60 | 2606610076 | 3.44 | 4.16 | |
| Switch | ||||
| 4 | 2607200260 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118940 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 12 | 1617328026 | |||
| groove ball bearing | ||||
| 14 | 1619P00290 | 6.73 | 8.14 | |
| Brush Holder | ||||
| 16 | 2604337016 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 21 | 2603490017 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 25 | 2916640006 | 1.49 | 1.80 | |
| Fan | ||||
| 26 | 2606610086 | 8.35 | 10.10 | |
| Eccentric | ||||
| 28 | 2600499042 | 18.94 | 22.92 | |
| Thread-forming tap. Screw | ||||
| 29 | 2603410048 | 1.49 | 1.80 | |
| Contact Strap | ||||
| 32 | 2601329053 | 1.49 | 1.80 | |
| Tensioning Lever | ||||
| 34 | 2608045023 | 9.67 | 11.70 | |
| V-Ring | ||||
| 35 | 2600290030 | 2.86 | 3.46 | |
| Housing Cover | ||||
| 36 | 2605500125 | 8.48 | 10.26 | |
| Square Nut | ||||
| 37 | 2915121006 | 2.40 | 2.90 | |
| Sander Plate | ||||
| 39 | 2608000168 | 31.42 | 38.02 | |
| Sealing disk | ||||
| 41 | 2600590013 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 43 | 2603435042 | 1.49 | 1.80 | |
| Suction Hood | ||||
| 44 | 2600282018 | 39.14 | 47.36 | |
| Air Guide Plate | ||||
| 45 | 2601328055 | 2.40 | 2.90 | |
| Suction Socket | ||||
| 46 | 2601328054 | 3.44 | 4.16 | |
| Felt Strip | ||||
| 47 | 2601005017 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 48 | 2600034007 | 7.46 | 9.03 | |
| Pusher | ||||
| 49 | 2601035002 | 2.08 | 2.52 | |
| Offset Screwdriver | ||||
| 51 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 51 | 2610364015 | 3.44 | 4.16 | |
| Hex Nut | ||||
| 52 | 2915051107 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 53 | 2603410049 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 55 | 2604448146 | 1.49 | 1.80 | |
| Suppression Filter | ||||
| 57 | 2604465090 | 7.46 | 9.03 | |
| Auxiliary Handle | ||||
| 60 | 2602026069 | 4.94 | 5.98 | |
| Dust Bag | ||||
| 754 | 2605411112 | 0.83 | 1.00 | |
| Dust Bag | ||||
| 754/1 | 2605411113 | 0.83 | 1.00 | |
| Dust Bag | ||||
| 754/2 | 2605411114 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Power supply cord | ||||
| 805 | 1607000387 | 10.90 | 13.19 | |
| Marking Plate | ||||
| 808 | 2601119359 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 811 | 1607014117 | |||
| Spring | ||||
| 833 | 2608005902 | 14.94 | 18.08 | |
| Swing-Plate | ||||
| 850 | 2608000928 | 39.14 | 47.36 | |
