Here you will find all available parts and drawings of the 'Bosch 0601288103 (GSS28A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

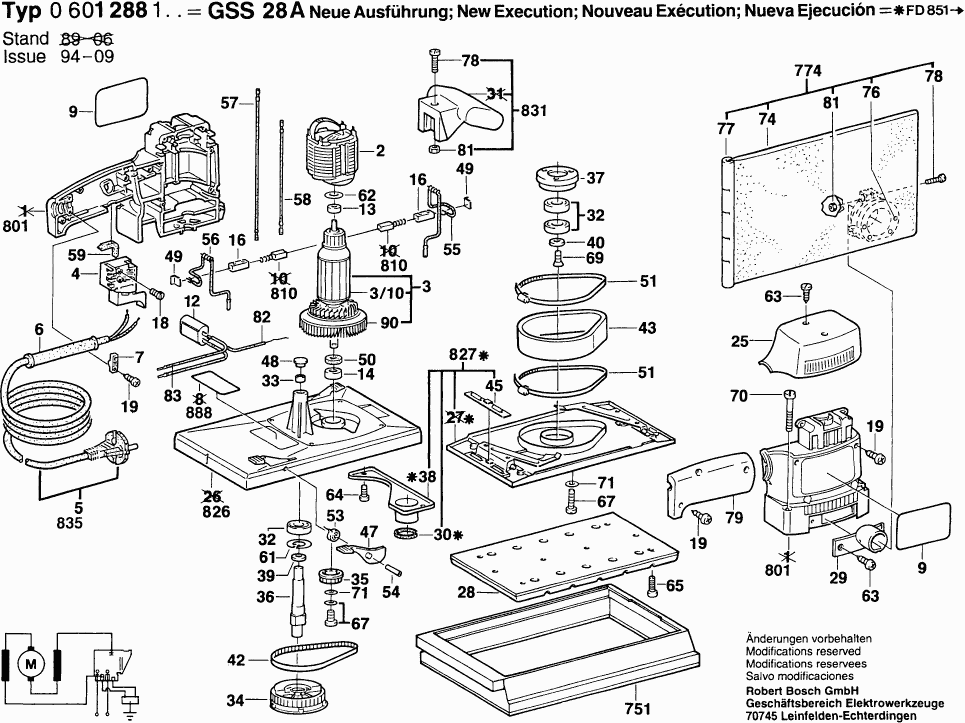

Technical drawing of model Bosch 0601288103 (GSS28A)
Spare parts list of model Bosch 0601288103 (GSS28A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220445 | 27.81 | 33.65 | |
| No information available, not orderable | ||||
| 3 | 2604010911 | |||
| Fan | ||||
| 3/10 | 2606610027 | 2.86 | 3.46 | |
| Switch | ||||
| 4 | 2607200260 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 9 | 2601118586 | |||
| No information available, not orderable | ||||
| 12 | 2607329115 | |||
| groove ball bearing | ||||
| 13 | 1900905015 | 31.42 | 38.02 | |
| groove ball bearing | ||||
| 14 | 1900905041 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 16 | 2604330016 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 25 | 2605500106 | |||
| No longer available, no replacement | ||||
| 28 | 2608000126 | |||
| No longer available, no replacement | ||||
| 29 | 2605702005 | |||
| No longer available, no replacement | ||||
| 30 | 2601005015 | |||
| No information available, not orderable | ||||
| 32 | 2600905024 | |||
| Needle-Roller Bearing | ||||
| 33 | 2600917003 | 2.86 | 3.46 | |
| No information available, not orderable | ||||
| 34 | 2606625006 | |||
| No longer available, no replacement | ||||
| 35 | 2606625005 | |||
| No information available, not orderable | ||||
| 36 | 2606110000 | |||
| No information available, not orderable | ||||
| 37 | 2600232000 | |||
| No information available, not orderable | ||||
| 38 | 2605510014 | |||
| No information available, not orderable | ||||
| 39 | 2600101014 | |||
| No information available, not orderable | ||||
| 40 | 1600114038 | |||
| Toothed Belt | ||||
| 42 | 2604736003 | 4.58 | 5.54 | |
| No longer available, no replacement | ||||
| 43 | 2600306003 | |||
| No longer available, no replacement | ||||
| 45 | 2602329022 | |||
| No information available, not orderable | ||||
| 47 | 2602098011 | |||
| No information available, not orderable | ||||
| 48 | 2600591004 | |||
| No information available, not orderable | ||||
| 49 | 2601330002 | |||
| No longer available, no replacement | ||||
| 50 | 2600108004 | |||
| No information available, not orderable | ||||
| 51 | 2601316001 | |||
| Spiral Spring | ||||
| 53 | 1604652004 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 54 | 2604681001 | |||
| No information available, not orderable | ||||
| 55 | 2604465029 | |||
| No information available, not orderable | ||||
| 56 | 2604465033 | |||
| No information available, not orderable | ||||
| 57 | 2604448011 | |||
| No information available, not orderable | ||||
| 58 | 2604448000 | |||
| No longer available, no replacement | ||||
| 59 | 2601022000 | |||
| Spring retaining ring | ||||
| 61 | 2916660011 | 1.49 | 1.80 | |
| O-Ring | ||||
| 62 | 1900210012 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 63 | 2603490020 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 64 | 2603490003 | |||
| No information available, not orderable | ||||
| 65 | 2603450008 | |||
| Screw and washer assembly | ||||
| 67 | 2914501028 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 69 | 2910861118 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 70 | 2910021138 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 71 | 2916201002 | |||
| Torx Oval-Head Screw | ||||
| 76 | 2603490017 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 77 | 2601314002 | |||
| Socket head cap screw | ||||
| 78 | 2910011128 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 79 | 2605500107 | |||
| Hex Nut | ||||
| 81 | 2915011005 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 82 | 2604448003 | |||
| No information available, not orderable | ||||
| 83 | 2604448049 | |||
| No information available, not orderable | ||||
| 90 | 2606610026 | |||
| No information available, not orderable | ||||
| 751 | 2608005901 | |||
| No information available, not orderable | ||||
| 774 | 2605411900 | |||
| No information available, not orderable | ||||
| 801 | 2605104894 | |||
| Carbon-Brush Set | ||||
| 810 | 2604321904 | 9.67 | 11.70 | |
| No information available, not orderable | ||||
| 826 | 2608000900 | |||
| No information available, not orderable | ||||
| 827 | 2608000903 | |||
| Handle | ||||
| 831 | 1605133036 | 7.46 | 9.03 | |
| Power supply cord | ||||
| 835 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
