Here you will find all available parts and drawings of the 'Bosch 3601B92871 (GSS230AVE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

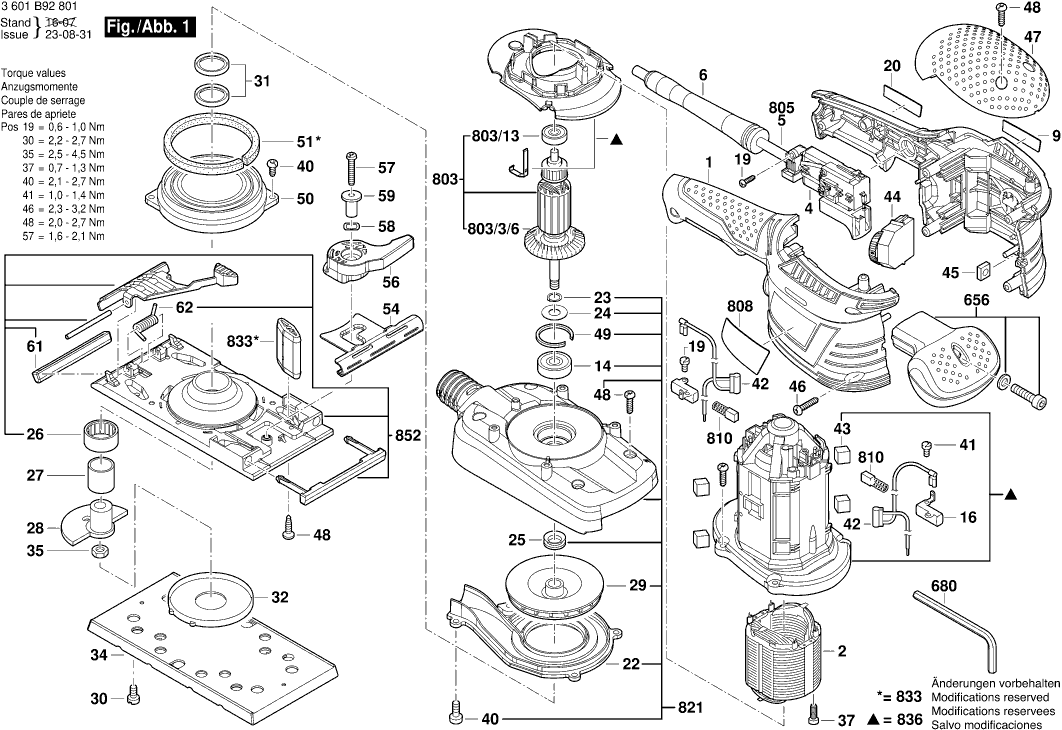

Technical drawing of model Bosch 3601B92871 (GSS230AVE)
Spare parts list of model Bosch 3601B92871 (GSS230AVE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105964 | 39.14 | 47.36 | |
| Field | ||||
| 2 | 2604220747 | 21.30 | 25.77 | |
| Switch | ||||
| 4 | 2607200688 | 13.90 | 16.82 | |
| Power supply cord GB 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 5 | 2604460244 | 27.81 | 33.65 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2601112337 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1619P00290 | 6.73 | 8.14 | |
| Brush Holder | ||||
| 16 | 2604337003 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490017 | 2.08 | 2.52 | |
| Reference Plate | ||||
| 20 | 2601111477 | 2.40 | 2.90 | |
| Suction Piece | ||||
| 22 | 2601328094 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 23 | 2916640006 | 1.49 | 1.80 | |
| Sealing disk | ||||
| 24 | 2600590013 | 2.08 | 2.52 | |
| V-Ring | ||||
| 25 | 2600290030 | 2.86 | 3.46 | |
| Needle bearing | ||||
| 26 | 2600910012 | 4.94 | 5.98 | |
| Inner Ring | ||||
| 27 | 2600400035 | 9.67 | 11.70 | |
| Eccentric | ||||
| 28 | 2602210045 | 18.94 | 22.92 | |
| Fan | ||||
| 29 | 2606610085 | 8.35 | 10.10 | |
| Thread-forming tap. Screw | ||||
| 30 | 2603410048 | 1.49 | 1.80 | |
| Shaft Seal | ||||
| 31 | 2600290031 | 2.86 | 3.46 | |
| Sealing Cover | ||||
| 32 | 2600500019 | 1.49 | 1.80 | |
| Sander Plate | ||||
| 34 | 2600009019 | 34.82 | 42.13 | |
| Hex Nut | ||||
| 35 | 2915051107 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 37 | 2603435086 | 1.32 | 1.60 | |
| Thread-forming tap. Screw | ||||
| 40 | 2603435042 | 1.49 | 1.80 | |
| Suppressor Box | ||||
| 42 | 2604465115 | 7.46 | 9.03 | |
| Damping Element | ||||
| 43 | 2603203041 | 1.49 | 1.80 | |
| Speed governor | ||||
| 44 | 1607233556 | 39.14 | 47.36 | |
| Square Nut | ||||
| 45 | 2915121006 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 46 | 2603490023 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 47 | 2605500208 | 11.37 | 13.76 | |
| Screw | ||||
| 48 | 2603490022 | 1.00 | 1.21 | |
| Pusher | ||||
| 49 | 2601035002 | 2.08 | 2.52 | |
| Suction Socket | ||||
| 50 | 2601328054 | 3.44 | 4.16 | |
| Felt Strip | ||||
| 51 | 2601005017 | 1.49 | 1.80 | |
| Tensioning Bracket | ||||
| 54 | 2609200378 | 14.94 | 18.08 | |
| Lever | ||||
| 56 | 2601901020 | 6.73 | 8.14 | |
| Thread-forming tap. Screw | ||||
| 57 | 2603410051 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 58 | 2600100713 | 1.00 | 1.21 | |
| Guide Bushing | ||||
| 59 | 2600499078 | 2.08 | 2.52 | |
| Pressure Bar | ||||
| 61 | 2601014020 | 4.18 | 5.06 | |
| Coiled Spring | ||||
| 62 | 2604651029 | 2.86 | 3.46 | |
| Dust Chamber | ||||
| 655 | 2605411228 | 45.52 | 55.08 | |
| Auxiliary Handle | ||||
| 656 | 2602026175 | 14.94 | 18.08 | |
| Hexagon Socket Screw Key | ||||
| 680 | 2610364015 | 3.44 | 4.16 | |
| Armature | ||||
| 803 | 2604011951 | 88.83 | 107.48 | |
| groove ball bearing | ||||
| 803/13 | 2600905086 | 5.81 | 7.03 | |
| Fan | ||||
| 803/3/6 | 2606610076 | 3.44 | 4.16 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A21A | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 810 | 1607014117 | |||
| Suction Hood | ||||
| 821 | 2605510903 | 80.26 | 97.11 | |
| Spring | ||||
| 833 | 2608005902 | 14.94 | 18.08 | |
| Motor Housing | ||||
| 836 | 2605105966 | 23.90 | 28.92 | |
| Swing-Plate | ||||
| 852 | 2601099901 | 88.83 | 107.48 | |
