Here you will find all available parts and drawings of the 'Bosch 3601BA2200 ( GSS160-1A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

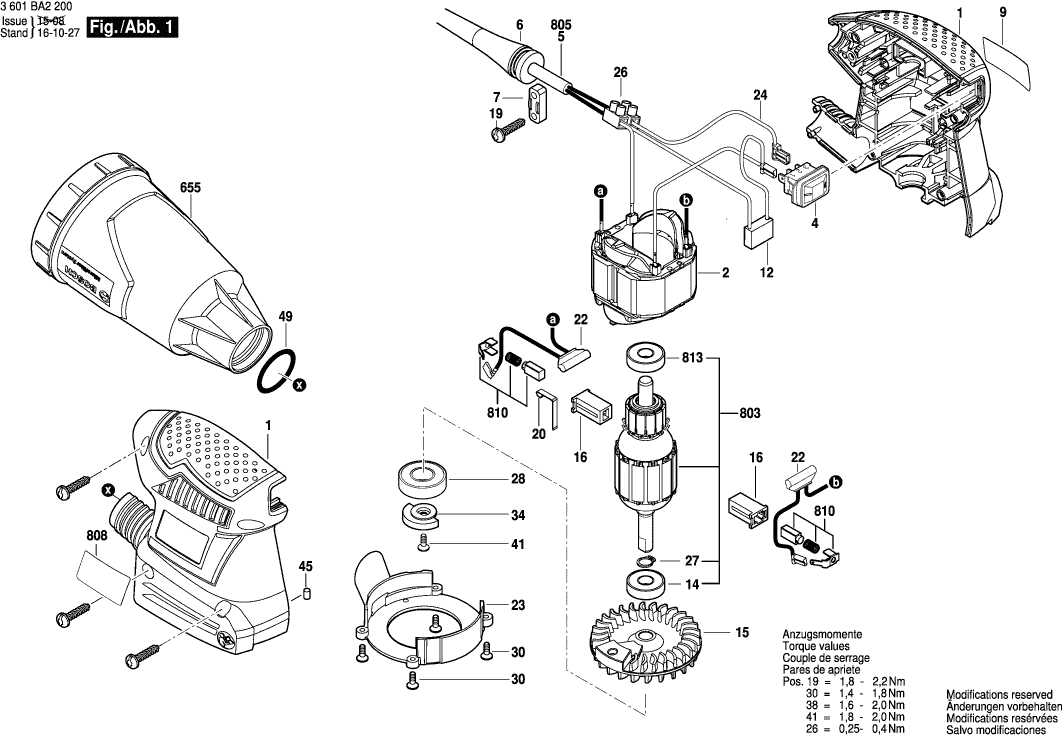

Technical drawing of model Bosch 3601BA2200 ( GSS160-1A )
Spare parts list of model Bosch 3601BA2200 ( GSS160-1A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101361 | 10.73 | 12.98 | |
| Field 230-240V | ||||
| 2 | 1604220408 | 12.41 | 15.02 | |
| Switch | ||||
| 4 | 1607200190 | 7.58 | 9.17 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate GSS 160-1 A | ||||
| 9 | 2609136027 | 2.24 | 2.71 | |
| Suppression Filter | ||||
| 12 | 2609120543 | 1.94 | 2.35 | |
| Ball Bearing 8x22x7 | ||||
| 14 | 2609110153 | 4.70 | 5.69 | |
| Fan | ||||
| 15 | 2610920618 | 5.83 | 7.05 | |
| Brush Holder | ||||
| 16 | 2610320548 | 1.94 | 2.35 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Contact Spring | ||||
| 20 | 2601329057 | 1.94 | 2.35 | |
| Suppression Filter | ||||
| 22 | 2610920619 | 2.71 | 3.28 | |
| Fan Cover | ||||
| 23 | 2609101301 | 1.18 | 1.43 | |
| Cable | ||||
| 24 | 2609120579 | 0.83 | 1.00 | |
| Connection Block | ||||
| 26 | 2610910009 | 1.70 | 2.06 | |
| Retaining ring DIN 7993-A8 | ||||
| 27 | 2916540005 | 0.83 | 1.00 | |
| Ball Bearing | ||||
| 28 | 2609110748 | 5.83 | 7.05 | |
| Vibration Foot | ||||
| 29 | 2609101302 | 4.10 | 4.96 | |
| Screw | ||||
| 30 | 2609111844 | 0.83 | 1.00 | |
| Swing-Plate 100X110 | ||||
| 32 | 2609112106 | 6.54 | 7.91 | |
| Plate Delta | ||||
| 32 | 2609101303 | 4.10 | 4.96 | |
| Plate 78X128 | ||||
| 32 | 2609101304 | 1.94 | 2.35 | |
| Sander Plate Delta | ||||
| 33 | 2609199810 | 12.41 | 15.02 | |
| Sander Plate 78x128 | ||||
| 33 | 2609199811 | 12.41 | 15.02 | |
| Sander Plate 101x113 | ||||
| 33 | 2609199744 | 11.88 | 14.37 | |
| Counterweight | ||||
| 34 | 2609111657 | 1.18 | 1.43 | |
| Felt 173mm | ||||
| 35 | 2609170216 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 40 | 2610915161 | |||
| Torx Oval-Head Screw | ||||
| 41 | 2609111845 | 0.83 | 1.00 | |
| Pin | ||||
| 45 | 2610350103 | 1.18 | 1.43 | |
| O-Ring 23,0x3,0 MM | ||||
| 49 | 1610210045 | 1.94 | 2.35 | |
| Punching Tool | ||||
| 654 | 2610920650 | 6.54 | 7.91 | |
| Dust container | ||||
| 655 | 2609199905 | 8.45 | 10.22 | |
| Armature 230V | ||||
| 803 | 2609199883 | 23.75 | 28.74 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 1600A00Z0M | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2609120199 | 7.58 | 9.17 | |
| Ball Bearing | ||||
| 813 | 2610917489 | 7.58 | 9.17 | |
