Here you will find all available parts and drawings of the 'Bosch 0601297008 ( GSS140A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

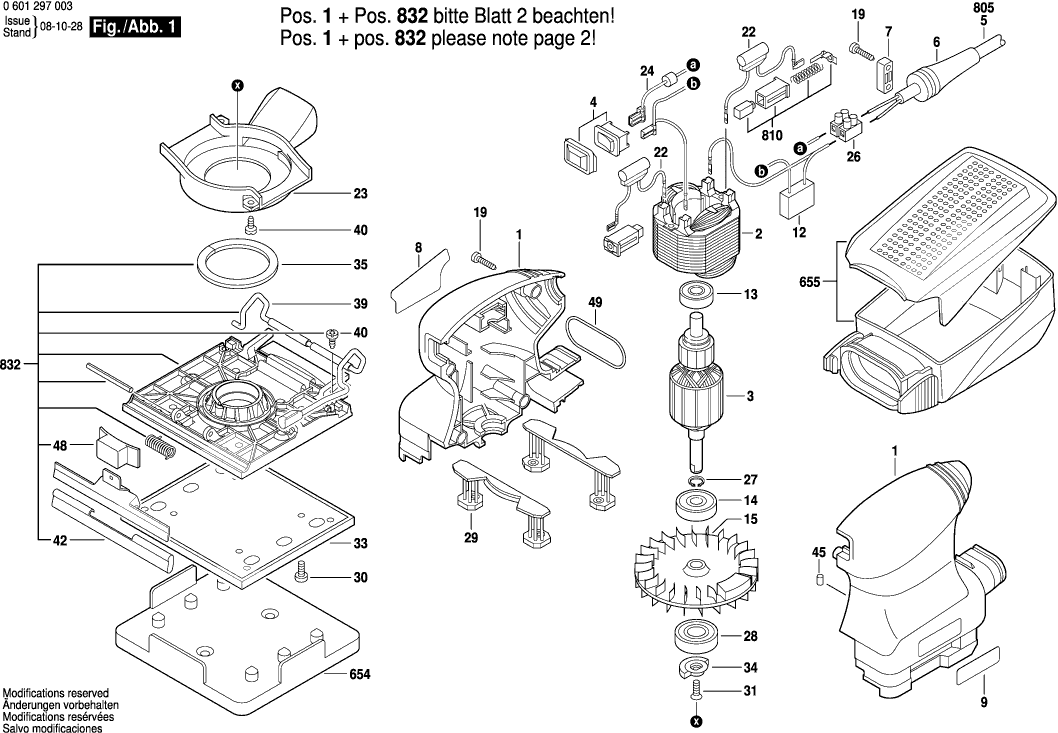

Technical drawing of model Bosch 0601297008 ( GSS140A )
Spare parts list of model Bosch 0601297008 ( GSS140A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100680 | 20.42 | 24.71 | |
| Field 230V | ||||
| 2 | 2610920611 | 18.19 | 22.01 | |
| Armature 230V | ||||
| 3 | 2610920610 | 40.61 | 49.14 | |
| Switch | ||||
| 4 | 1607200190 | 7.58 | 9.17 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Nameplate | ||||
| 8 | 2610921677 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 9 | 2610921050 | 1.18 | 1.43 | |
| Suppression Filter | ||||
| 12 | 2610920617 | 1.94 | 2.35 | |
| Ball Bearing | ||||
| 13 | 2610917489 | 7.58 | 9.17 | |
| Ball Bearing | ||||
| 14 | 2610917489 | 7.58 | 9.17 | |
| Fan | ||||
| 15 | 2610920618 | 5.83 | 7.05 | |
| Screw ST3,9x19 | ||||
| 19 | 2610315386 | 1.18 | 1.43 | |
| Suppression Filter | ||||
| 22 | 2610920619 | 2.71 | 3.28 | |
| Fan Cover | ||||
| 23 | 2610920620 | 5.33 | 6.45 | |
| Cable | ||||
| 24 | 2610928031 | 4.10 | 4.96 | |
| Connection Block | ||||
| 26 | 2610910009 | 1.70 | 2.06 | |
| Spring retaining ring DIN471-8 | ||||
| 27 | 2916649005 | 0.83 | 1.00 | |
| Ball Bearing | ||||
| 28 | 2609110748 | 5.83 | 7.05 | |
| Vibration Foot | ||||
| 29 | 2610921132 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 30 | 2610915161 | |||
| Screw | ||||
| 31 | 2610991395 | 0.83 | 1.00 | |
| Foam Panel | ||||
| 33 | 2610920631 | 13.93 | 16.86 | |
| Counterweight | ||||
| 34 | 2610920634 | 2.71 | 3.28 | |
| Felt | ||||
| 35 | 2610920635 | 1.18 | 1.43 | |
| Clamp Handle | ||||
| 39 | 2610925983 | 12.41 | 15.02 | |
| Torx Oval-Head Screw 4x8 | ||||
| 40 | 2603490020 | 0.83 | 1.00 | |
| Rubber Bar | ||||
| 42 | 2609101232 | 1.18 | 1.43 | |
| Pin | ||||
| 45 | 2610350103 | 1.18 | 1.43 | |
| Push Button | ||||
| 48 | 2610920651 | 1.70 | 2.06 | |
| O-Ring | ||||
| 49 | 2610920652 | 1.70 | 2.06 | |
| Punching Tool | ||||
| 654 | 2610920650 | 6.54 | 7.91 | |
| Dust container | ||||
| 655 | 2609199193 | 7.58 | 9.17 | |
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| Carbon-Brush Set | ||||
| 810 | 2610924701 | 7.58 | 9.17 | |
| Swing-Plate | ||||
| 832 | 2609100684 | 26.84 | 32.48 | |
