Here you will find all available parts and drawings of the 'Bosch 0601289103 (GSS14)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

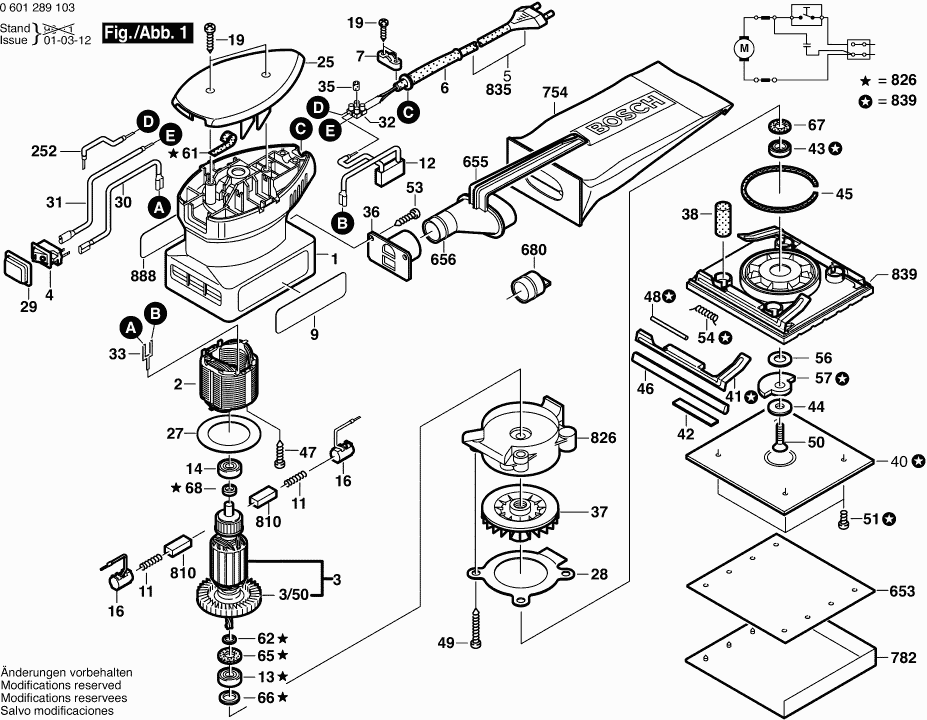

Technical drawing of model Bosch 0601289103 (GSS14)
Spare parts list of model Bosch 0601289103 (GSS14)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605108047 | 15.26 | 18.46 | |
| No longer available, no replacement | ||||
| 2 | 2604220507 | |||
| No longer available, no replacement | ||||
| 3 | 2604010719 | |||
| Fan | ||||
| 3/50 | 2606610055 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 4 | 2607200215 | |||
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118592 | 2.38 | 2.88 | |
| Compression Spring | ||||
| 11 | 2604610026 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 13 | 1900905044 | 6.53 | 7.90 | |
| No longer available, no replacement | ||||
| 14 | 1900905048 | |||
| Brush Holder | ||||
| 16 | 2604449027 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 25 | 2605500094 | |||
| Guide-Plate | ||||
| 27 | 2600034000 | 2.00 | 2.42 | |
| Sheet metal cover | ||||
| 28 | 2600034001 | 2.87 | 3.47 | |
| Protective Cap | ||||
| 29 | 2605510033 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 30 | 2604448104 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 31 | 2604448105 | 0.83 | 1.00 | |
| Socket-Terminal Strip | ||||
| 32 | 1901091101 | 6.73 | 8.14 | |
| Blade terminal | ||||
| 33 | 2604477002 | 1.24 | 1.50 | |
| Rubber Buffer | ||||
| 35 | 2603100049 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 36 | 2605702007 | |||
| Fan | ||||
| 37 | 2606610056 | 11.94 | 14.45 | |
| No longer available, no replacement | ||||
| 38 | 1603101018 | |||
| Base Plate | ||||
| 39 | 2608000054 | 0.83 | 1.00 | |
| Sander Plate | ||||
| 40 | 2608000056 | 11.65 | 14.10 | |
| Tensioning Lever | ||||
| 41 | 2601923005 | 2.87 | 3.47 | |
| Clamping Strip | ||||
| 42 | 2601007021 | 2.00 | 2.42 | |
| groove ball bearing | ||||
| 43 | 2600905045 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 44 | 2600103002 | |||
| Felt Strip | ||||
| 45 | 2601005013 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 46 | 2601099030 | |||
| Tapping Screw | ||||
| 47 | 2603435086 | 1.32 | 1.60 | |
| Straight Pin | ||||
| 48 | 2603101036 | 1.73 | 2.09 | |
| Torx Oval-Head Screw | ||||
| 49 | 2603490024 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 2910871122 | |||
| Thread-forming tap. Screw | ||||
| 51 | 2603410048 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 53 | 2603490020 | 1.00 | 1.21 | |
| Coiled Spring | ||||
| 54 | 2604651006 | 1.24 | 1.50 | |
| Plain Washer | ||||
| 56 | 2600100044 | 1.24 | 1.50 | |
| Counterweight | ||||
| 57 | 2608012006 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 61 | 2600005010 | |||
| No longer available, no replacement | ||||
| 62 | 2600100094 | |||
| Felt Washer | ||||
| 65 | 2600108013 | 1.32 | 1.60 | |
| Felt Washer | ||||
| 66 | 2600108012 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 67 | 2600101025 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 68 | 2600005006 | 2.00 | 2.42 | |
| O-Ring | ||||
| 254 | 1610210075 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 655 | 2605702031 | |||
| O-Ring | ||||
| 656 | 1610210075 | 2.40 | 2.90 | |
| Dust Bag | ||||
| 754 | 2605411067 | 0.83 | 1.00 | |
| Dust Bag | ||||
| 754 | 2605411068 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 810 | 2604321917 | |||
| Bearing Flange | ||||
| 826 | 2605703901 | 15.26 | 18.46 | |
| Power supply cord | ||||
| 835 | 1607000385 | 13.13 | 15.89 | |
| Swing-Plate | ||||
| 839 | 2608000915 | 65.16 | 78.84 | |
| Nameplate | ||||
| 888 | 2601118286 | 0.83 | 1.00 | |
