Here you will find all available parts and drawings of the 'Bosch 3601JL0000 ( GSS12V-13 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

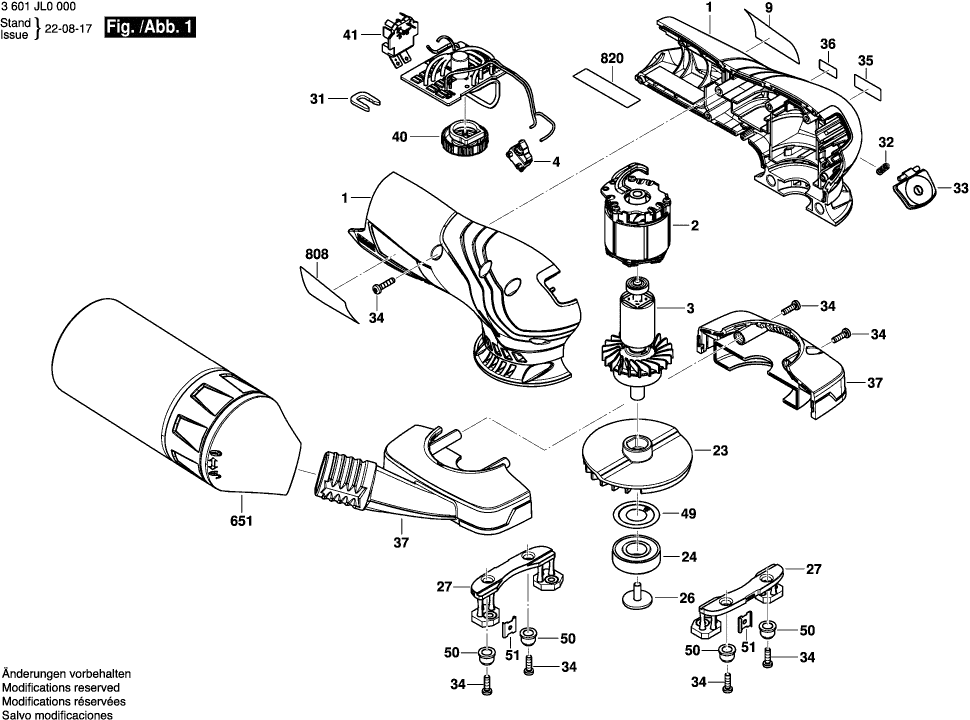

Technical drawing of model Bosch 3601JL0000 ( GSS12V-13 )
Spare parts list of model Bosch 3601JL0000 ( GSS12V-13 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1619PB5576 | 12.41 | 15.02 | |
| Stator | ||||
| 2 | 1619PB7633 | 33.45 | 40.47 | |
| Armature | ||||
| 3 | 1619PB5546 | 36.85 | 44.59 | |
| Switch | ||||
| 4 | 2607202753 | 5.83 | 7.05 | |
| Label | ||||
| 9 | 6082Y00E4M | 1.18 | 1.43 | |
| Fan | ||||
| 23 | 1619PB7621 | 11.88 | 14.37 | |
| groove ball bearing | ||||
| 24 | 1619PB7622 | 4.70 | 5.69 | |
| Torx Oval-Head Screw | ||||
| 26 | 1619PB5551 | 0.83 | 1.00 | |
| Vibration Foot | ||||
| 27 | 1619PB7623 | 4.10 | 4.96 | |
| Plate 78X128 | ||||
| 28 | 2609101304 | 1.94 | 2.35 | |
| Swing-Plate | ||||
| 28/1 | 1600A029FP | 5.83 | 7.05 | |
| Plate Delta | ||||
| 28/2 | 2609101303 | 4.10 | 4.96 | |
| Foam Panel | ||||
| 29 | 1600A00P44 | 9.53 | 11.53 | |
| Foam Panel 101x113 | ||||
| 29/1 | 1600A00N2Y | 10.73 | 12.98 | |
| Foam Panel | ||||
| 29/2 | 1600A00P45 | 12.41 | 15.02 | |
| Torx Oval-Head Screw | ||||
| 30 | 1619PB5555 | 0.83 | 1.00 | |
| U-shaped clip | ||||
| 31 | 1619PB5588 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 32 | 1619PB5557 | 0.83 | 1.00 | |
| Switch Button | ||||
| 33 | 1619PB5558 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 34 | 1619PB5559 | 0.83 | 1.00 | |
| Sticker | ||||
| 35 | 1619PB5560 | 0.83 | 1.00 | |
| Label | ||||
| 36 | 1619PB5582 | 0.83 | 1.00 | |
| Housing | ||||
| 37 | 1619PB7627 | 7.58 | 9.17 | |
| Speed governor | ||||
| 40 | 1619PB5601 | 4.70 | 5.69 | |
| Contact retainer | ||||
| 41 | 1619PB5614 | 3.31 | 4.01 | |
| Thread-forming tap. Screw M4x8 | ||||
| 43 | 2603410048 | 1.18 | 1.43 | |
| Clamp Handle | ||||
| 44 | 1600A029KK | 1.18 | 1.43 | |
| Felt 173mm | ||||
| 45 | 2609170216 | 1.18 | 1.43 | |
| Felt 143mm | ||||
| 45/1 | 2609170223 | 1.70 | 2.06 | |
| Washer | ||||
| 49 | 1619PB7632 | 1.18 | 1.43 | |
| Connector Bushing | ||||
| 50 | 1619PB7630 | 0.83 | 1.00 | |
| Clip | ||||
| 51 | 1619PB7631 | 0.83 | 1.00 | |
| Dust container | ||||
| 651 | 1619PB5597 | 13.93 | 16.86 | |
| Punching Tool | ||||
| 653 | 1619PB7067 | 4.10 | 4.96 | |
| Nameplate | ||||
| 808 | 1619PB7108 | 1.94 | 2.35 | |
| Nameplate | ||||
| 820 | 1619PB7109 | 1.94 | 2.35 | |
