Here you will find all available parts and drawings of the 'Bosch 0601921966 ( GSR9,6VES )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

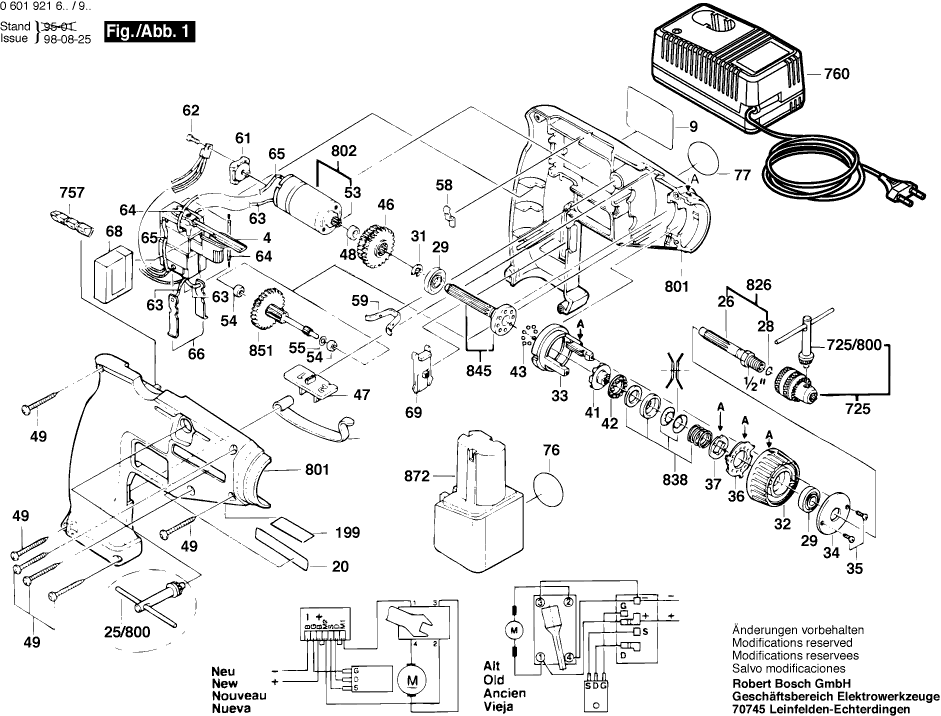

Technical drawing of model Bosch 0601921966 ( GSR9,6VES )

Spare parts list of model Bosch 0601921966 ( GSR9,6VES )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
On-Off Switch
4 2607200302 40.61 49.14
Sticker SUNNY SIDE
9 2601110713 0.83 1.00
Sticker SHADOW SIDE
20 2601110606 1.18 1.43
Retaining ring
28 2604601004 1.18 1.43
groove ball bearing
29 1900905127 22.36 27.06
Spring retaining ring DIN 471-10x1MM-FSt
31 2916650001 1.94 2.35
No longer available, no replacement
32 2605190014
Setting Socket
33 2600499015 7.58 9.17
Retaining Washer WHITE
34 2600134004 1.18 1.43
Thread-forming tap. Screw DIN 7500 C M 3x8 MM
35 2603490003 1.18 1.43
Perforated disk
36 2600190041 2.24 2.71
Catch Disk
37 2600290019 1.18 1.43
Coupling Half
41 2606490047 4.70 5.69
Ball Cage
42 2600923001 2.71 3.28
Ball DIN 5401-4 MM-III-ST
43 1903230007 1.18 1.43
Cylindrical Gear Z=58/67
46 1609340007 11.88 14.37
Adjusting Slide BLACK
47 2601099027 1.18 1.43
Sintered-Metal Bushing
48 2600301011 1.18 1.43
Screw 4x16
49 2603490022 0.83 1.00
Pinion Z=11
53 2606316112 3.31 4.01
Sintered-Metal Bushing
54 2600302002 1.18 1.43
Shim 0,3 MM THICK
55 2600100636 1.18 1.43
Holding Spring
58 2601250002 1.18 1.43
No longer available, no replacement
59 2601250003
Heat Sink
61 2605715000 3.31 4.01
Oval-Head Screw DIN 7985-M3x8-4.8
62 2910641050 0.83 1.00
Connecting Cable L=52 MM WHITE
63 2604413005 1.18 1.43
Connecting Cable L=79 MM WHITE
64 2604413004 1.18 1.43
Connecting Cable
65 2604413009 0.83 1.00
Contact Spring
66 2601324012 1.18 1.43
No longer available, no replacement
68 2601010038
Locking Lever 36,5 MM
69 2601099026 1.18 1.43
No longer available, no replacement
71 2601251003
No longer available, no replacement
76 2601110461
Sticker YELLOW
77 2601110230 1.18 1.43
No longer available, no replacement
199 1601110265
No information available, not orderable
725 1608571068
No information available, not orderable
725/800 1607950053
Screwdriver Blade 6 MM
757 1609200147 2.71 3.28
Fast Charger EU 230/7,2-24V, 1h
760 2607224425 130.32 157.69
Fast Charger USA 120/7,2-24V, 1h
760 2607224431 130.32 157.69
Fast Charger J 100/7,2-24V, 1h
760 2607224435 113.29 137.08
Fast Charger GB 230/7,2-24V, 1h
760 2607224427 91.56 110.79
Fast Charger AUS 240/7,2-14,4V, 1h
760 2607224443 81.47 98.58
Housing Section BLUE
801 2605104776 18.19 22.01
DC motor 9,6V
802 2607022902 15.71 19.01
Drilling Spindle 1/2"
826 2606309912 12.41 15.02
No longer available, no replacement
838 2607001126
Coupling Half
845 2606436900 12.41 15.02
Toothed Shaft Z=10/19/81
851 1609340005 12.41 15.02
No longer available, no replacement
872 2607335203
No information available, not orderable
899 0601921927
