Here you will find all available parts and drawings of the 'Bosch 0601934603 ( GSR9,6VES-1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

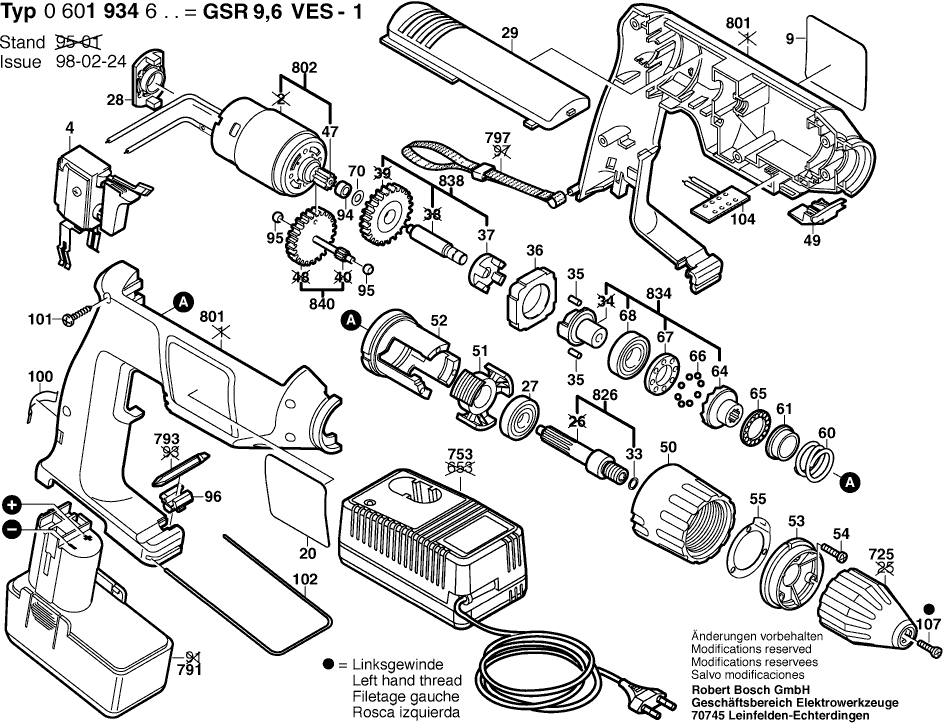

Technical drawing of model Bosch 0601934603 ( GSR9,6VES-1 )
Spare parts list of model Bosch 0601934603 ( GSR9,6VES-1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 4 | 2607200309 | |||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118446 | 2.71 | 3.28 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118447 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Adapter Insert BLACK | ||||
| 28 | 2605719007 | 1.18 | 1.43 | |
| Insert Piece BLACK | ||||
| 29 | 2605510120 | 1.18 | 1.43 | |
| Retaining ring | ||||
| 33 | 2604601004 | 1.18 | 1.43 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 36 | 2600202025 | 4.70 | 5.69 | |
| Carrier | ||||
| 37 | 2606440002 | 2.24 | 2.71 | |
| Pinion Z=11 | ||||
| 47 | 2606316112 | 3.31 | 4.01 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Setting Ring | ||||
| 50 | 2605190041 | 7.58 | 9.17 | |
| Sliding Piece | ||||
| 51 | 2608005044 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 52 | 2600499027 | |||
| Clamping Sleeve | ||||
| 53 | 2608005045 | 2.71 | 3.28 | |
| Torx Oval-Head Screw 4x25 | ||||
| 54 | 2603490024 | 1.18 | 1.43 | |
| Catch Disk | ||||
| 55 | 2600190056 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 60 | 2604619004 | |||
| No longer available, no replacement | ||||
| 61 | 2607001126 | |||
| Coupling Half | ||||
| 64 | 2606490047 | 4.70 | 5.69 | |
| Ball Cage | ||||
| 65 | 2600923001 | 2.71 | 3.28 | |
| Ball DIN 5401-4 MM-III-ST | ||||
| 66 | 1903230007 | 1.18 | 1.43 | |
| Coupling Half | ||||
| 67 | 2606436001 | 4.10 | 4.96 | |
| groove ball bearing 15x32x9 | ||||
| 68 | 1900905122 | 7.58 | 9.17 | |
| Shim 0,5 MM | ||||
| 70 | 2600100695 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.18 | 1.43 | |
| Support | ||||
| 96 | 2608040131 | 1.70 | 2.06 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Tapping Screw DIN7981-ST3,9x19-F-Z | ||||
| 101 | 2912401420 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| Countersunk-Head Screw M6x38/12(Ø10) LEFTHAND THR | ||||
| 107 | 2603421218 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 725 | 2608572053 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Slide-In Accu Package 9,6V, 1,5 Ah, NiCd | ||||
| 791 | 2607336143 | 101.94 | 123.35 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Handle Cover BLUE | ||||
| 801 | 2605104851 | 13.93 | 16.86 | |
| DC motor 9,6V | ||||
| 802 | 2607022918 | 29.75 | 36.00 | |
| Drilling Spindle 1/2" | ||||
| 826 | 2606309034 | 13.93 | 16.86 | |
| Eccentric | ||||
| 834 | 2602210904 | 26.84 | 32.48 | |
| Jack Shaft | ||||
| 838 | 2606309923 | 15.71 | 19.01 | |
| Toothed Shaft Z=81 | ||||
| 840 | 2606308919 | 10.73 | 12.98 | |
| No information available, not orderable | ||||
| 899 | 0601934627 | |||
