Here you will find all available parts and drawings of the 'Bosch 0601916630 ( GSR9,6V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

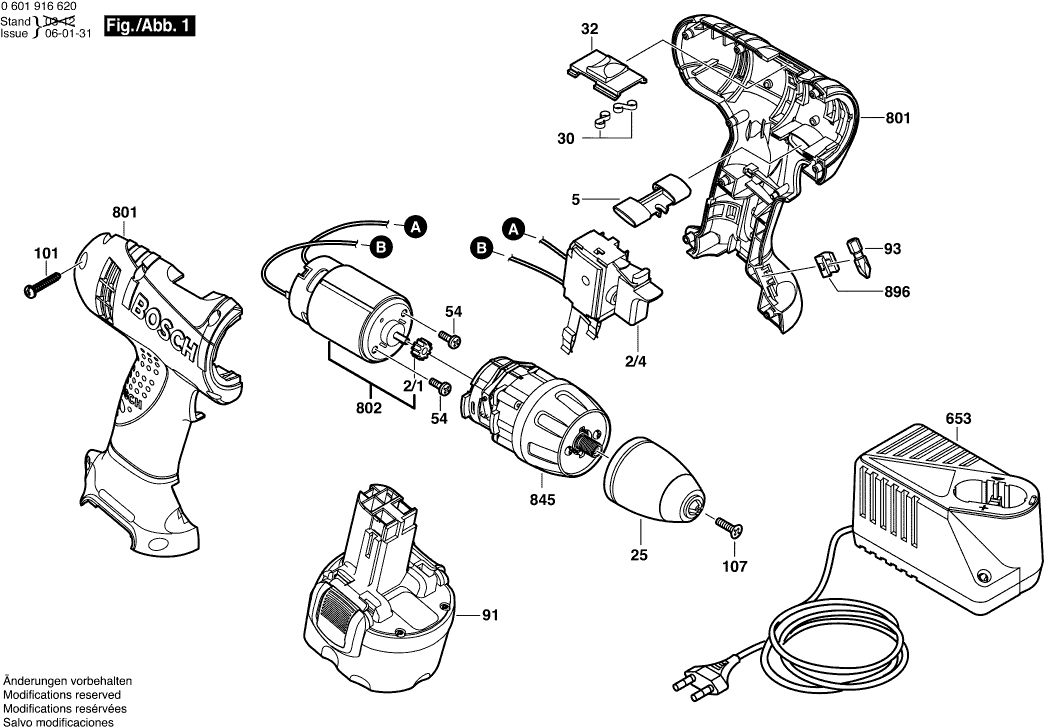

Technical drawing of model Bosch 0601916630 ( GSR9,6V )
Spare parts list of model Bosch 0601916630 ( GSR9,6V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2/1 | 2606316161 | |||
| On-Off Switch | ||||
| 2/4 | 2607200461 | 36.85 | 44.59 | |
| Adjusting Slide RED | ||||
| 5 | 2601099114 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 25 | 2608572214 | 40.61 | 49.14 | |
| Leaf Spring | ||||
| 30 | 2604690022 | 0.83 | 1.00 | |
| Adjusting Slide RED | ||||
| 32 | 2601099115 | 0.83 | 1.00 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Slide-In Battery Pack 9,6V,1,5Ah, NiCd | ||||
| 91 | 2607335707 | 91.56 | 110.79 | |
| Slide-In Accu Package 9,6V, 1,2Ah, NiCd | ||||
| 91 | 2607335271 | 73.72 | 89.20 | |
| No longer available, no replacement | ||||
| 93 | 2607000366 | |||
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Fast Charger J 100/7,2-24V, 15 MIN. | ||||
| 653 | 2607224493 | 209.26 | 253.20 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger J 100/7,2-24V, 1h | ||||
| 653 | 2607224435 | 113.29 | 137.08 | |
| Fast Charger ROK 220/7.2-24V, 1h | ||||
| 653 | 2607224437 | 101.94 | 123.35 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224703 | 101.94 | 123.35 | |
| Fast Charger CN 220/7,2-14,4V, 1h | ||||
| 653 | 2607224727 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 653 | 2607224443 | 81.47 | 98.58 | |
| Fast Charger USA 120/7,2-14,4V, 1h | ||||
| 653 | 2607224397 | 73.72 | 89.20 | |
| Housing Section | ||||
| 801 | 2605105950 | 26.84 | 32.48 | |
| DC motor 9,6V | ||||
| 802 | 2607022867 | 20.42 | 24.71 | |
| Planetary Gear Train | ||||
| 845 | 2606200943 | 36.85 | 44.59 | |
| Spring Element | ||||
| 896 | 2604690026 | 1.18 | 1.43 | |
