Here you will find all available parts and drawings of the 'Bosch 0601916620 ( GSR9,6V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

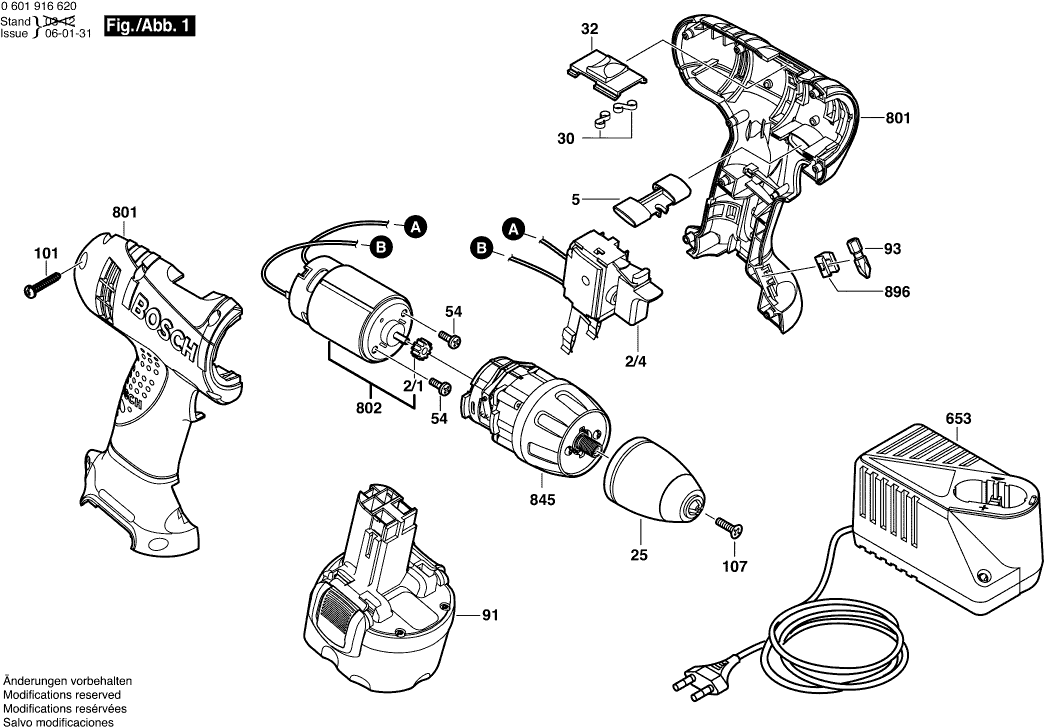

Technical drawing of model Bosch 0601916620 ( GSR9,6V )
Spare parts list of model Bosch 0601916620 ( GSR9,6V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2/1 | 2606316161 | |||
| On-Off Switch | ||||
| 2/4 | 2607200461 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 5 | 2601099114 | |||
| Keyless Chuck | ||||
| 25 | 2608572214 | 47.53 | 57.51 | |
| Leaf Spring | ||||
| 30 | 2604690022 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 32 | 2601099115 | 1.00 | 1.21 | |
| Torx SH cap screw | ||||
| 54 | 2603414048 | 1.00 | 1.21 | |
| Slide-In Accu Package | ||||
| 91 | 2607335707 | 110.30 | 133.46 | |
| Slide-In Accu Package | ||||
| 91 | 2607335271 | 88.83 | 107.48 | |
| No longer available, no replacement | ||||
| 93 | 2607000366 | |||
| Torx Oval-Head Screw | ||||
| 101 | 2603490018 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 107 | 2609110721 | 2.08 | 2.52 | |
| Fast Charger | ||||
| 653 | 2607224493 | 244.89 | 296.32 | |
| Fast Charger | ||||
| 653 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 653 | 2607224435 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 653 | 2607224437 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 653 | 2607224701 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 653 | 2607224703 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 653 | 2607224727 | 111.64 | 135.08 | |
| Fast Charger | ||||
| 653 | 2607224427 | 110.30 | 133.46 | |
| Fast Charger | ||||
| 653 | 2607224443 | 98.18 | 118.80 | |
| Fast Charger | ||||
| 653 | 2607224397 | 88.83 | 107.48 | |
| Housing Section | ||||
| 801 | 2605105926 | 19.36 | 23.43 | |
| DC motor | ||||
| 802 | 2607022867 | 22.88 | 27.68 | |
| Planetary Gear Train | ||||
| 845 | 2606200938 | 39.20 | 47.43 | |
| Spring Element | ||||
| 896 | 2604690026 | 1.49 | 1.80 | |
