Here you will find all available parts and drawings of the 'Bosch 0601427703 (GSR8-16KE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

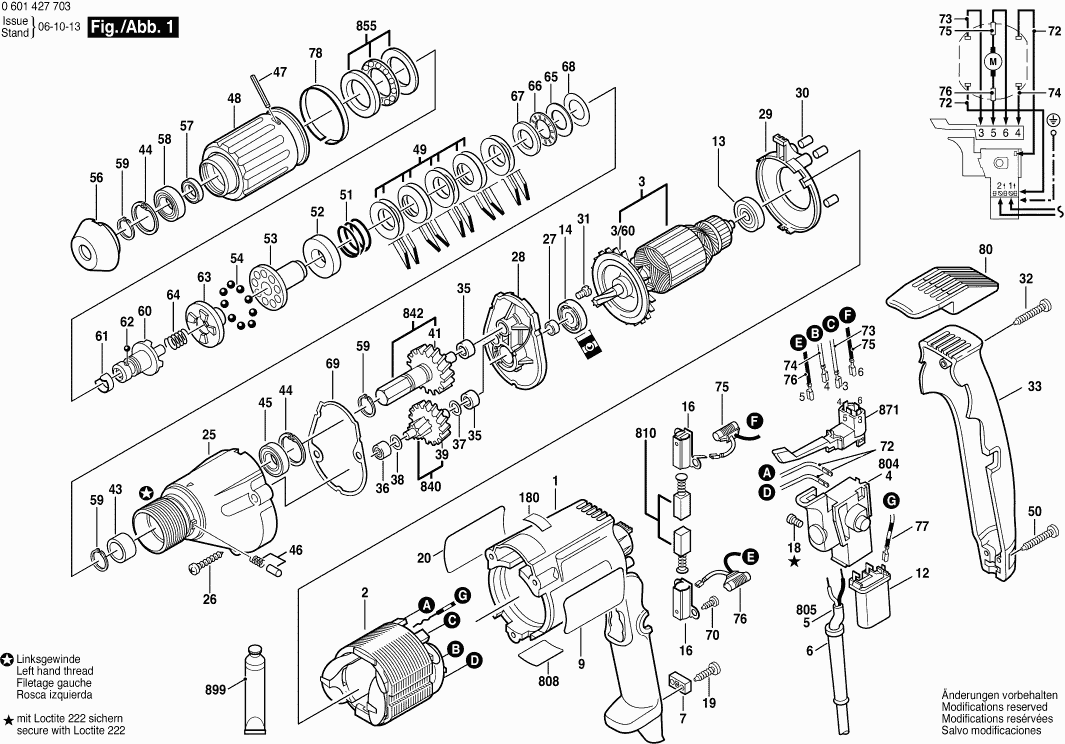

Technical drawing of model Bosch 0601427703 (GSR8-16KE)
Spare parts list of model Bosch 0601427703 (GSR8-16KE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104332 | 15.26 | 18.46 | |
| Field | ||||
| 2 | 2604220429 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 3 | 2604010739 | |||
| Fan | ||||
| 3/60 | 2606610027 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 3601110337 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 1900905018 | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 2604337003 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Sticker | ||||
| 20 | 3601110338 | 2.87 | 3.47 | |
| Gear Housing | ||||
| 25 | 3605108128 | 17.22 | 20.84 | |
| Tapping Screw | ||||
| 26 | 2912405082 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 27 | 2600400008 | |||
| Intermediate Flange | ||||
| 28 | 3605806536 | 11.65 | 14.10 | |
| Cover Disc | ||||
| 29 | 2601328046 | 2.52 | 3.05 | |
| Rubber Buffer | ||||
| 30 | 3602391503 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 31 | 2914411045 | |||
| Torx Oval-Head Screw | ||||
| 32 | 2603490024 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 33 | 2605132050 | 8.48 | 10.26 | |
| Nozzle Socket | ||||
| 35 | 3600910505 | 4.12 | 4.99 | |
| Needle bearing | ||||
| 36 | 2600914017 | 10.90 | 13.19 | |
| Shim | ||||
| 37 | 2600100607 | 1.49 | 1.80 | |
| Shim | ||||
| 38 | 2600100570 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 39 | 3606317035 | 19.36 | 23.43 | |
| Cylindrical Gear | ||||
| 41 | 3606317036 | 28.56 | 34.56 | |
| Spacer Sleeve | ||||
| 43 | 3600300040 | 11.65 | 14.10 | |
| Spring retaining ring | ||||
| 44 | 3600119012 | 1.24 | 1.50 | |
| groove ball bearing | ||||
| 45 | 3600900020 | 12.82 | 15.51 | |
| Ratchet Cap | ||||
| 46 | 2600590006 | 1.49 | 1.80 | |
| Slotted Spring Pin | ||||
| 47 | 2917760088 | 2.00 | 2.42 | |
| Clutch Housing | ||||
| 48 | 3605108125 | 89.25 | 107.99 | |
| Disc Spring | ||||
| 49 | 2916160061 | 2.00 | 2.42 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 51 | 2604610031 | 1.73 | 2.09 | |
| Guide Disc | ||||
| 52 | 3600106001 | 15.26 | 18.46 | |
| Drive Bushing | ||||
| 53 | 3600313010 | 39.20 | 47.43 | |
| Ball | ||||
| 54 | 1903230011 | 2.40 | 2.90 | |
| Protective Cap | ||||
| 56 | 3600502008 | 4.12 | 4.99 | |
| Seal Ring | ||||
| 57 | 2600283012 | 2.86 | 3.46 | |
| groove ball bearing | ||||
| 58 | 3600905084 | 11.94 | 14.45 | |
| Spring retaining ring | ||||
| 59 | 3600119013 | 1.32 | 1.60 | |
| Coupling Half | ||||
| 60 | 3605405002 | 80.75 | 97.71 | |
| Leaf Spring | ||||
| 61 | 2601250001 | 3.44 | 4.16 | |
| Ball | ||||
| 62 | 1903230003 | 2.18 | 2.64 | |
| Coupling Half | ||||
| 63 | 3605405003 | 52.75 | 63.83 | |
| Compression Spring | ||||
| 64 | 3604619014 | 1.73 | 2.09 | |
| Thrust Bearing Disc | ||||
| 65 | 1610101608 | 2.08 | 2.52 | |
| Thrust Needle Rim | ||||
| 66 | 1610920001 | 3.44 | 4.16 | |
| Rotor Disc | ||||
| 67 | 3600103008 | 6.22 | 7.53 | |
| Shim | ||||
| 68 | 3600100052 | 1.24 | 1.50 | |
| Shim | ||||
| 68 | 3600100050 | 1.24 | 1.50 | |
| Shim | ||||
| 68 | 3600100051 | 0.83 | 1.00 | |
| Flat Seal Ring | ||||
| 69 | 3601016502 | 3.48 | 4.21 | |
| Torx Oval-Head Screw | ||||
| 70 | 2603490017 | 2.08 | 2.52 | |
| Cable | ||||
| 72 | 2604448005 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 73 | 2604448074 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 74 | 2604448100 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 75 | 2604465086 | 5.81 | 7.03 | |
| Suppression Filter | ||||
| 76 | 2604465086 | 5.81 | 7.03 | |
| Earth Conductor | ||||
| 77 | 2604448103 | 1.00 | 1.21 | |
| Sticker | ||||
| 78 | 3601110191 | 2.87 | 3.47 | |
| Clip | ||||
| 80 | 3600690503 | 8.06 | 9.75 | |
| No longer available, no replacement | ||||
| 804 | 2607200209 | |||
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H5 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| Toothed Shaft | ||||
| 840 | 3603120017 | 43.21 | 52.28 | |
| Spindle With Gear | ||||
| 842 | 3603120018 | 58.79 | 71.14 | |
| D-Groove Ball Thr Bearing | ||||
| 855 | 3600929022 | 28.56 | 34.56 | |
| Change-Over Switch | ||||
| 871 | 2607200231 | 14.94 | 18.08 | |
| Grease Tube | ||||
| 899 | 3605430004 | 37.50 | 45.38 | |
