Here you will find all available parts and drawings of the 'Bosch 0601417703 (GSR6-6KE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

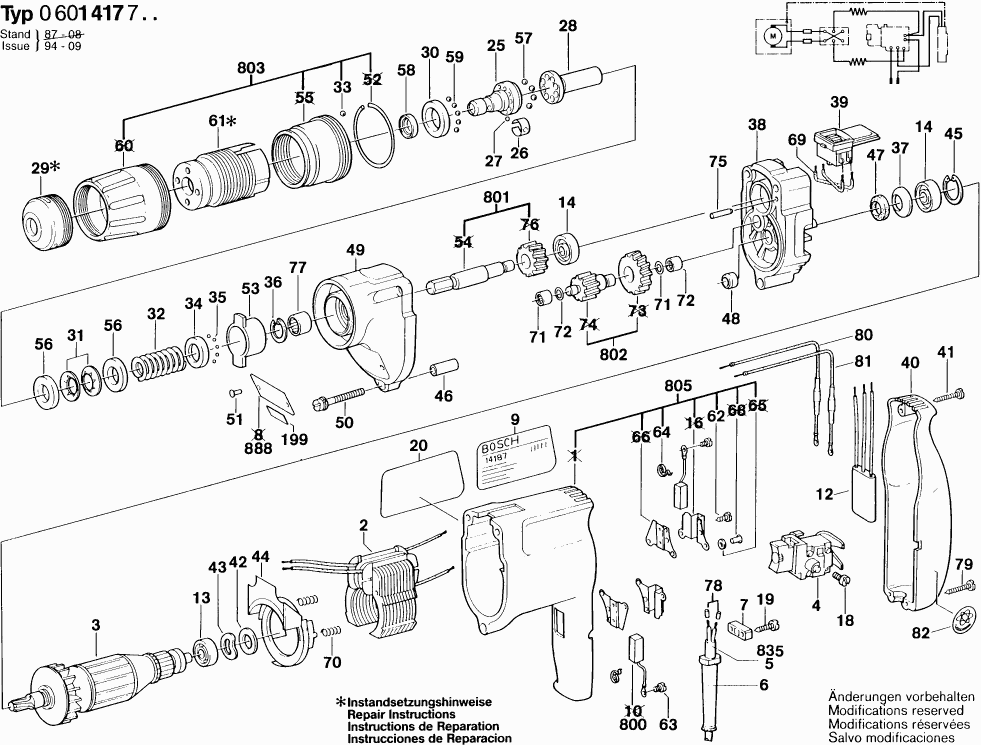

Technical drawing of model Bosch 0601417703 (GSR6-6KE)
Spare parts list of model Bosch 0601417703 (GSR6-6KE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604222302 | 23.90 | 28.92 | |
| Armature | ||||
| 3 | 2604010533 | 71.68 | 86.73 | |
| No longer available, no replacement | ||||
| 4 | 2607200073 | |||
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601110414 | 0.83 | 1.00 | |
| Suppression Filter | ||||
| 12 | 2607329002 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 13 | 1900905018 | 16.79 | 20.32 | |
| Ball Bearing | ||||
| 14 | 1900905029 | 18.94 | 22.92 | |
| Socket head cap screw | ||||
| 18 | 2603410023 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910211019 | 1.00 | 1.21 | |
| Sticker | ||||
| 20 | 2601110099 | 0.83 | 1.00 | |
| Coupling Half | ||||
| 25 | 2606490043 | 65.16 | 78.84 | |
| Leaf Spring | ||||
| 26 | 2601250001 | 3.44 | 4.16 | |
| Ball | ||||
| 27 | 1903230003 | 2.18 | 2.64 | |
| Drive Bushing | ||||
| 28 | 2606445005 | 52.45 | 63.46 | |
| Protective Cap | ||||
| 29 | 2600502001 | 2.87 | 3.47 | |
| Spherical Washer | ||||
| 30 | 2600114029 | 21.73 | 26.29 | |
| Disc Spring | ||||
| 31 | 2600550018 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 32 | 2604619009 | 2.86 | 3.46 | |
| Ball | ||||
| 33 | 1903230006 | 2.08 | 2.52 | |
| Retaining snap ring | ||||
| 34 | 2600501031 | 13.13 | 15.89 | |
| Ball | ||||
| 35 | 1903230004 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 36 | 2916600009 | 1.00 | 1.21 | |
| Cupped Washer | ||||
| 37 | 2600500030 | 1.49 | 1.80 | |
| Intermediate Flange | ||||
| 38 | 2605700925 | 21.30 | 25.77 | |
| Change-Over Switch | ||||
| 39 | 2607200114 | 18.94 | 22.92 | |
| Housing Cover | ||||
| 40 | 2605132017 | 8.35 | 10.10 | |
| Tapping Screw | ||||
| 41 | 2910211020 | 2.08 | 2.52 | |
| Shim | ||||
| 42 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 42 | 2600101022 | 1.49 | 1.80 | |
| Shim | ||||
| 42 | 2600101023 | 1.49 | 1.80 | |
| Shim | ||||
| 43 | 2600150004 | 2.08 | 2.52 | |
| Cover Disc | ||||
| 44 | 2601328041 | 2.86 | 3.46 | |
| Spring retaining ring | ||||
| 45 | 2600119000 | 1.49 | 1.80 | |
| Centering Sleeve | ||||
| 46 | 2600409013 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 47 | 2600108000 | 1.49 | 1.80 | |
| Seal Bushing | ||||
| 48 | 2600300049 | 2.40 | 2.90 | |
| Gear Housing | ||||
| 49 | 2605806339 | 52.75 | 63.83 | |
| Screw and washer assembly | ||||
| 50 | 2914501027 | 4.18 | 5.06 | |
| Grooved Nail | ||||
| 51 | 3603133000 | 2.40 | 2.90 | |
| Capsule | ||||
| 53 | 2600516009 | 23.90 | 28.92 | |
| Supporting Disc | ||||
| 56 | 2600103015 | 7.46 | 9.03 | |
| Ball | ||||
| 57 | 1903230009 | 1.00 | 1.21 | |
| Seal Ring | ||||
| 58 | 2600283012 | 2.86 | 3.46 | |
| Ball | ||||
| 59 | 1903230007 | 1.49 | 1.80 | |
| Threaded Sleeve | ||||
| 61 | 2600390022 | 80.75 | 97.71 | |
| Tapping Screw | ||||
| 62 | 2603435016 | 1.49 | 1.80 | |
| Screw and washer assembly | ||||
| 63 | 2914501011 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 64 | 2604652003 | 1.49 | 1.80 | |
| Cable | ||||
| 69 | 2604411524 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 70 | 2604611026 | 1.49 | 1.80 | |
| Needle-Roller Bearing | ||||
| 71 | 2600914010 | 2.86 | 3.46 | |
| Shim | ||||
| 72 | 2600100607 | 1.49 | 1.80 | |
| Needle Roller | ||||
| 75 | 1903201042 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 77 | 2600914016 | 3.44 | 4.16 | |
| End Splice | ||||
| 78 | 1900452012 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 79 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 80 | 2604465027 | |||
| Suppressor Box | ||||
| 81 | 2604465026 | 5.81 | 7.03 | |
| Sticker | ||||
| 82 | 2601110230 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| No longer available, no replacement | ||||
| 800 | 2604320902 | |||
| Drive Shaft | ||||
| 801 | 2603124900 | 47.53 | 57.51 | |
| Toothed Shaft | ||||
| 802 | 2606311903 | 43.12 | 52.18 | |
| Assembly Of Service Parts | ||||
| 803 | 3607031164 | 58.79 | 71.14 | |
| Motor Housing | ||||
| 805 | 2605104954 | 23.90 | 28.92 | |
| Power supply cord | ||||
| 835 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
