Here you will find all available parts and drawings of the 'Bosch 3601D45031 (GSR6-25TE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

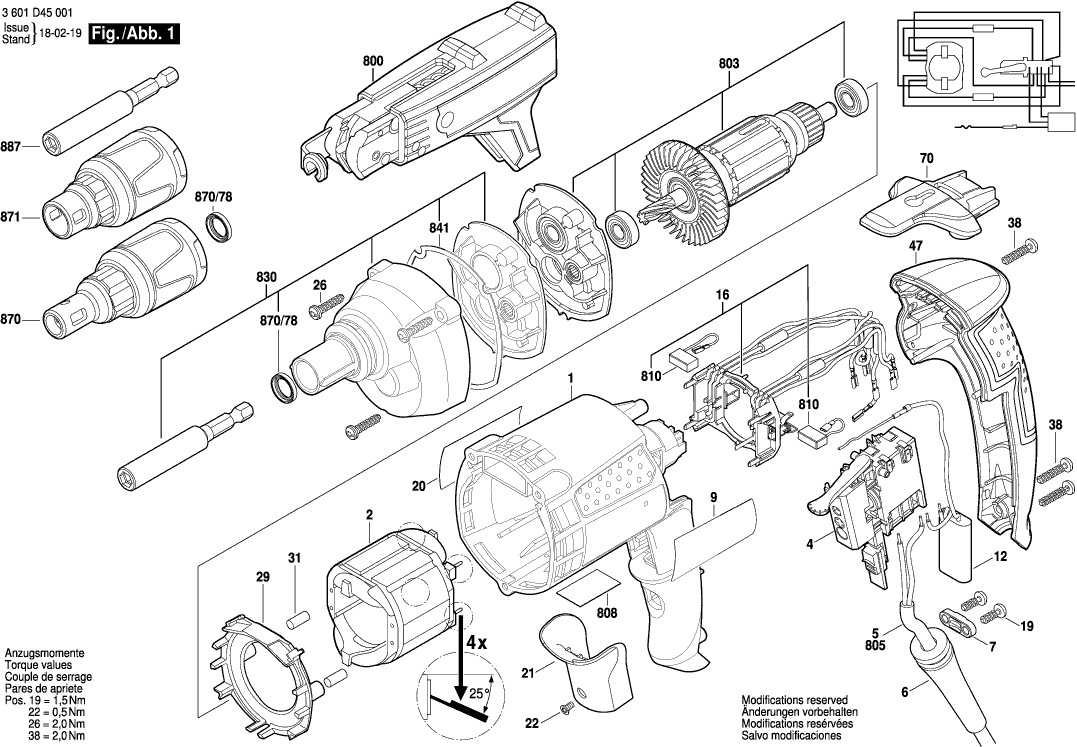

Technical drawing of model Bosch 3601D45031 (GSR6-25TE)
Spare parts list of model Bosch 3601D45031 (GSR6-25TE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605108083 | 27.81 | 33.65 | |
| Field | ||||
| 2 | 2604220456 | 16.79 | 20.32 | |
| Switch | ||||
| 4 | 2607200638 | 43.12 | 52.18 | |
| Power supply cord | ||||
| 5 | 1604460401 | 13.13 | 15.89 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035004 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C0VY | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 2607329151 | 7.32 | 8.86 | |
| Brush Plate | ||||
| 16 | 2605807124 | 16.79 | 20.32 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601111965 | 1.49 | 1.80 | |
| Switch Cover | ||||
| 21 | 2605500196 | 2.40 | 2.90 | |
| Countersunk-Head Screw | ||||
| 22 | 2910541050 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 26 | 2603490024 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 29 | 2601328092 | 5.81 | 7.03 | |
| Rubber Buffer | ||||
| 31 | 2602391004 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 38 | 2603490023 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 47 | 2605132073 | 12.82 | 15.51 | |
| Belt holder clip | ||||
| 70 | 2601329127 | 4.18 | 5.06 | |
| Hopper | ||||
| 800 | 2607020396 | 155.51 | 188.17 | |
| Armature | ||||
| 803 | 2604011941 | 67.98 | 82.26 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A1XZ | 0.83 | 1.00 | |
| Carbon-Brush Set | ||||
| 810 | 2604321943 | 9.67 | 11.70 | |
| Gear Unit | ||||
| 830 | 2606200268 | 80.26 | 97.11 | |
| Seal | ||||
| 841 | 2601015097 | 3.44 | 4.16 | |
| Depth-Gauge | ||||
| 870 | 2600460049 | 14.94 | 18.08 | |
| Seal Ring | ||||
| 870/78 | 3600290502 | 3.44 | 4.16 | |
| Depth-Gauge | ||||
| 871 | 2600460050 | 14.94 | 18.08 | |
| Toolholder | ||||
| 887 | 3603008500 | 13.13 | 15.89 | |
