Here you will find all available parts and drawings of the 'Bosch 0601423760 ( GSR6-20TE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

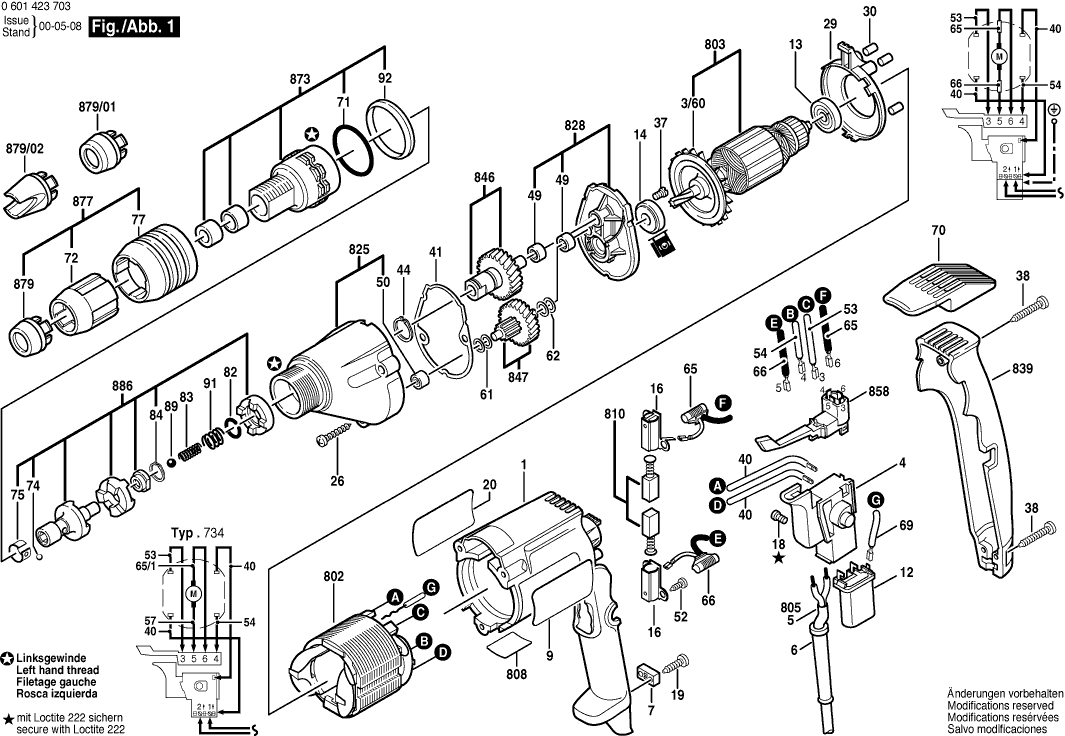

Technical drawing of model Bosch 0601423760 ( GSR6-20TE )

Spare parts list of model Bosch 0601423760 ( GSR6-20TE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 2605104332 13.93 16.86
Fan
3/60 2606610029 1.94 2.35
Switch
4 2607200202 33.45 40.47
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 2601116666 2.24 2.71
No longer available, no replacement
12 2607329114
Ball Bearing 7x22x7
13 1900905018 13.93 16.86
Ball Bearing 9x24x7
14 2600905095 9.53 11.53
Brush Holder
16 2604337003 1.70 2.06
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Manufacturer's nameplate
20 9920490119 2.71 3.28
Torx Oval-Head Screw 4x30
26 2603490025 0.83 1.00
Cover Disc
29 2601328046 2.24 2.71
Rubber Buffer
30 3602391503 1.70 2.06
Thread-forming tap. Screw M4x8
37 2603410048 1.18 1.43
Torx Oval-Head Screw 4x20
38 2603490023 0.83 1.00
Cable L=130 MM WHITE
40 2604448005 1.18 1.43
Flat Seal Ring
41 3601016502 3.31 4.01
Spring retaining ring DIN 471-12x1-FSt
44 2916650003 1.18 1.43
Needle bearing
49 2600917004 2.71 3.28
Needle bearing Ø6/12 MM
50 2600914017 8.45 10.22
Torx Oval-Head Screw 3x10
52 2603490017 1.70 2.06
Connecting Cable L=98 MM BLACK
53 2604448074 1.70 2.06
Connecting Cable L=68 MM WHITE
54 2604448100 0.83 1.00
Shim 0,3 MM
61 2600100607 1.18 1.43
Shim 0,5 MM
62 2600100628 1.18 1.43
Suppression Filter L=148 MM BLACK
65 2604465086 4.70 5.69
Suppression Filter L=126 MM WHITE
66 2604465097 4.70 5.69
Earth Conductor
69 2604448097 1.18 1.43
Clip BLACK
70 3600690503 7.58 9.17
O-Ring
71 2600210043 1.18 1.43
Spacer Sleeve BLACK
72 3600360505 7.58 9.17
Ball DIN 5401-3,5 MM-III-ST
74 1903230006 1.70 2.06
Ball Support
75 3600034504 2.71 3.28
Locking Ring BLACK
77 3600390502 4.70 5.69
Retaining ring
82 3600200516 0.83 1.00
Spring
83 3604613507 0.83 1.00
Spring retaining ring
84 3600118502 1.94 2.35
Ball DIN 5401-6 G28
89 1903230011 1.94 2.35
Spring
91 3604613506 0.83 1.00
Insulating Sleeve GRAY
92 3600113506 1.18 1.43
Field 220-240V
802 1604220254 18.19 22.01
No longer available, no replacement
803 2604010739
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 2604321905 8.45 10.22
Gear Housing
825 3605190526 36.85 44.59
Bearing Bracket
828 3605806537 23.75 28.74
Housing Cover BLUE
839 2605132050 7.58 9.17
Drive Shaft Z=32
846 3606120567 33.45 40.47
Toothed Shaft Z=14/31
847 3606319525 29.75 36.00
Change-Over Switch
858 2607200231 12.41 15.02
Clutch
873 3605190522 20.42 24.71
Sleeve BLACK
877 3600552510 20.42 24.71
No longer available, no replacement
879 3600552507
No longer available, no replacement
879/01 3600552506
No longer available, no replacement
879/02 2607000160
Clutch
886 3606441503 60.65 73.39
