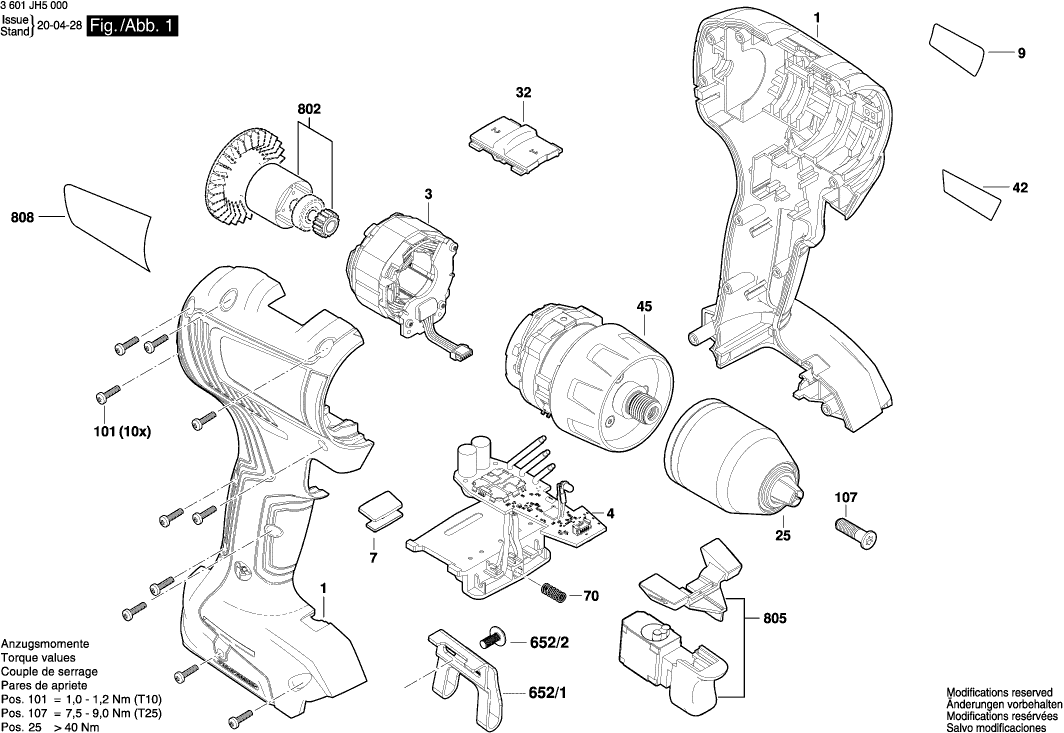

Technical drawing of model Bosch 3601JH5200 (GSR18V-55)
Spare parts list of model Bosch 3601JH5200 (GSR18V-55)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16058065S4 | 18.94 | 22.92 | |
| Stator | ||||
| 3 | 1600A016YW | 21.30 | 25.77 | |
| Electronics Module | ||||
| 4 | 16072335FX | 52.45 | 63.46 | |
| Lens | ||||
| 7 | 2609100858 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C36G | 2.40 | 2.90 | |
| Keyless Chuck | ||||
| 25 | 2609111944 | 50.23 | 60.78 | |
| Keyless Chuck | ||||
| 25 | 1600A02N9H | 34.82 | 42.13 | |
| Switchover Unit | ||||
| 32 | 2609199812 | 2.40 | 2.90 | |
| Sticker | ||||
| 42 | 160111C2TS | 2.40 | 2.90 | |
| Gear Box | ||||
| 45 | 1600A0160R | 37.50 | 45.38 | |
| Compression Spring | ||||
| 70 | 1609280477 | 1.49 | 1.80 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 126.98 | 153.65 | |
| Battery Pack | ||||
| 91 | 1607A350M0 | 110.30 | 133.46 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 91 | 1607A350MA | 82.63 | 99.98 | |
| ACCUPAKKET | ||||
| 91 | 1607A350BG | 82.63 | 99.98 | |
| Battery Pack | ||||
| 91 | 1617S020T1 | 80.26 | 97.11 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421229 | 1.49 | 1.80 | |
| Clip | ||||
| 652/1 | 2609111584 | 3.44 | 4.16 | |
| Screw | ||||
| 652/2 | 2609110834 | 1.49 | 1.80 | |
| Fast Charger | ||||
| 653 | 2607226251 | 75.38 | 91.21 | |
| Fast Charger GB GAL 18V-40 | ||||
| 653 | 2607226253 | 71.68 | 86.73 | |
| Motor Spare Parts Set | ||||
| 802 | 1607000DM8 | 18.94 | 22.92 | |
| Switch | ||||
| 805 | 1607000E18 | 7.46 | 9.03 | |
| Nameplate | ||||
| 808 | 160111A94N | 3.44 | 4.16 | |
