Here you will find all available parts and drawings of the 'Bosch 3601JK3200 ( GSR18V-45 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

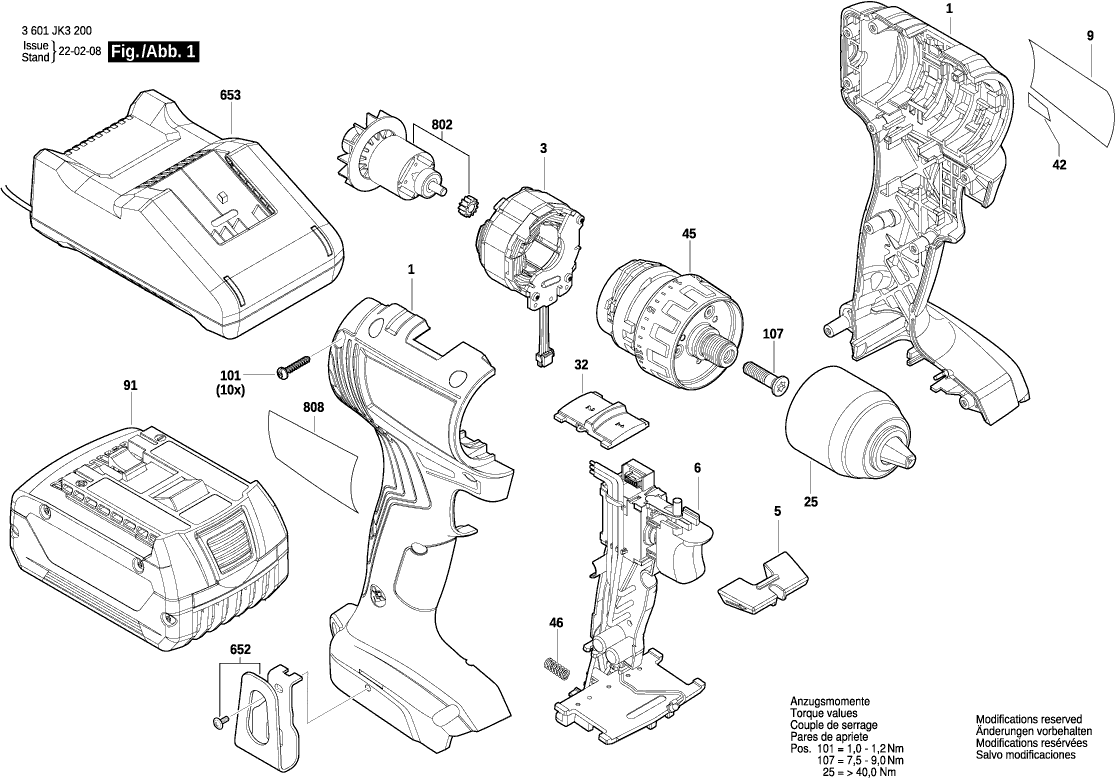

Technical drawing of model Bosch 3601JK3200 ( GSR18V-45 )
Spare parts list of model Bosch 3601JK3200 ( GSR18V-45 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 160580662H | 11.88 | 14.37 | |
| Stator | ||||
| 3 | 1619P15696 | 18.19 | 22.01 | |
| Changeover Lever | ||||
| 5 | 1600A01Z04 | 1.94 | 2.35 | |
| Electronics Module | ||||
| 6 | 2607202513 | 44.82 | 54.23 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C4DF | 1.94 | 2.35 | |
| Keyless Chuck | ||||
| 25 | 2609111944 | 44.82 | 54.23 | |
| Switchover Unit | ||||
| 32 | 1600A0291C | 1.18 | 1.43 | |
| Sticker | ||||
| 42 | 160111C49H | 1.94 | 2.35 | |
| Gear Box | ||||
| 45 | 1600A02659 | 26.84 | 32.48 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Battery Pack KOR GBA 18V 2.0Ah | ||||
| 91 | 1607A350MC | 73.72 | 89.20 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Clip | ||||
| 652 | 1600A027W3 | 1.94 | 2.35 | |
| Fast Charger | ||||
| 653 | 2607226293 | 55.25 | 66.85 | |
| Rotor | ||||
| 802 | 1607000EC2 | 15.71 | 19.01 | |
| Manufacturer's nameplate | ||||
| 808 | 160111C4DE | 2.71 | 3.28 | |
