Here you will find all available parts and drawings of the 'Bosch 0601912320 ( GSR18VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

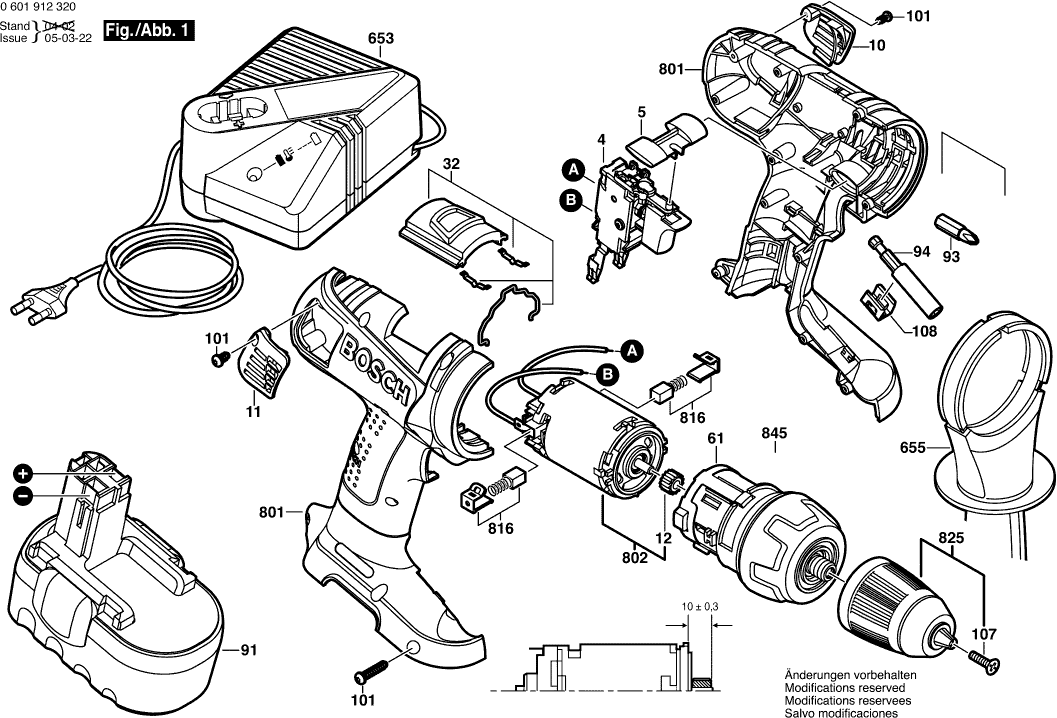

Technical drawing of model Bosch 0601912320 ( GSR18VE-2 )
Spare parts list of model Bosch 0601912320 ( GSR18VE-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200457 | 55.25 | 66.85 | |
| Adjusting Slide RED | ||||
| 5 | 2601099112 | 1.94 | 2.35 | |
| Cover BLACK | ||||
| 10 | 2600508051 | 2.24 | 2.71 | |
| Cover BLACK | ||||
| 11 | 2600508052 | 2.24 | 2.71 | |
| Pinion | ||||
| 12 | 2606316223 | 5.33 | 6.45 | |
| Adjusting Slide | ||||
| 32 | 2601099127 | 3.31 | 4.01 | |
| Support | ||||
| 61 | 2608040190 | 7.58 | 9.17 | |
| Slide-In Accu Package 18V,2,0Ah,NiCd | ||||
| 91 | 2607335265 | 233.78 | 282.87 | |
| Slide-In Battery Pack 18V, 2,6Ah, NiMH, HD | ||||
| 91 | 2607335687 | 233.78 | 282.87 | |
| Slide-In Accu Package 18V, 2,0Ah, NiCd | ||||
| 91 | 2607335735 | 209.26 | 253.20 | |
| No longer available, no replacement | ||||
| 93 | 2607000366 | |||
| Toolholder | ||||
| 94 | 2607001438 | 3.31 | 4.01 | |
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Spring Element | ||||
| 108 | 2604690027 | 0.83 | 1.00 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225027 | 113.29 | 137.08 | |
| Fast Charger GB 230/7,2-24V, 30 MIN. | ||||
| 653 | 2607225029 | 101.94 | 123.35 | |
| Fast Charger AUS 240/7,2-24V, 1h | ||||
| 653 | 2607224429 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| Auxiliary Handle | ||||
| 655 | 2602025135 | 15.71 | 19.01 | |
| Housing Section BLUE | ||||
| 801 | 2605105909 | 33.45 | 40.47 | |
| DC motor 18V | ||||
| 802 | 2607022865 | 101.94 | 123.35 | |
| Carbon-Brush Set 10 x 2 607 034 904 | ||||
| 816 | 1607000488 | 73.72 | 89.20 | |
| No longer available, no replacement | ||||
| 825 | 2608572900 | |||
| Planetary Gear Train | ||||
| 845 | 2606200930 | 101.94 | 123.35 | |
