Here you will find all available parts and drawings of the 'Bosch 3601JD9100 ( GSR18VE-2-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

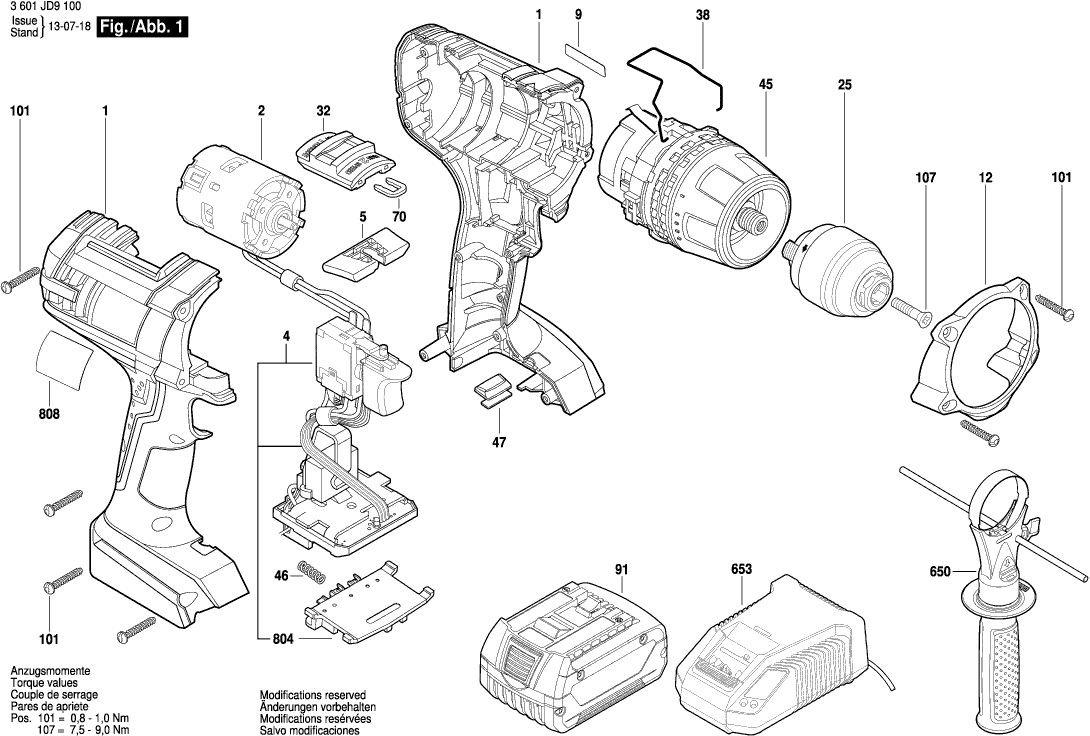

Technical drawing of model Bosch 3601JD9100 ( GSR18VE-2-LI )
Spare parts list of model Bosch 3601JD9100 ( GSR18VE-2-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2609100874 | 26.84 | 32.48 | |
| DC motor 18V | ||||
| 2 | 1607022609 | 60.65 | 73.39 | |
| Electronics Module | ||||
| 4 | 1607233583 | 81.47 | 98.58 | |
| Adjusting lever | ||||
| 5 | 2609100877 | 0.83 | 1.00 | |
| Manufacturer's nameplate GSR 18 VE-2-LI | ||||
| 9 | 2609134989 | 1.94 | 2.35 | |
| Front Cap | ||||
| 12 | 2609111024 | 5.33 | 6.45 | |
| Keyless Chuck | ||||
| 25 | 2609111104 | 49.56 | 59.97 | |
| Adjusting lever | ||||
| 32 | 2609100878 | 1.18 | 1.43 | |
| Switch Spring | ||||
| 38 | 2609111021 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 2609199674 | 113.29 | 137.08 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609101350 | 4.10 | 4.96 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 91 | 1607A350M0 | 91.56 | 110.79 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Auxiliary Handle | ||||
| 650 | 2609199662 | 15.71 | 19.01 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 1600A00Z2J | 1.94 | 2.35 | |
