Here you will find all available parts and drawings of the 'Bosch 3601J95300 (GSR18V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

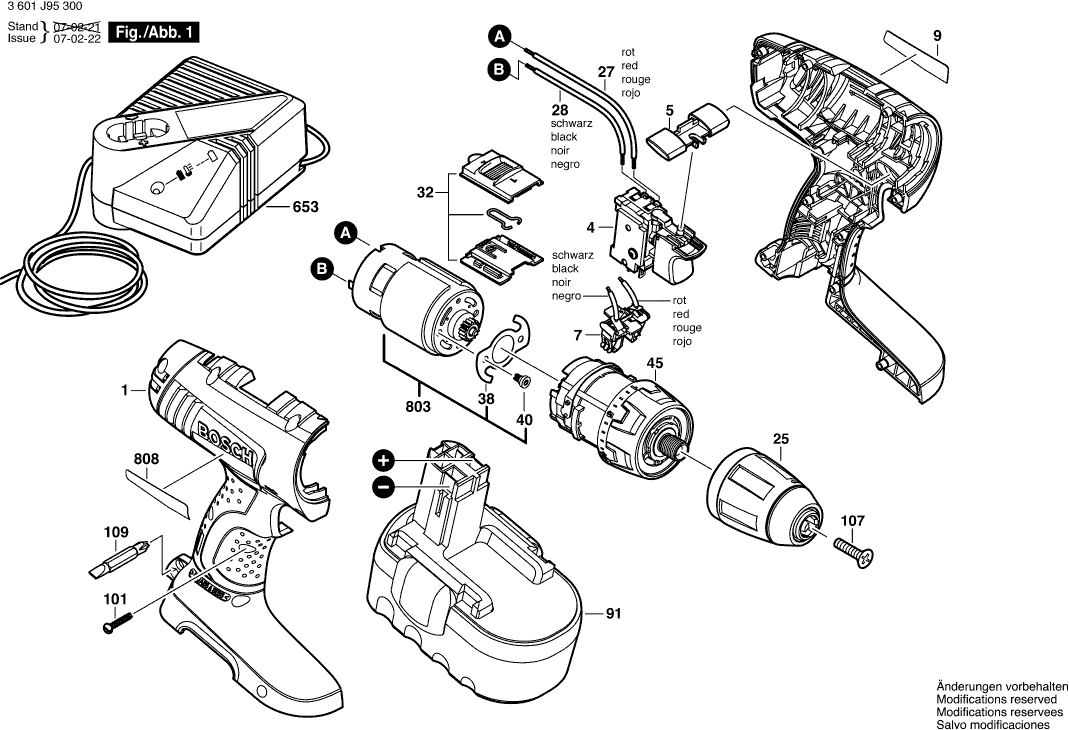

Technical drawing of model Bosch 3601J95300 (GSR18V)
Spare parts list of model Bosch 3601J95300 (GSR18V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 2609100503 | |||
| No information available, not orderable | ||||
| 4 | 2607202015 | |||
| Reverse-Transfer Lever | ||||
| 5 | 2609100504 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 7 | 2609199125 | |||
| No information available, not orderable | ||||
| 9 | 2609131286 | |||
| No information available, not orderable | ||||
| 25 | 2609110660 | |||
| No information available, not orderable | ||||
| 27 | 2609120264 | |||
| Connecting Cable | ||||
| 28 | 2609120263 | 1.00 | 1.21 | |
| Slide Switch | ||||
| 32 | 2609199119 | 2.86 | 3.46 | |
| Tab Washer | ||||
| 38 | 2609110633 | 1.49 | 1.80 | |
| Screw | ||||
| 40 | 2609110634 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 45 | 2609199343 | |||
| No information available, not orderable | ||||
| 91 | 2607335735 | |||
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Pan head screw | ||||
| 107 | 2609110635 | 1.49 | 1.80 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 3.44 | 4.16 | |
| DC motor | ||||
| 803 | 2609199128 | 52.45 | 63.46 | |
| No information available, not orderable | ||||
| 808 | 2609131300 | |||
