Here you will find all available parts and drawings of the 'Bosch 3601JC8000 ( GSR18V-ECTE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

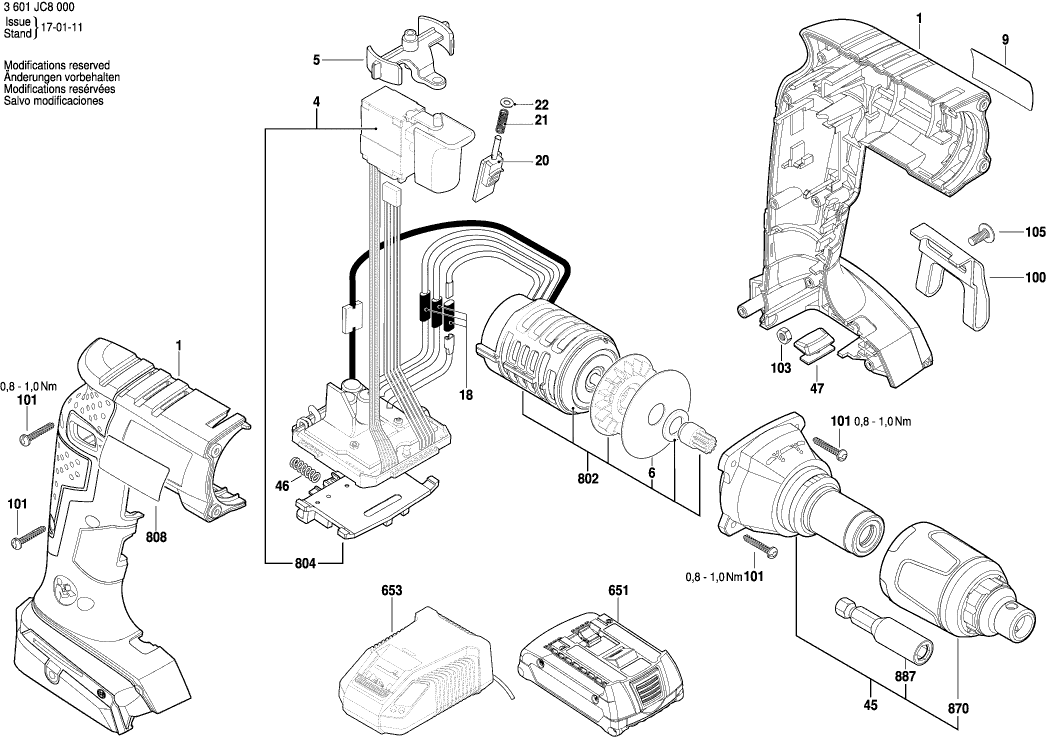

Technical drawing of model Bosch 3601JC8000 ( GSR18V-ECTE )
Spare parts list of model Bosch 3601JC8000 ( GSR18V-ECTE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101084 | 20.42 | 24.71 | |
| Electronics Module | ||||
| 4 | 16072335JG | 101.94 | 123.35 | |
| Adjusting lever | ||||
| 5 | 2609101086 | 0.83 | 1.00 | |
| Friction Washer | ||||
| 6 | 2609111419 | 0.83 | 1.00 | |
| Manufacturer's nameplate GSR 18 V-EC TE | ||||
| 9 | 2609133463 | 1.94 | 2.35 | |
| Shrinkable Tube | ||||
| 18 | 2609170212 | 1.18 | 1.43 | |
| Switch Slide | ||||
| 20 | 2609101085 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 21 | 2609111418 | 0.83 | 1.00 | |
| Shim ring | ||||
| 22 | 2916190004 | 1.70 | 2.06 | |
| Gear Unit | ||||
| 45 | 2609199482 | 73.72 | 89.20 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609101350 | 4.10 | 4.96 | |
| Clip | ||||
| 100 | 2609110956 | 5.83 | 7.05 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 1.70 | 2.06 | |
| Nut | ||||
| 103 | 2609110835 | 1.18 | 1.43 | |
| Screw | ||||
| 105 | 2609110834 | 1.18 | 1.43 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 651 | 1607A350M0 | 91.56 | 110.79 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 651 | 2607336815 | 91.56 | 110.79 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| Motor Spare Parts Set | ||||
| 802 | 2609199599 | 187.62 | 227.02 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 1600A00Z28 | 1.94 | 2.35 | |
| Depth-Gauge | ||||
| 870 | 2609199484 | 12.41 | 15.02 | |
| Toolholder | ||||
| 887 | 2609111664 | 18.19 | 22.01 | |
