Here you will find all available parts and drawings of the 'Bosch 3601JE6100 ( GSR18-2-LIPLUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

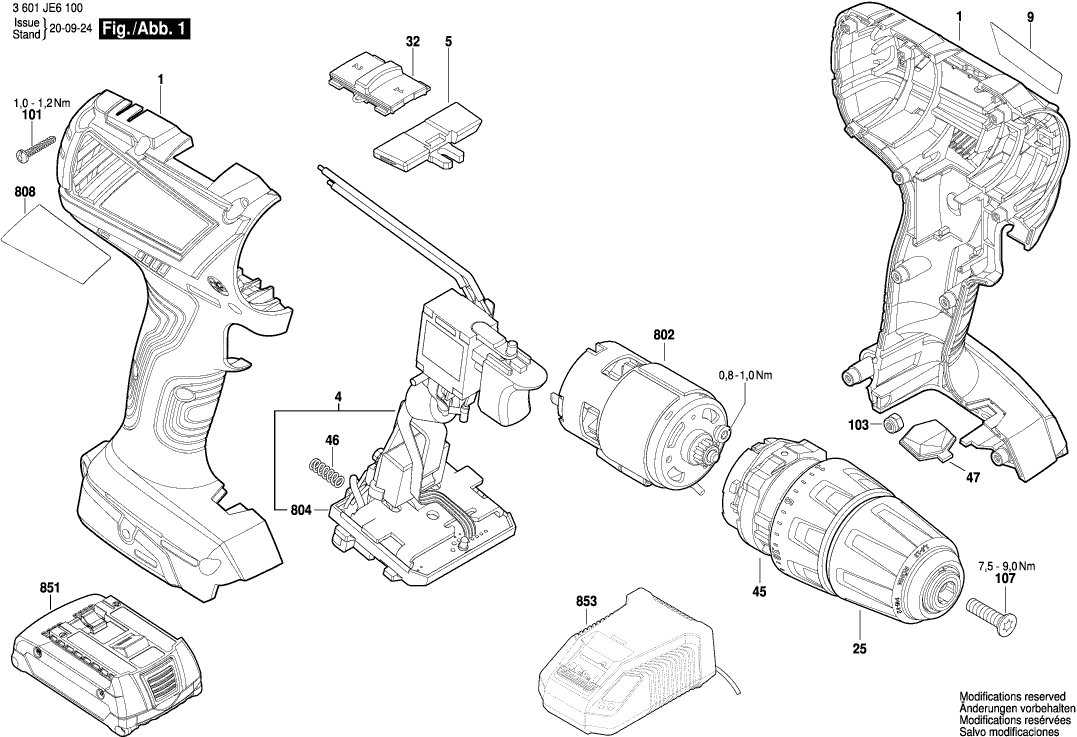

Technical drawing of model Bosch 3601JE6100 ( GSR18-2-LIPLUS )
Spare parts list of model Bosch 3601JE6100 ( GSR18-2-LIPLUS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101483 | 23.75 | 28.74 | |
| Electronics Module | ||||
| 4 | 160723359P | 55.25 | 66.85 | |
| Adjusting lever | ||||
| 5 | 2609101484 | 1.70 | 2.06 | |
| Manufacturer's nameplate GSR 18-2-LI Plus | ||||
| 9 | 2609136296 | 1.94 | 2.35 | |
| Keyless Chuck | ||||
| 25 | 2609111940 | 26.84 | 32.48 | |
| Switchover Unit | ||||
| 32 | 2609199812 | 1.94 | 2.35 | |
| Gear Box | ||||
| 45 | 1600A01VY4 | 33.45 | 40.47 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609101486 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110353 | 1.70 | 2.06 | |
| Nut | ||||
| 103 | 2609110835 | 1.18 | 1.43 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| DC motor | ||||
| 802 | 2609199841 | 44.82 | 54.23 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 1600A00Z0P | 1.94 | 2.35 | |
| Slide-In Accu Package 18V, 1,5Ah LI, MS | ||||
| 851 | 2607336803 | 113.29 | 137.08 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 851 | 2607337069 | 101.94 | 123.35 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 851 | 1607A350B2 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 2.0Ah | ||||
| 851 | 1607A350MA | 73.72 | 89.20 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 853 | 2607225921 | 101.94 | 123.35 | |
| Charger EU GAX 18V-30 230/10,8-18V 1h | ||||
| 853 | 2607225991 | 81.47 | 98.58 | |
| Fast Charger 10,8V-18V EU | ||||
| 853 | 2607225423 | 63.33 | 76.63 | |
| Fast Charger GB 230/10,8-18V, 1h | ||||
| 853 | 2607225425 | 60.65 | 73.39 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 853 | 2607226281 | 55.25 | 66.85 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 853 | 2607225321 | 55.25 | 66.85 | |
