Here you will find all available parts and drawings of the 'Bosch 3601J93400 ( GSR14,4VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

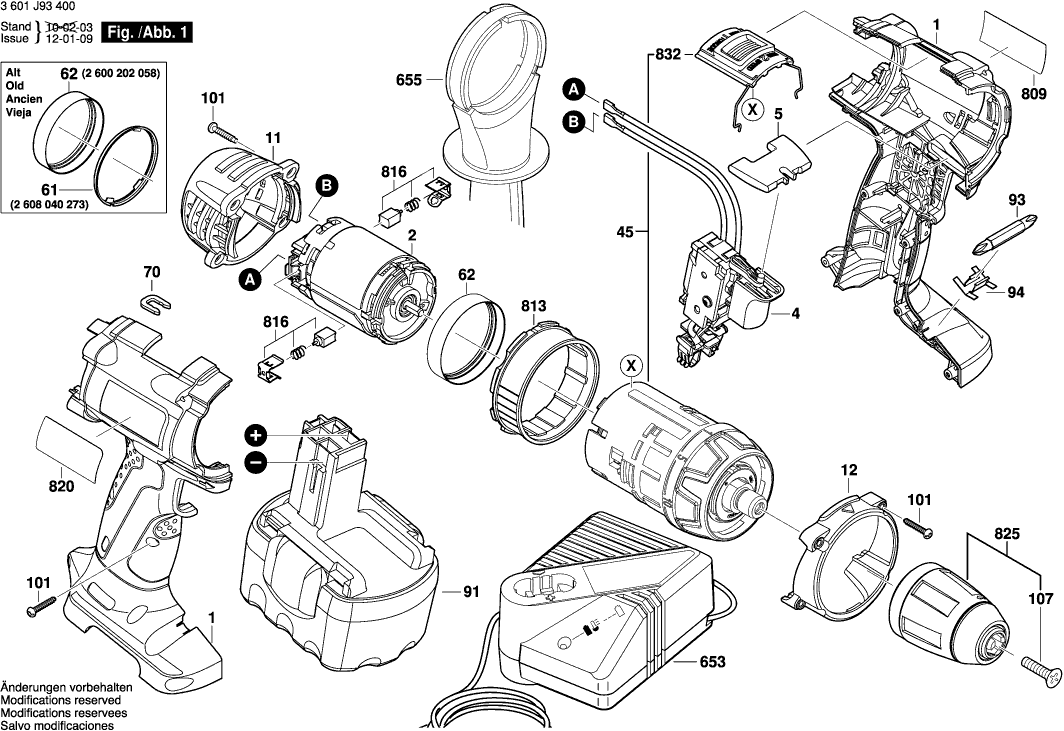

Technical drawing of model Bosch 3601J93400 ( GSR14,4VE-2 )

Spare parts list of model Bosch 3601J93400 ( GSR14,4VE-2 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605105101 20.42 24.71
No longer available, no replacement
2 2607022319
Electronics Module
4 2607230121 49.56 59.97
Adjusting lever RED
5 2601099155 0.83 1.00
End cap BLACK
11 2600508064 1.94 2.35
Front Cap
12 2600510011 1.94 2.35
Planetary Gear Train
45 2606200260 101.94 123.35
Retaining snap ring
62 2600202067 5.33 6.45
Pickup Clip
70 2601250009 1.18 1.43
Slide-In Accu Package 14,4V,3,0Ah,NiMh
91 2607335693 342.01 413.83
Slide-In Accu Package 14,4V, 2,6Ah, NiMH
91 2607335685 113.29 137.08
Screwdriver Blade 6 MM
93 1609200147 2.71 3.28
Spring Element
94 2604690043 0.83 1.00
Torx Oval-Head Screw 3x18
101 2603490018 0.83 1.00
Countersunk-Head Screw M6x23 LEFTHAND THREADS
107 2603421229 1.18 1.43
Fast Charger AUS 240/7,2-14,4V, 30 MIN.
653 2607224705 130.32 157.69
Fast Charger EU 230/7,2-14,4V, 30 MIN.
653 2607224701 101.94 123.35
Fast Charger GB 230/7,2-14,4V, 30 MIN.
653 2607224703 101.94 123.35
Fast Charger ROK 220/7,2-14,4V, 30 MIN.
653 2607224713 91.56 110.79
Auxiliary Handle
655 2602025158 10.73 12.98
Manufacturer's nameplate GSR 14,4 VE-2
809 2601115002 0.83 1.00
Locating ring
813 2600510012 2.71 3.28
Carbon-Brush Set 10 x 2 607 034 904
816 1607000488 73.72 89.20
Nameplate
820 2601115003 1.94 2.35
Keyless Chuck
825 2608572901 55.25 66.85
Adjusting lever
832 2601099213 6.54 7.91
