Here you will find all available parts and drawings of the 'Bosch 3601J95401 ( GSR14,4V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

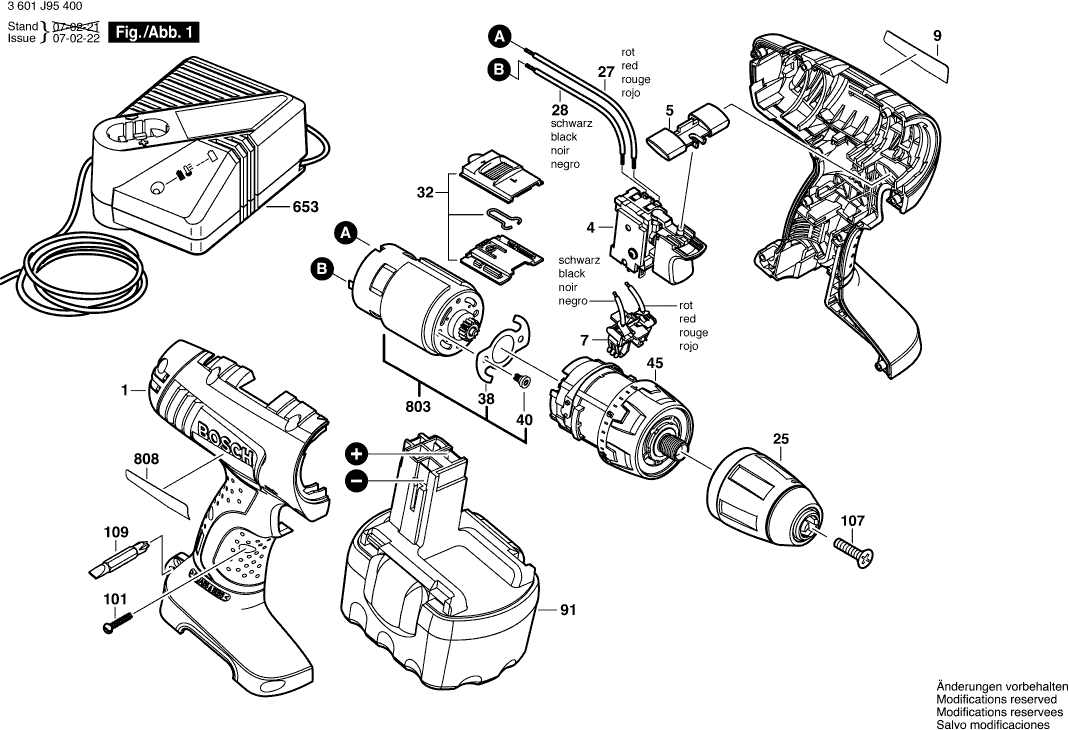

Technical drawing of model Bosch 3601J95401 ( GSR14,4V )

Spare parts list of model Bosch 3601J95401 ( GSR14,4V )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing
1 2609100502 18.19 22.01
Switch BLACK
4 2607202014 33.45 40.47
Reverse-Transfer Lever
5 2609100504 0.83 1.00
Contact retainer RED
7 2609199125 1.94 2.35
Manufacturer's nameplate GSR 14,4V
9 2609131282 1.94 2.35
No longer available, no replacement
25 1600A00XH5
Connecting Cable RED
27 2609120264 0.83 1.00
Connecting Cable BLACK
28 2609120263 0.83 1.00
Slide Switch
32 2609199119 2.24 2.71
Tab Washer
38 2609110633 1.18 1.43
Screw
40 2609110634 0.83 1.00
No longer available, no replacement
45 2609199343
Slide-In Battery Pack 14,4V, 2,0Ah, NiMH
91 2607335699 168.86 204.32
Slide-In Accu Package 14,4V,2,0Ah,NiCd
91 2607335263 168.86 204.32
Slide-In Accu Package 14,4V, 2,6Ah, NiMH
91 2607335685 113.29 137.08
Torx Flat-Head Screw 3x16
101 2609110201 1.70 2.06
Pan head screw M 6x30
107 2609110635 1.18 1.43
Screwdriver Bit
109 2609160063 2.71 3.28
Fast Charger EU 230/7,2-24V, 1h
653 2607224425 130.32 157.69
Fast Charger GB 230/7,2-24V, 1h
653 2607224427 91.56 110.79
DC motor 14,4V
803 2609199127 40.61 49.14
Nameplate
808 2609135895 1.70 2.06
