Here you will find all available parts and drawings of the 'Bosch 3601J95400 ( GSR14,4V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

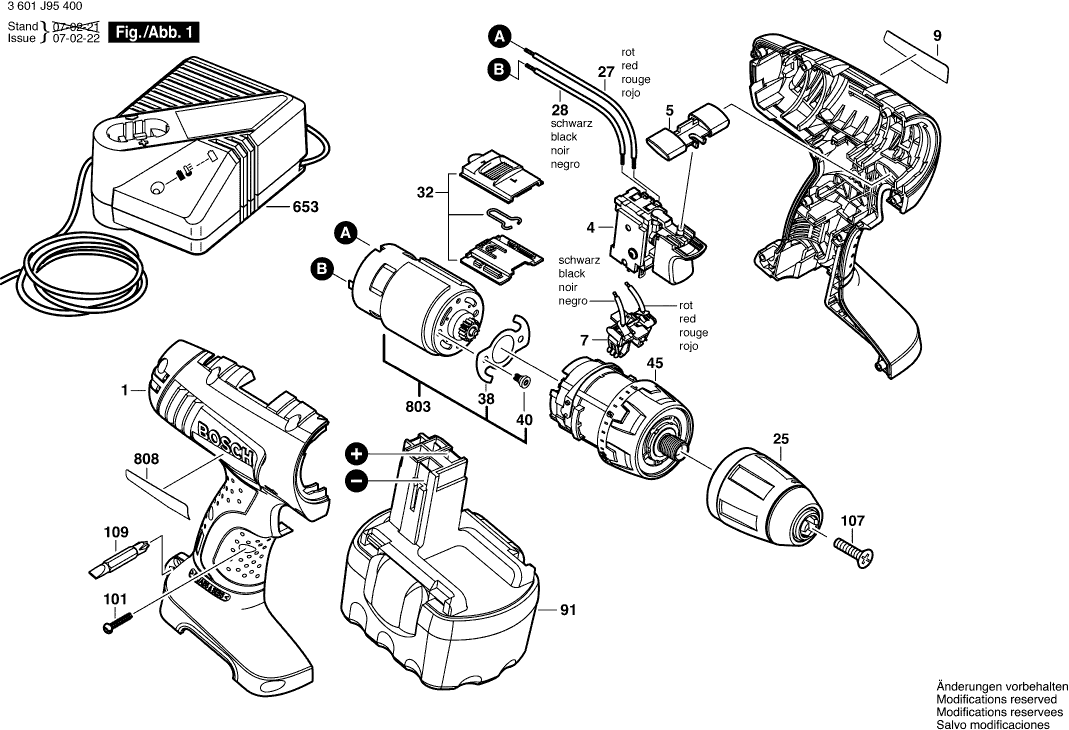

Technical drawing of model Bosch 3601J95400 ( GSR14,4V )
Spare parts list of model Bosch 3601J95400 ( GSR14,4V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100502 | 18.19 | 22.01 | |
| Switch BLACK | ||||
| 4 | 2607202014 | 33.45 | 40.47 | |
| Reverse-Transfer Lever | ||||
| 5 | 2609100504 | 0.83 | 1.00 | |
| Contact retainer RED | ||||
| 7 | 2609199125 | 1.94 | 2.35 | |
| Manufacturer's nameplate GSR 14,4V | ||||
| 9 | 2609131282 | 1.94 | 2.35 | |
| Keyless Chuck 10 MM | ||||
| 25 | 2609110660 | 40.61 | 49.14 | |
| Connecting Cable RED | ||||
| 27 | 2609120264 | 0.83 | 1.00 | |
| Connecting Cable BLACK | ||||
| 28 | 2609120263 | 0.83 | 1.00 | |
| Slide Switch | ||||
| 32 | 2609199119 | 2.24 | 2.71 | |
| Tab Washer | ||||
| 38 | 2609110633 | 1.18 | 1.43 | |
| Screw | ||||
| 40 | 2609110634 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 45 | 2609199343 | |||
| Slide-In Accu Package 14,4V,2,0Ah,NiCd | ||||
| 91 | 2607335263 | 168.86 | 204.32 | |
| Slide-In Battery Pack 14,4V, 2,0Ah, NiMH | ||||
| 91 | 2607335699 | 168.86 | 204.32 | |
| Slide-In Accu Package 14,4V,2,0Ah,NiCd | ||||
| 91 | 2607335743 | 148.65 | 179.87 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Pan head screw M 6x30 | ||||
| 107 | 2609110635 | 1.18 | 1.43 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger USA 120/7,2-24V, 1h | ||||
| 653 | 2607224431 | 130.32 | 157.69 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 653 | 2607224443 | 81.47 | 98.58 | |
| Fast Charger BR 220/7,2-24V, 1h | ||||
| 653 | 2607224983 | 81.47 | 98.58 | |
| DC motor 14,4V | ||||
| 803 | 2609199127 | 40.61 | 49.14 | |
| Nameplate | ||||
| 808 | 2609135893 | 1.94 | 2.35 | |
