Here you will find all available parts and drawings of the 'Bosch 3601J18G00 ( GSR14,4-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

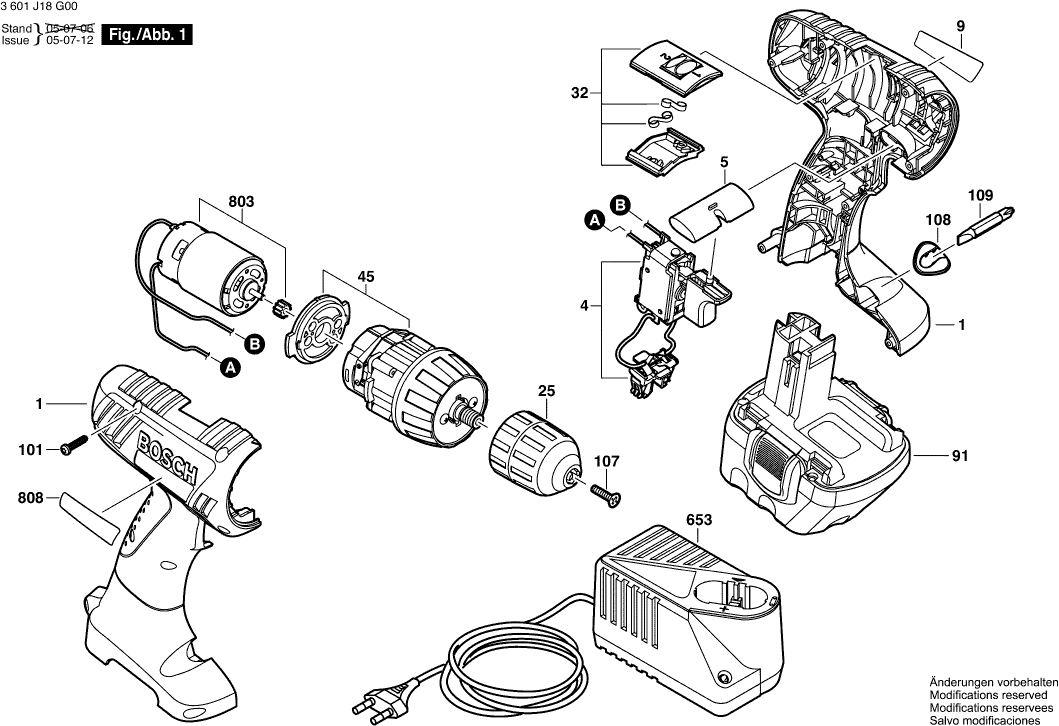

Technical drawing of model Bosch 3601J18G00 ( GSR14,4-2 )
Spare parts list of model Bosch 3601J18G00 ( GSR14,4-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100626 | 23.75 | 28.74 | |
| On-Off Switch | ||||
| 4 | 2609199070 | 36.85 | 44.59 | |
| Button | ||||
| 5 | 2609100744 | 1.18 | 1.43 | |
| Manufacturer's nameplate GSR 14,4-2 | ||||
| 9 | 2609130867 | 2.24 | 2.71 | |
| Keyless Chuck Ø1,0-10 MM, 3/8 | ||||
| 25 | 2609110495 | 36.85 | 44.59 | |
| Regulator | ||||
| 32 | 2609120202 | 5.83 | 7.05 | |
| Gear Box | ||||
| 45 | 2609110493 | 29.75 | 36.00 | |
| Slide-In Accu Package 14,4V,2,0Ah,NiCd | ||||
| 91 | 2607335263 | 168.86 | 204.32 | |
| Slide-In Battery Pack 14,4V, 2,0Ah, NiMH | ||||
| 91 | 2607335699 | 168.86 | 204.32 | |
| Accumulator Battery 14,4V, 1,5Ah, NiCd | ||||
| 91 | 1617S0004W | 113.29 | 137.08 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Toolholder | ||||
| 108 | 2607001443 | 1.70 | 2.06 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger GB 230/7,2-14,4V, 1h | ||||
| 653 | 2607224393 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 653 | 2607224443 | 81.47 | 98.58 | |
| Fast Charger EU 230/7,2-14,4V, 1h | ||||
| 653 | 2607224391 | 55.25 | 66.85 | |
| DC motor | ||||
| 803 | 2609120622 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 2609135871 | 1.70 | 2.06 | |
