Here you will find all available parts and drawings of the 'Bosch 3601JB7400 ( GSR14,4-2-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

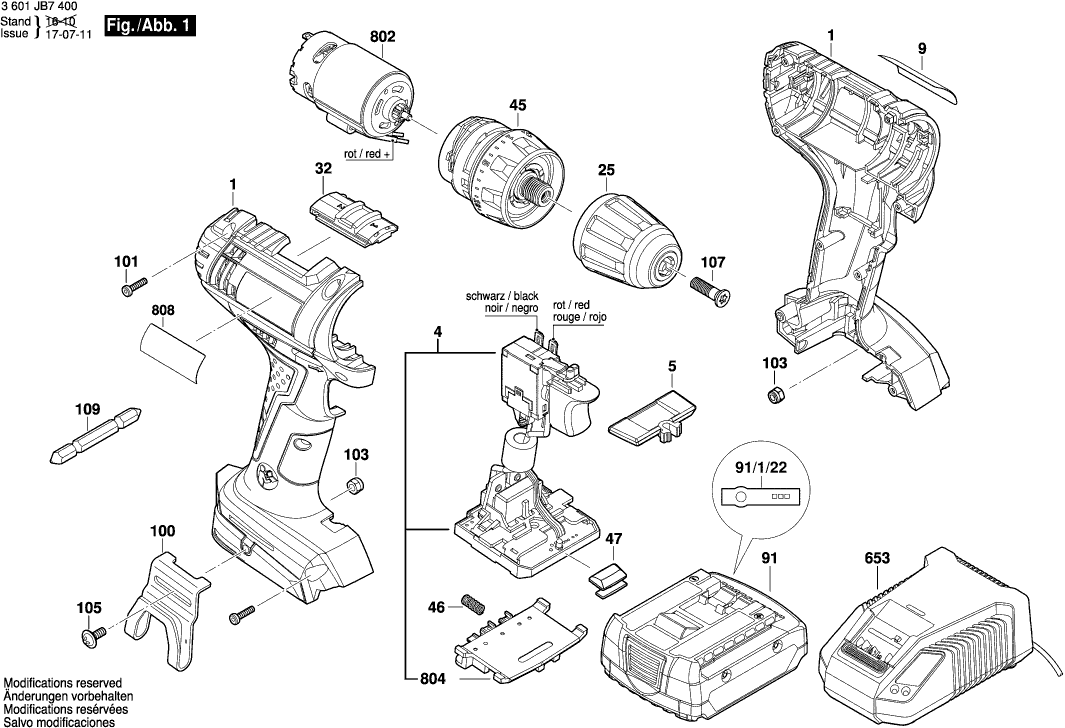

Technical drawing of model Bosch 3601JB7400 ( GSR14,4-2-LI )
Spare parts list of model Bosch 3601JB7400 ( GSR14,4-2-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing BLUE | ||||
| 1 | 2609101065 | 26.84 | 32.48 | |
| Electronics Module | ||||
| 4 | 1607233543 | 81.47 | 98.58 | |
| Adjusting lever | ||||
| 5 | 2609101009 | 1.70 | 2.06 | |
| Manufacturer's nameplate GSR 14,4-2-LI | ||||
| 9 | 2609133813 | 1.94 | 2.35 | |
| Keyless Chuck | ||||
| 25 | 2609111562 | 26.84 | 32.48 | |
| Switchover Unit | ||||
| 32 | 2609199279 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 2609199786 | 29.75 | 36.00 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Lens | ||||
| 47 | 2609100858 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 91 | 1607A350B9 | |||
| Sticker | ||||
| 91/1/22 | 2601115537 | 1.18 | 1.43 | |
| Clip | ||||
| 100 | 2609110956 | 5.83 | 7.05 | |
| Screw | ||||
| 101 | 2609110538 | 1.70 | 2.06 | |
| Nut | ||||
| 103 | 2609110835 | 1.18 | 1.43 | |
| Screw | ||||
| 105 | 2609110834 | 1.18 | 1.43 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Screwdriver Blade | ||||
| 109 | 2609110342 | 1.94 | 2.35 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Fast Charger GB 230/10,8-18V, 1h | ||||
| 653 | 2607225425 | 60.65 | 73.39 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| DC motor 14,4V-18V | ||||
| 802 | 2609199591 | 40.61 | 49.14 | |
| Contact retainer | ||||
| 804 | 1609280474 | 11.88 | 14.37 | |
| Nameplate | ||||
| 808 | 1600A00Z2D | 1.94 | 2.35 | |
